Bilstein 4600 Series Shock Absorber – 24-265966

Bilstein

$109.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein B6 4600 front coilover shock absorber, part number BIL24-265966
  • Snap ring grooved body with a 46 mm body diameter; springs not included
  • Fits 2016–2023 Tacoma Limited, SR, SR5, TRD Off-Road, TRD Sport and Trail

Description

Overview

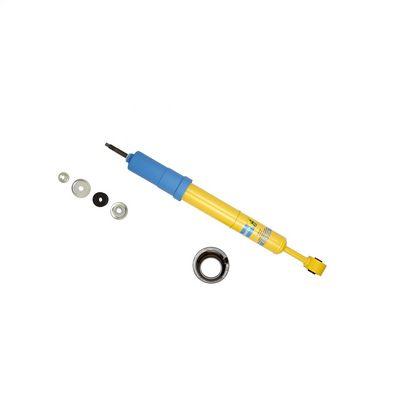

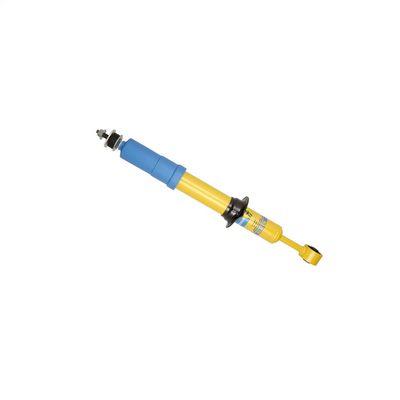

The Bilstein B6 4600 front coilover shock absorber, part number BIL24-265966, is a monotube shock for the 2016 to 2023 Toyota Tacoma. It is sold without springs, and the body has a snap ring groove so the spring seat can be located on it.

The monotube construction gives consistent, fade free performance, and the shock is tuned for each application to improve ride, handling and comfort over the original. It is a direct fit upgrade for the original shocks on stock height light trucks and SUVs.

The piston is a velocity sensitive digressive design that responds to changing road conditions. The shock is gas charged with a 46 mm body.

Key features

  • Front coilover shock absorber
  • Snap ring grooved body design
  • 46 mm body diameter
  • Monotube design with consistent performance
  • Velocity sensitive digressive piston
  • Gas charged construction

Spring and seat matching

A coilover shock has its spring seat located on the shock body, so the spring and shock work as one assembly. When springs are not included, the existing springs on the truck carry the load, and the seat has to sit correctly on the body for the spring to stay centered. Poor seating can cause rubbing and uneven ride height.

Before installing, inspect the old springs for sagging, cracked coils or broken seats, since a tired spring can make a new shock feel mismatched. Check that the snap ring sits fully in its groove and that the seat sits square. Replacing the front shocks together keeps the truck level and the steering consistent from side to side.

  • Check the spring for sag or cracks
  • Confirm the snap ring seats fully
  • Replace both front shocks together
  • Inspect the bump stop and mount bushings

Specifications

Brand Bilstein
Part number BIL24-265966
Shock series B6 4600 Series
Position Front
Shock type Monotube, coilover, gas charged
Body Snap ring grooved, 46 mm
Springs Not included
Fitment Direct fit

Vehicle fitment

It fits 2016–2023 Toyota Tacoma Limited, SR, SR5, TRD Off-Road, TRD Sport and Trail trim.

The list does not include the Tacoma from 2015 and earlier or from 2023 onward, the 4Runner, or the T100. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the springs are not included, the existing front springs are used with this coilover shock. Check that the spring seat and the snap ring match the spring on your truck before installing.

What’s included

The product is one front coilover shock absorber under part number BIL24-265966.

Not included: springs.

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2023Limited, SR, SR5, TRD Off-Road, TRD Sport, Trail

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the BIL24-265966 fit a 2019 Toyota Tacoma?

Yes. The list covers 2016 to 2023 Tacoma models in Limited, SR, SR5, TRD Off-Road, TRD Sport and Trail trim, so a 2019 model in one of those trims is listed. Confirm the trim before ordering.

Are springs included with this shock?

No. The shock is sold without springs, so the existing front springs on your truck are used with it. Check the spring seat before installing.

What is the snap ring groove for?

The groove holds a snap ring that locates the spring seat on the shock body. Check that the seat on your truck fits this groove before installing.

Can a shock without springs be used with a different spring?

Sometimes, but the spring must match the shock's seat and your goals for ride height. Changing spring rate or height alters how the shock works, so check fit and clearance before installing and confirm the setup with your installer.
