Overview

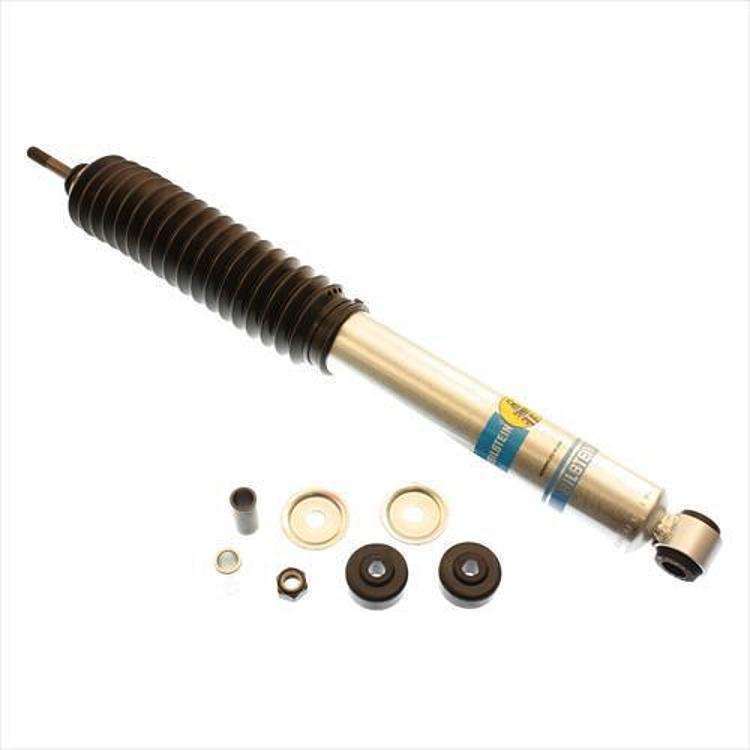

The Bilstein 5100 Series shock absorber, part number 24-065283, is a monotube gas-charged shock with a stem upper mount and a 16mm eye lower mount. It is for Ford Bronco and F-Series trucks in the years covered below. Its collapsed length is 13.27 in., its extended length is 21.52 in., and its travel length is 8.25 in.
Bilstein’s 5100 Series is built on a single tube design with high gas pressure, which the maker links to long life and steady damping. This version has a 46mm ID smooth non-coilover body, a 14mm shaft, a zinc plated finish and no reservoir. A boot is included with the unit.
Key features
- Monotube gas pressure construction in a 46mm body
- Deflecting disc valving that adjusts itself during use
- High-flow piston that reduces harshness
- Independent rebound and compression tuning
- Larger piston working area for damping control
- Zinc plated finish
Older trucks and rust
On a Bronco or F-Series from the earlier years, shock mounts and body bushings are often the parts that fail first. Rust around the upper mount and a worn lower eye can make a shock feel loose even when the damping is still good. A stem upper mount and a 16mm eye lower mount are a combination found on these trucks, so fit depends heavily on bracket condition.
Before buying, inspect the frame brackets and mounting points for cracks or corrosion, since a new shock cannot correct a failed bracket. Monotube shocks like this one are sealed units with no field adjustment for damping, so a leaking body usually means replacement. Pairs on the same axle should be replaced together so the truck tracks straight on the road.
- Check the upper bracket for rust
- Inspect eye bushings for wear
- Replace shocks in pairs on each axle
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-065283 |
| UPC | 651860590806 |
| Series | 5100 Series |
| Collapsed length | 13.27 in. |
| Extended length | 21.52 in. |
| Travel length | 8.25 in. |
| Lower mount | Eye, 16mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Reservoir | No |
| Finish | Zinc plated |
| Charge | Gas charged |
| Boot included | Yes |
Vehicle fitment
It fits the Ford Bronco in 1966–1977 and 1980–1996 across its trims, the 1975–1977 Ford Bronco Sport, and these F-series trucks: 1980–1996 F-150, 1980–1999 F-250, 1999–2016 F-250 Super Duty, 1980–1995 F-350 and 1999–2016 F-350 Super Duty. Bronco years from 1997 on and F-150 years after 1996 are not covered.
The list has no Bronco entries from 1997 on and no F-150 after 1996. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Supplied as a single Bilstein 5100 Series shock with boot.
