Bilstein 46mm Monotube Shock Absorber – 24-002561

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the listed 1966-1967 Jeep Gladiator and 1981-1987 Toyota Land Cruiser
  • 46mm monotube, gas-charged Bilstein 4600 Series shock
  • Yellow, 2 inch body diameter
  • Shock boot included

Description

Overview

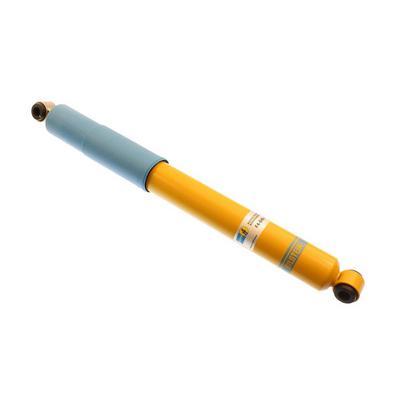

The Bilstein 24-002561 is a 46mm monotube gas-charged shock absorber from the Bilstein 4600 Series, made for the 1966-1967 Jeep Gladiator and the 1981-1987 Toyota Land Cruiser. It has a yellow finish, a 2 inch body diameter and a shock boot.

The monotube design moves heat from the oil to the outer surface of the shock body, where it dissipates efficiently. A dividing piston lets the oil expand as it warms, which helps prevent aeration and foaming and keeps damping steady as temperatures rise. Part number BIL24-002561 is a direct-fit replacement for the vehicles above.

Confirm whether your vehicle needs the front or rear position before ordering.

Key features

  • Monotube, gas-charged design in the 46mm class
  • Part of the Bilstein 4600 Series
  • Yellow finish
  • 2 inch body diameter
  • Shock boot included
  • Direct-fit application for the listed vehicles
  • The piston head allows compression and rebound damping to be tuned independently.

Monotube shocks explained

A monotube shock uses a single tube with a piston separating gas and oil, which keeps the damping fluid under steady pressure. That layout suits trucks and off-road use, where heat builds quickly on long descents and repeated bumps.

Shock service life depends on how the vehicle is driven and maintained. Inspect the shock body for leaks, check the mounting eyes for wear, and look at the boot for cracks that let dirt reach the shaft. Replacing shocks in pairs on the same axle keeps the ride even from side to side.

Bushings and mounts should be checked whenever a shock is replaced, since worn hardware can make a new shock feel loose.

  • Look for oil leaks along the body
  • Check boots for cracks
  • Replace shocks in pairs on one axle

Specifications

Brand Bilstein
Part number BIL24-002561
Product type Monotube shock absorber
Shock series 4600 Series
Piston and tube 46mm monotube
Body diameter 2 inch
Finish Yellow
Shock type Monotube, gas charged
Position Front or rear position: confirm for your vehicle before ordering.
Fitment type Direct fit
Boot Shock boot included

Vehicle fitment

The stored manufacturer fitment list for Bilstein 24-002561 covers the 1966-1967 Jeep Gladiator (Base) and the 1981-1987 Toyota Land Cruiser (Base).

Fitment covers the 1966-1967 Jeep Gladiator (Base) and 1981-1987 Toyota Land Cruiser (Base). Other model years fall outside this fit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Suspension, steering and axle components are safety-critical, so professional installation is recommended. Torque every fastener to the correct value for your vehicle before driving.

  • Support the vehicle on rated jack stands on level ground; never work under a vehicle held only by a jack.
  • Inspect nearby bushings, mounts and hardware while the area is open, and replace anything worn.
  • Re-check fastener torque after the first miles of driving, and again at regular service intervals.
  • Have the alignment checked after any suspension or steering work.
  • Confirm tire, brake line and wiring clearance through the full range of suspension travel before driving normally.

What’s included

A shock boot is included with the shock.

Not included: Mounting hardware and bushings are not included; check what your vehicle needs before starting.

Fitment

VehicleYearsTrims
Jeep Gladiator1966–1967Base
Toyota Land Cruiser1981–1987Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What vehicles does the Bilstein 24-002561 fit?

It fits the 1966-1967 Jeep Gladiator (Base) and the 1981-1987 Toyota Land Cruiser (Base). Other model years fall outside this fit, so confirm your vehicle's year and model before ordering.

Is the Bilstein 24-002561 a front or rear shock?

Confirm whether your vehicle needs the front or rear location before ordering. Mount the shock only in the position that matches your suspension layout.

Does the Bilstein 24-002561 come with a shock boot?

Yes. A shock boot is included with the shock. Mounting hardware and bushings are not part of the package, so check what your vehicle requires before starting.

What type of shock is the Bilstein 24-002561?

It is a gas-charged monotube shock from the Bilstein 4600 Series, with a 2 inch body diameter and a yellow finish. The monotube layout moves heat to the outer body and keeps damping steadier as temperatures rise.

How do I know a shock needs replacing?

Replace a shock when the ride feels bouncy, the vehicle rocks after bumps, or fluid leaks down the body. Uneven tire wear and a split boot can also signal a problem. Inspect bushings and mounts at the same time.
