Overview

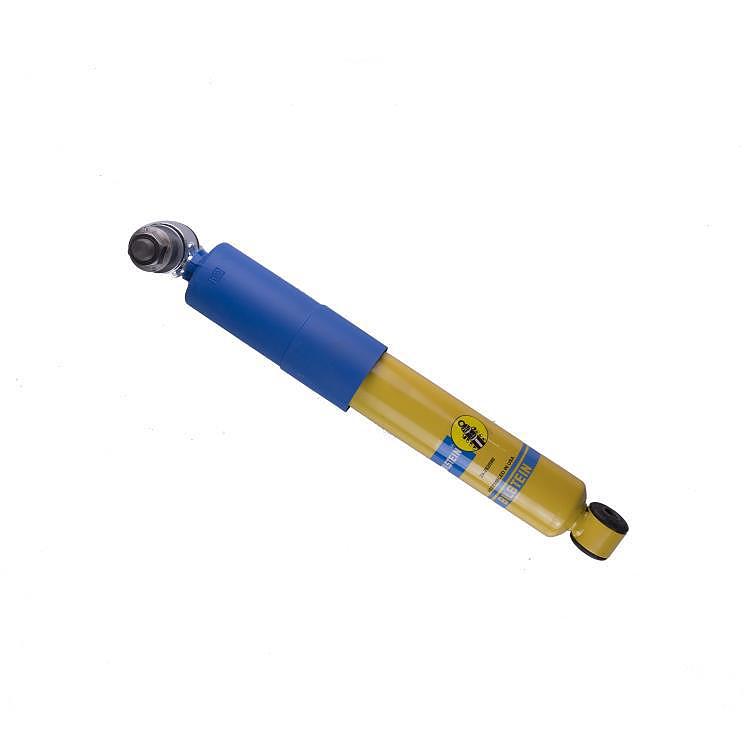

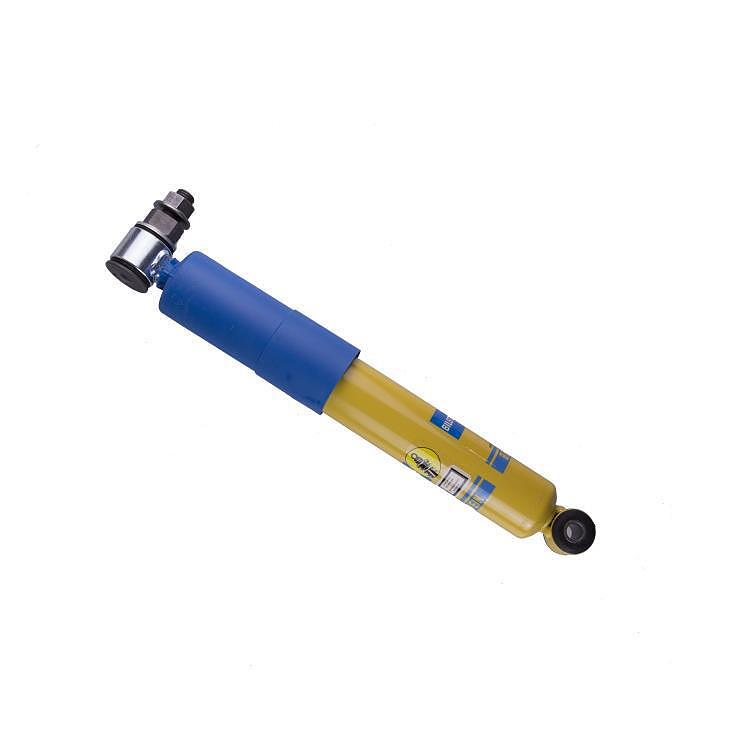

This is a front 46mm monotube shock absorber from the B6 Heavy Duty Series, direct fit for the 1963–1967 Chevrolet P10 Series (Base) and the 1966 GMC P1000 (Base).
The B6 line uses a monotube design for consistent, fade-free performance. Each B6 shock has a velocity sensitive, digressive piston that responds to changing road conditions, and each unit is tuned for its application. These shocks help improve ride quality, handling and comfort, and they reduce excessive sway and bouncing.
Key features
- Monotube design intended to provide consistent, fade-free performance
- Velocity sensitive, digressive piston that responds to changing road conditions
- Each unit tuned for its specific application
- Gas charged construction
- Front position, direct fit
- Intended to reduce excessive sway and bouncing and support control and handling
Choosing a P10 front shock
Front shocks on older full-size trucks work with a leaf or coil front suspension, so the damper length and mounting style need to match the original unit. On these trucks, worn shocks often show up as wandering on the highway, body roll in turns and a rough feel over washboard roads. Older vehicles may have worn bushings that change how the damper loads.
When rebuilding front end parts, inspect the upper and lower mounts, bushings and bump stops, since worn mounts can make a new damper seem to fail early. Replacing shocks in pairs keeps steering and ride balanced from side to side, and checking the tires for cupping helps confirm the damper is worn.
- Compare overall length with the original shock
- Inspect upper and lower mounts
- Replace bushings showing play
- Check for oil seepage at the body
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-252898 |
| UPC | 651860769530 |
| Product type | Monotube shock absorber |
| Diameter | 46mm |
| Series | B6 Heavy Duty |
| Position | Front |
| Fitment type | Direct fit |
| Lift or drop | 0 in. (no lift or drop) |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
Bilstein’s manufacturer fitment list covers the 1963–1967 Chevrolet P10 Series (Base) and the 1966 GMC P1000 (Base). It is a direct-fit front shock.
Non-base trims and model years outside 1963–1967 are not covered for the Chevrolet P10 Series. Confirm fit for your year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
