Overview

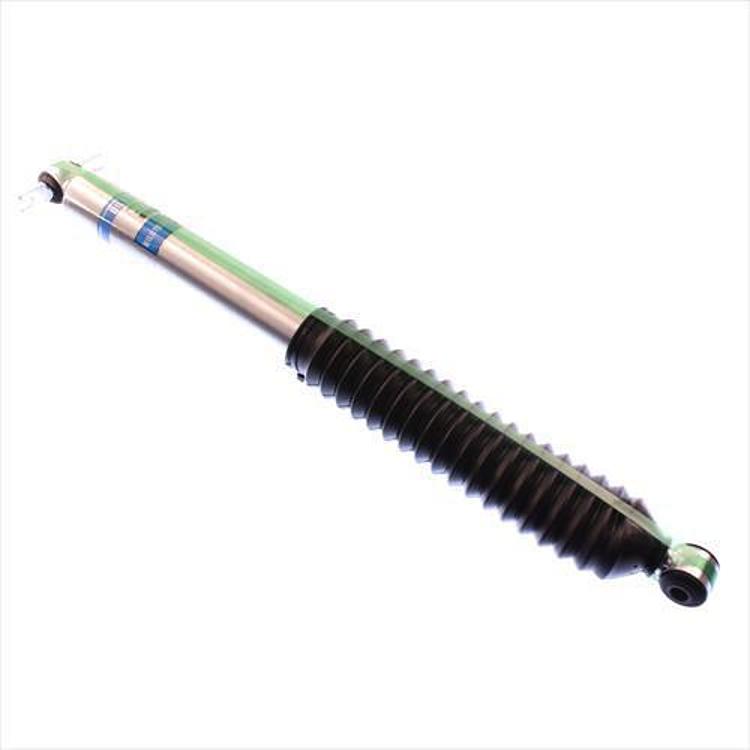

The Bilstein 5100 Series rear shock absorber, part number 33-185934, fits the 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon and the 1997-2006 Jeep Wrangler (TJ). It is a gas-charged monotube shock with a 12.7 mm lower eye and a bar pin upper mount, suited to a 4 – 6 in. lift.
The 5100 Series is a traditional single-tube design for lifted trucks, Jeeps and prerunners. This unit includes a boot and has a 46 mm ID non-coilover smooth body, with a 14 mm shaft and no reservoir.
Key features
- Monotube gas pressure construction that Bilstein says supports fade-free damping
- Self-adjusting deflecting disc valving
- High-flow piston designed to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Designed for lift kits that keep the stock OEM mounting configuration
- Boot included
Bar pin mounts and lift height
A bar pin upper mount uses a pin through the shock eye instead of a bolt-through eye, so the bracket and bushing at the top need to match. Check the pin fits the bracket without slop before tightening, because movement at the top changes damping response and can wear the eye. Boots keep grit off the shaft, and a torn boot is a common reason a shock starts to leak or make noise.
Lift height changes shock length and the angle of the damper, so a shock chosen for one suspension height may bind or run short at another. Check lift height, shaft travel and any other suspension changes before you choose a length. Replacing both shocks on an axle keeps damping even, and inspecting the bushings and brackets during install helps the new shock last.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-185934 |
| UPC | 651860637334 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 15.41 in. |
| Extended length | 25 in. |
| Travel length | 9.59 in. |
| Lower mount | Eye, 12.7 mm |
| Upper mount | Bar pin |
| Shaft diameter | 14 mm |
| Body design | 46 mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Boot included | Yes |
| Gas charged | Yes |
| Finish | Zinc plated |
| Fitment type | Direct fit |
| Lift height | With 4 – 6 in. lift |
Vehicle fitment
It fits the 2004-2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1997-2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
The list does not include the 1987-1995 Wrangler (YJ) or the 2007-2018 Wrangler (JK), so those generations are not confirmed. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bar pin upper and 12.7 mm lower eye are the mounts to check. Confirm your upper bracket takes a bar pin, measure the lower eye, and verify your lift sits in the 4 – 6 in. range before fitting the shock.
What’s included
One shock absorber with a boot included. Check the package contents against your installation before starting.
