Bilstein 5100 Series Shock Absorber – 24-186827

Bilstein

$110.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

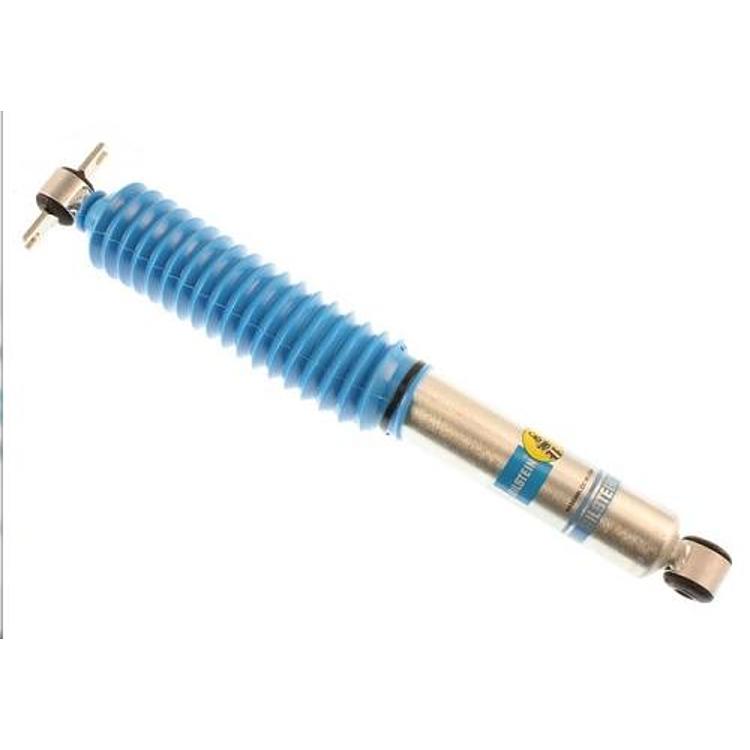

  • Bilstein 5100 Series rear shock absorber, part number 24-186827
  • Fits the 2004-2006 Jeep Wrangler (LJ) and 1997-2006 Jeep Wrangler (TJ)
  • Extended length 20.08 in, collapsed length 12.81 in, travel 7.27 in
  • Lower eye mount 12.7mm, upper bar pin mount, 14mm shaft
  • Gas charged monotube design with boot included

Description

Overview

The Bilstein 5100 Series rear shock absorber, part number 24-186827, is a gas charged monotube shock for the 2004-2006 Jeep Wrangler (LJ) and the 1997-2006 Jeep Wrangler (TJ). It is a direct fit with a 46mm ID smooth body in a non-coilover design.

Bilstein designed the 5100 Series for lifted trucks, Jeeps and prerunners that need steady damping and control with large-diameter tires. The shock uses a single tube high gas pressure design, self-adjusting deflecting disc valving and independent rebound and compression tuning. Extended length is 20.08 in and travel is 7.27 in.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • High-flow piston that Bilstein says reduces harshness
  • Independent rebound and compression tuning
  • Larger working piston area for damping control
  • Boot included

Mixed mounts on older Wranglers

Older Wrangler generations often used a mix of eye and pin mounts, so the mount design matters as much as length. An eye on one end and a bar pin on the other can make alignment during installation harder, especially if the bushings have aged. Keep the old shock as a reference while fitting the new one.

Off-road use puts more stress on the mounts, so check for cracks around welds and wear in the bar pin holes. Clean the pin and sleeve, and replace worn bushings when they are part of the kit. A clean fit reduces noise and the chance of early wear.

  • Inspect eye and pin bushings
  • Clean the bar pin before fitting
  • Check brackets for weld cracks
  • Confirm bushing sizes match

Specifications

Brand Bilstein
Part number 24-186827
UPC 651860579962
Shock series 5100 Series
Position Rear
Collapsed length 12.81 in
Extended length 20.08 in
Travel length 7.27 in
Lower mount Eye, 12.7mm
Upper mount Bar pin
Shaft diameter 14mm
Body design 46mm ID smooth body, non-coilover
Internal design Monotube
Gas charged Yes
Reservoir No
Finish Zinc plated
Boot included Yes
Lift height w/0 – 2 in. lift
Fitment type Direct fit

Vehicle fitment

It fits the 2004-2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1997-2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

Other Wrangler generations, including the JK and JL, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The lower mount is an eye and the upper mount is a bar pin, so compare both ends with the shock you are removing before fitting. Support the vehicle securely while the old shock is removed.

What’s included

A Bilstein 5100 Series rear shock absorber with boot included.

SKU: BIL24-186827 Category:

Specification

Shipping weight 4.55 lbs
Package dimensions 26.80 × 3.60 × 3.60 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-186827 fit a 2004 to 2006 Jeep Wrangler LJ?

Yes. It fits the 2004-2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims. Confirm your vehicle's year, model and trim before ordering.

Does it also fit a TJ Wrangler?

The list includes the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. Check your TJ's year and trim against that list before ordering.

What are the mount types?

The lower mount is a 12.7mm eye and the upper mount is a bar pin. The shaft is 14mm, and the lift height rating is w/0 - 2 in. lift.

Are shock upgrades useful on a Wrangler with larger tires?

They can be, because larger tires add weight and leverage that stock shocks may not control well. Choose a shock with a body and valving suited to your tire size, and check that the mounts still clear the axle and frame.
