Overview

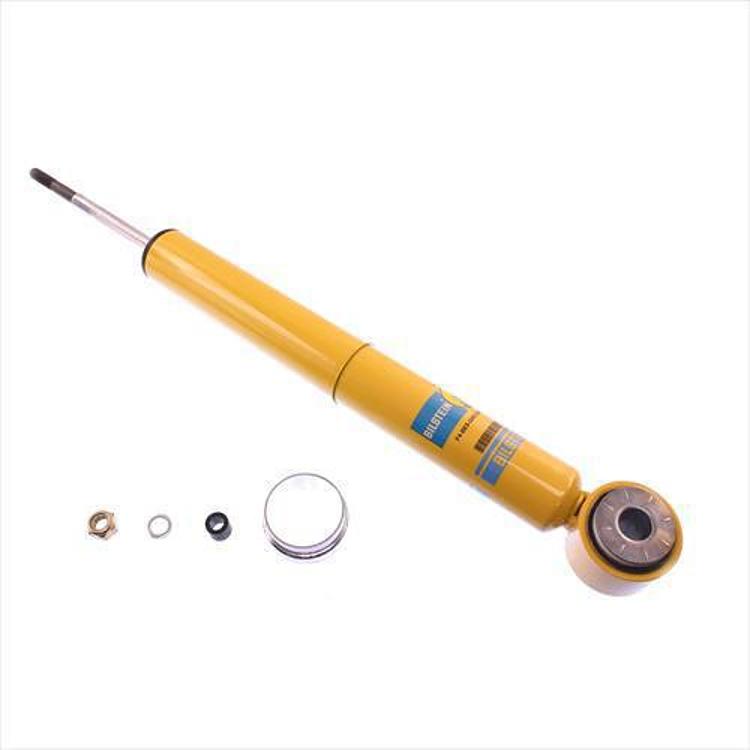

The Bilstein 24-187404 is a Heavy Duty 4600 Series front shock for the 2009–2013 Ford F-150, including the FX4 trim. It is a gas charged monotube design with direct fit and no lift or drop.
Bilstein’s 4600 Series B6 shocks are presented as a good match for most full-size sedans, SUVs and trucks. The line is meant to add handling control and stability while keeping ride comfort on the street, and its strong damping is aimed at drivers who want more performance from their truck.
Key features
- Bilstein 4600 Series B6 heavy duty construction
- Gas charged monotube with a steel body
- Better handling and stability
- Strong damping with street ride comfort
- Yellow paint finish
- Direct fit at the front position
Front shock service intervals
Front shocks on a full-size truck work through steering, braking and the weight of the front end, so they wear faster than many owners expect. Heavy duty designs are built to handle that load, but seals and bushings still age with heat, grit and miles. Regular inspection catches leaks and loose mounts early, before they affect steering or tire wear. Towing and off-road use add extra stress, so inspection intervals can be shorter for those trucks.
A shock that feels soft, pitches heavily under braking or makes a knocking sound over bumps may be worn. When replacing, match the front pair so both sides react the same way through a corner. Front alignment should be checked after installation to keep steering centered and tire wear even.
- Check for leaks at the body seal
- Inspect the upper and lower mounts
- Listen for knocks over bumps
- Replace front shocks as a pair
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187404 |
| UPC | 651860641812 |
| Shock series | 4600 Series |
| Body | 46mm monotube, steel |
| Position | Front |
| Fitment type | Direct Fit |
| Lift height | w/0 in. Lift/Drop |
| Hydraulic / gas charged | Gas Charged |
| Finish | Yellow paint |
| Previous part number | BILF4-BE5-G551-H0 |
Vehicle fitment
It fits the 2009–2013 Ford F-150 in FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims.
The list does not include F-150 years before 2009 or from 2014 on, and it does not cover the F-150 Lightning. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front shock absorber. Check the package contents against your installation before starting.
