Overview

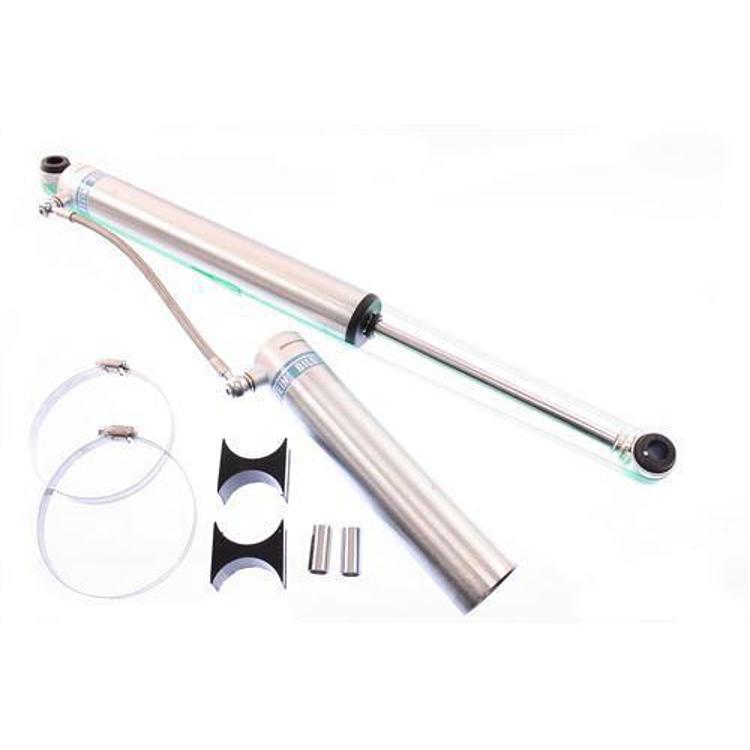

The Bilstein 5165 Series reservoir shock absorber, part number 25-187717, is a gas-charged monotube shock built for custom lifted trucks and SUVs. It is a universal fit, so no specific year, make or model is named.
A remote reservoir sits apart from the shock body and holds extra shock oil, which Bilstein links to better heat dissipation and damping sensitivity. A floating dividing piston inside that reservoir supports increased wheel travel and more shaft movement.
Key features
- Monotube design, which Bilstein calls its industry-leading construction
- Digressive valving that produces full damping capability right away
- Remote reservoir with larger shock oil capacity
- Floating dividing piston housed in the reservoir for more wheel travel
- Triple-C Technology finish that stays easy to care for
Things to check
Before fitting a reservoir shock, confirm that the mounting points on the frame or axle can accept the reservoir body and that the hose can route without touching moving parts. The reservoir needs space that stays clear through full compression and extension, so measure both before ordering. A shock sized for one build may not suit another, especially if lift height or tire size has changed.
Shocks in custom builds are often replaced with related parts, such as bushings, bump stops and control arm hardware, because worn components change the loads a damper sees. Inspect the shaft for pitting, check the seals for seepage and look over the reservoir for dents. A gas charged shock should be handled carefully and serviced with the instructions supplied.
- Measure reservoir space at full compression and extension
- Confirm the hose routes clear of tires and moving parts
- Inspect the shaft for pitting or seepage
- Replace bushings and bump stops alongside the shocks
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187717 |
| UPC | 651860649665 |
| Shock series | 5165 Series |
| Design | Monotube with remote reservoir |
| Charge | Gas charged |
| Fitment | Universal fit |
| Finish | Triple-C Technology |
Vehicle fitment
This shock is a universal fit and is not tied to a particular vehicle. Because it is intended for custom lifted trucks and SUVs, check its mounting points and stroke against your own suspension before fitting it.
No specific year, make, model or trim is named for this part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The reservoir mounting kit comes with detailed instructions from Bilstein. Use that kit and those instructions to position and secure the reservoir.
What’s included
Reservoir mounting kit and detailed instructions.
