Overview

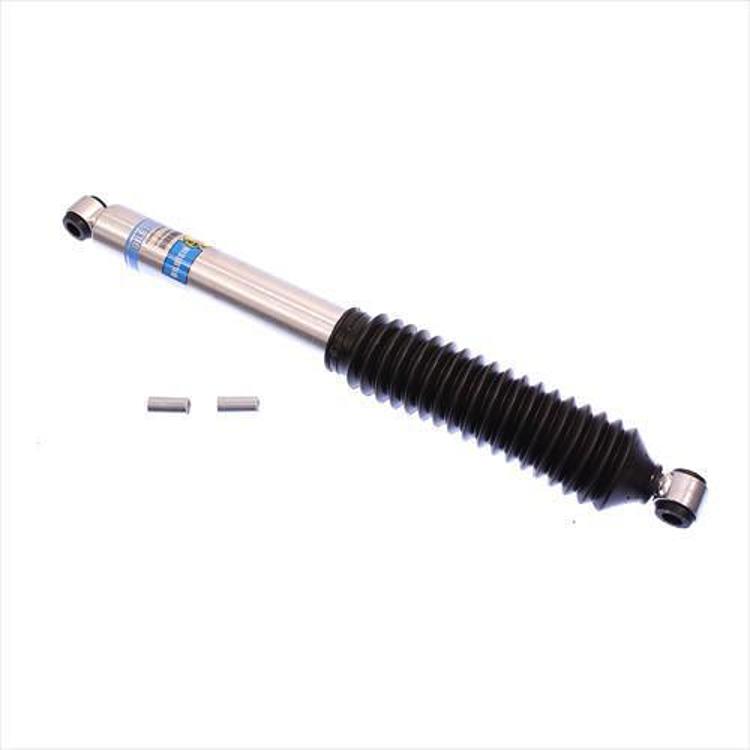

The Bilstein 33-185606 is a 5100 Series gas-charged front shock absorber for lifted trucks, Jeeps and prerunners. It uses a single-tube monotube body with high gas pressure, and Bilstein designed it for specific manufacturer lift kits that keep the stock O.E.M. mounting configuration.
The 5100 Series uses a single tube with high gas pressure, which helps damping stay steady under hard use. Both mounts are 16mm eyes and the shaft is 14mm. The 46mm smooth body is non-coilover, so it is a shock body rather than a coilover unit.
Key features
- Monotube gas pressure construction for consistent, fade-free damping
- Self-adjusting deflecting disc valving
- High-flow piston designed to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for precise damping
- Built to control large-diameter tires
Front position and lift range
A front shock works differently from a rear shock because it controls steering motion as well as suspension movement. On a lifted truck, the front shock must match the lift height so the steering geometry and ride height stay within normal range. A front shock that is too long or too short can pull on the upper mount and change how the tires track.
Front shocks are often replaced in pairs so the ride stays even from side to side. Check the mounts for wear and make sure the eye hardware matches before installing. Inspect the shock body for oil leakage, dented tubes and a boot that has cracked or split. Sleeves and bushings should be checked when the shock comes off.
- Confirm the lift range before ordering
- Check both 16mm eyes for matching hardware
- Inspect the boot for cracks
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-185606 |
| UPC | 651860453774 |
| Shock series | 5100 Series |
| Position | Front |
| Fitment | Direct Fit |
| Lift height | w/4 in. lift |
| Collapsed length | 14.13 in. |
| Extended length | 22.58 in. |
| Travel length | 8.45 in. |
| Lower mount | Eye 16mm |
| Upper mount | Eye 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Reservoir | No |
| Finish | Zinc plated |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
It is a direct fit with a w/4 in. lift for lifted trucks, Jeeps and prerunners. Check fit against your year, make and model before buying.
Confirm your vehicle’s year, model and trim before ordering. Match the front position and the lift range to your truck, because a front shock will not suit a rear mount.
Installation notes
The shock has 16mm eye mounts at both ends, so check that the upper and lower hardware on your vehicle matches before fitting. Gas-charged shock bodies stay pressurized, so do not heat, puncture or disassemble the cylinder.
What’s included
This entry covers one 5100 Series shock absorber. Check the mounting hardware and bushings against your vehicle before installing.
