Bilstein 46mm Monotube Shock Absorber – 24-017985

Bilstein

$109.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 5:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1994–2001 Jeep Cherokee (XJ) and 1993–1998 Jeep Grand Cherokee (ZJ) per the manufacturer fitment list
  • Front position, direct fit 46mm monotube gas-charged shock
  • Heavy duty 4600 Series build in yellow
  • Part number 24-017985, UPC 651860612218

Description

Overview

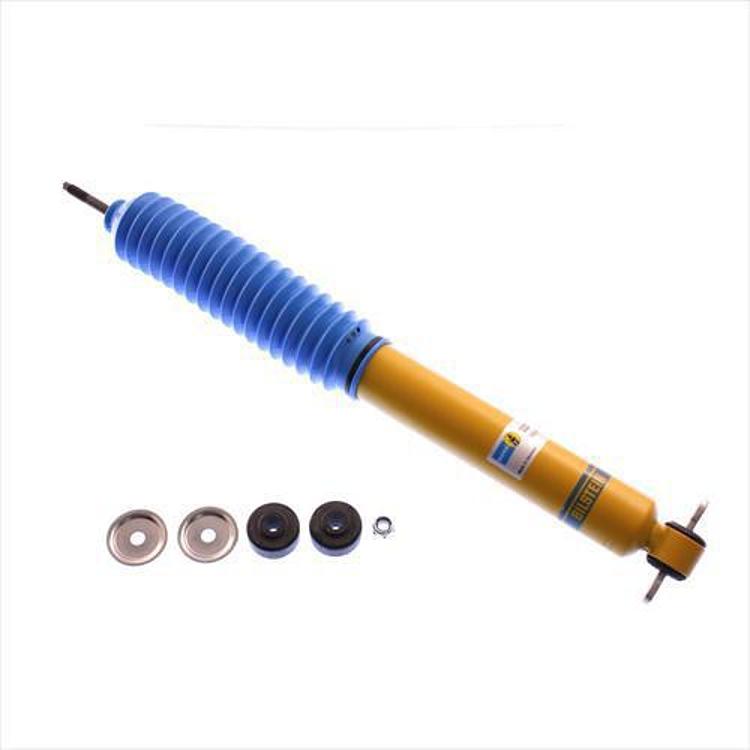

The Bilstein 24-017985 is a front 46mm monotube gas-charged shock absorber from the 4600 Series, built as a direct fit replacement for the 1994–2001 Jeep Cherokee (XJ) and the 1993–1998 Jeep Grand Cherokee (ZJ). It is a heavy duty unit with a yellow finish, aimed at owners who want a damper that keeps its character on rough roads and trails.

The monotube body is designed to move heat out of the working oil. Heat passes to the outer surface of the shock body and dissipates more efficiently than it would in a twin tube design. A dividing piston lets the oil expand as it warms, so the damping stays consistent when temperatures climb during long descents or repeated hard hits. The tube itself is formed by a special extrusion method that keeps wall thickness even, which supports long service life.

Key features

  • Gas-charged monotube body that carries oil heat to the outer shock surface
  • Dividing piston lets the oil expand as it heats, limiting aeration (foaming) and viscosity loss
  • Seamless monotube formed by a special extrusion method for tight peak-to-valley tolerance
  • Piston head allows compression and rebound damping to be tuned independently
  • Fewer parts than most conventional twin tube and so-called road sensing shock designs
  • Front position for the front suspension application
  • Direct fit listing with a stock-height lift/drop rating of w/0 in.
  • Heavy duty build in a yellow finish

Before you buy

Before buying a replacement shock, compare the mounting eyes, collapsed length and stroke with the unit being removed. A stock-height shock is meant to match the factory ride height, so the new damper should sit at the same angle as the old one. Heavy duty builds often run firmer, which suits trail or towing use but can feel harsher on pavement.

Gas-charged monotube shocks are easiest to judge when they are checked as a pair. Replacing both front shocks together keeps damping even from side to side. Inspect the upper and lower bushings and the boots as well, since worn rubber lets the shaft move off line and wears the seals.

Keep the shock upright and free of mud during storage, and avoid heating the body. Signs of wear include oil on the outer tube, a bouncy feel after bumps and uneven tire wear along the front edge.

Specifications

Brand Bilstein
Part number 24-017985
UPC 651860612218
Former part number BILF4-B46-1798-H1
Shock series 4600 Series
Body style 46mm monotube
Gas type Gas charged
Position Front
Fitment type Direct fit
Lift height w/0 in. Lift/Drop (stock height)
Finish Yellow
Duty Heavy duty

Vehicle fitment

The manufacturer fitment list for 24-017985 covers the 1994–2001 Jeep Cherokee (XJ) in Classic, Country, Limited, SE and Sport trims, and the 1993–1998 Jeep Grand Cherokee (ZJ) in 5.9 Limited, Base, Laredo, Limited, Orvis, SE and TSi trims. Both entries are for the front position.

It fits the 1994–2001 Jeep Cherokee (XJ) and the 1993–1998 Jeep Grand Cherokee (ZJ) only. For other Jeep models, including the Wrangler (YJ), Liberty (KJ) and later Grand Cherokee (WJ), check the year, model and trim against your vehicle before buying.

What’s included

The shock absorber is the main item. Look over the package for mounting hardware and other included parts before fitting.

SKU: BIL24-017985 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1994–2001Classic, Country, Limited, SE, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-017985 fit a Jeep Cherokee XJ?

Yes. The manufacturer fitment list includes the 1994–2001 Jeep Cherokee (XJ) in Classic, Country, Limited, SE and Sport trims. Match your model year and trim against that list before fitting, since trim coverage differs.

What exactly is the Bilstein 24-017985?

It is a front 46mm monotube gas-charged shock absorber in the 4600 Series, finished in yellow and identified by UPC 651860612218. Its former part number was BILF4-B46-1798-H1.

Does this shock have a lift height rating?

It is a stock-height replacement, rated w/0 in. Lift/Drop, with no lift or drop built in. Look over the package for mounting hardware before installation.

Can a heavy duty shock be used on the street?

Yes, a heavy duty shock can be used on the street. It is built to hold up under rougher driving, but the damping may feel firmer than a standard unit, so check how the ride feels after the first few drives.
