Bilstein 5160 Series Reservoir Shock Absorber – 25-187670

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

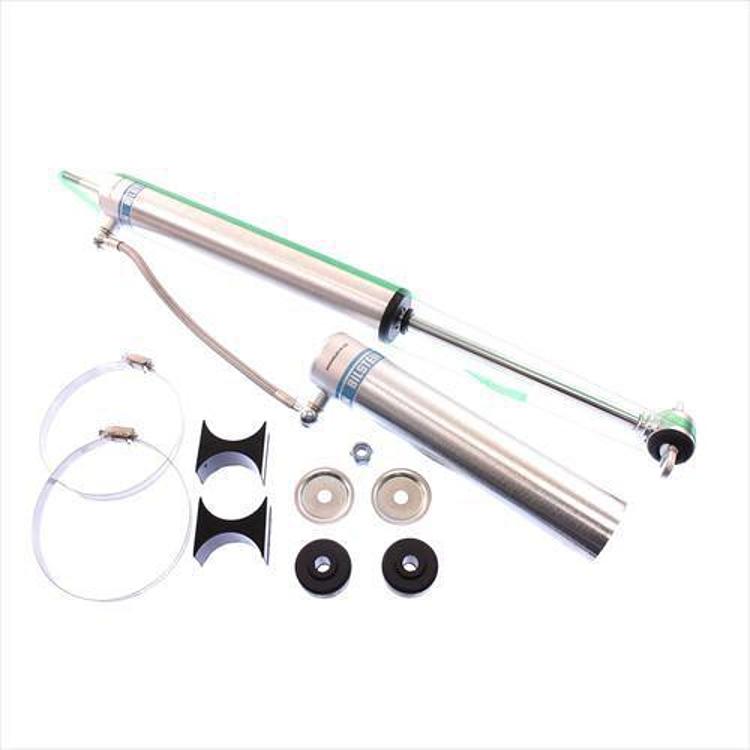

  • Bilstein 5160 Series front reservoir shock, part number 25-187670
  • Collapsed length 14.44 in., extended length 24.49 in., travel 10.05 in.
  • Lower bar mount and upper stem mount, 14mm shaft
  • Includes upper mount kit and reservoir mount kit
  • Confirm fit for your vehicle’s year, model and trim before ordering.

Description

Overview

The Bilstein 5160 Series front reservoir shock absorber, part number 25-187670, is a gas charged mono tube shock with a remote reservoir for the front of a pickup or SUV. It installs in the factory shock location with no cutting or welding.

A remote reservoir sits apart from the shock body and connects to it, giving the oil more room to cool. The shock has a 46mm ID smooth body (non-coilover), a 14mm shaft and 10.05 in. of travel. Confirm the fit for your vehicle before installing.

Key features

  • Remote reservoir adds shock oil capacity for heat dissipation
  • Digressive valving gives full damping capability right away
  • Floating dividing piston sits in the reservoir for added wheel travel
  • Bilstein mono tube internal design
  • Triple-C Technology zinc plated finish for easy care
  • Reservoir mounting configuration built for the application

Confirming fit before buying

Front reservoir shocks vary by vehicle in length, stem and eye placement, and reservoir bracket position, so confirming fit comes first. Measuring the collapsed and extended length of the shock you are replacing is a practical start. Compare those figures against the new unit, then check the mount type before ordering.

Once the fit is confirmed, a remote reservoir gives oil more room to cool, which matters on long descents and repeated hard use. Keep the hose away from the steering linkage, exhaust and tire path. Check the reservoir bracket and mounts after the first few drives, and again after any suspension change.

  • Measure the shock you are replacing
  • Confirm stem and bar mount compatibility
  • Check hose clearance at full steering lock

Specifications

Brand Bilstein
Part number 25-187670
UPC 651860654874
Series 5160 Series
Position Front
Collapsed length 14.44 in.
Extended length 24.49 in.
Travel length 10.05 in.
Lower mount Bar mount
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Gas charged Yes
Finish Zinc plated
Boot included No
Mounting parts included Upper mount kit and reservoir mount kit
Lift height listed w/4 in. lift
Fitment type Direct fit

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Do not assume a fit from the 4 in. lift figure alone.

Front reservoir shocks differ by vehicle in length and mounting, so do not assume a fit from the 4 in. lift figure alone. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shock mounts with the upper mount kit and the reservoir mount kit. On a 4 in. lift, check reservoir and hose clearance through full suspension travel after installation.

What’s included

The package includes the upper mount kit, the reservoir mount kit and detailed instructions.

Not included: A dust boot, since the shock is listed with no boot.

SKU: BIL25-187670 Category:

Specification

Shipping weight 7.60 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Will the Bilstein 25-187670 fit my Jeep or Chevrolet?

Confirm fit for your year, model and trim before ordering, since front reservoir shocks differ by vehicle in length and mounting. Check the mount type and lift height against your truck first.

Is part 25-187670 a front or rear shock?

It is a front shock. It is a gas charged mono tube design with a remote reservoir and a 46mm ID smooth body.

What are the length and travel specs?

The collapsed length is 14.44 in., the extended length is 24.49 in. and the travel length is 10.05 in. The shaft diameter is 14mm.

What mounting hardware comes with it?

The upper mount kit and reservoir mount kit come with it, along with detailed instructions. A boot is not included.

What should I check before installing a front reservoir shock?

Check fit for your year, model and trim, the mount type and the reservoir clearance. Confirm the lift height matches your suspension and that the upper and lower hardware line up before tightening anything.
