Overview

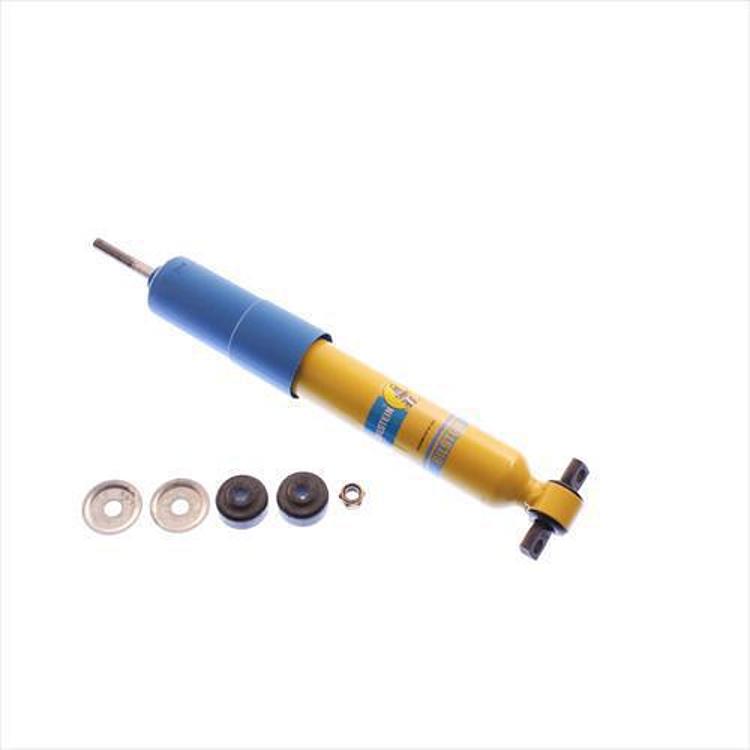

The Bilstein 4600 Series front shock absorber, part number 24-185189, is a gas-charged monotube unit with a 2 in body diameter. The manufacturer fitment list covers the 1997–2002 Ford Expedition, the 2001–2003 Ford F-150, the 2002 Lincoln Blackwood and the 1998–2002 Lincoln Navigator.
Monotube construction moves heat from the damping oil out through the shock tube, where the surface releases it more quickly. A dividing piston absorbs oil expansion as the unit warms, which helps keep damping steady over long runs. The tube is extruded to hold tight tolerance, and the piston head lets compression and rebound be tuned separately.
The tube is extruded with a process the brand says holds tight peak-to-valley tolerance. Compression and rebound damping can be tuned independently through the piston head, a design Bilstein presents as using fewer parts than conventional twin-tube units.
Key features
- Front-position shock with a gas-charged monotube design.
- Heat moves from the oil through the outer shock body.
- Dividing piston that handles oil expansion.
- Extruded seamless tube with consistent wall thickness.
- Separate compression and rebound tuning.
- Boots included with the unit.
Before you order
Ford and Lincoln trucks and SUVs carry a lot of weight at the front, so the shock works hard under braking and on washboard roads. A gas-charged monotube keeps the oil and gas in one tube, which helps damping stay steady when the body warms up on long grades. Matching the year, model and trim matters because the same platform can use different front suspension parts across production years.
Replace front shocks in pairs so both sides damp the same way. Inspect the shock body for seepage, check that the rubber boots are not split, and watch for a front end that keeps moving after a bump. Bushings and mounting hardware often wear at the same time, so inspect them while the shock is out.
- Check boots for cracks before installation
- Inspect upper and lower mounts for wear
- Compare the new shock’s length with the old one
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185189 |
| UPC | 651860608037 |
| Shock series | 4600 Series |
| Position | Front |
| Fitment type | Direct fit |
| Body diameter | 2 in |
| Type | Monotube |
| Hydraulic / gas charged | Gas charged |
| Reservoir | No |
| Lift height | 0 in. lift/drop |
| Finish | Yellow |
| Boots included | Yes |
Vehicle fitment
It fits the 1997–2002 Ford Expedition (Eddie Bauer, XLT), 2001–2003 Ford F-150 (King Ranch, Lariat, XL, XLT), 2002 Lincoln Blackwood (Base) and 1998–2002 Lincoln Navigator (Base). Each fits the front position.
Not covered by these entries: Ford F-150 years outside 2001–2003, Expedition years after 2002, and Blackwood years after 2002. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lift/drop rating is 0 in., so this front shock is a no-lift replacement. The four entries name different trims, so confirm that the trim on your truck or SUV matches a listed entry.
What’s included
Boots are included. Check what your installation requires for the upper and lower mounting hardware before starting.
