Overview

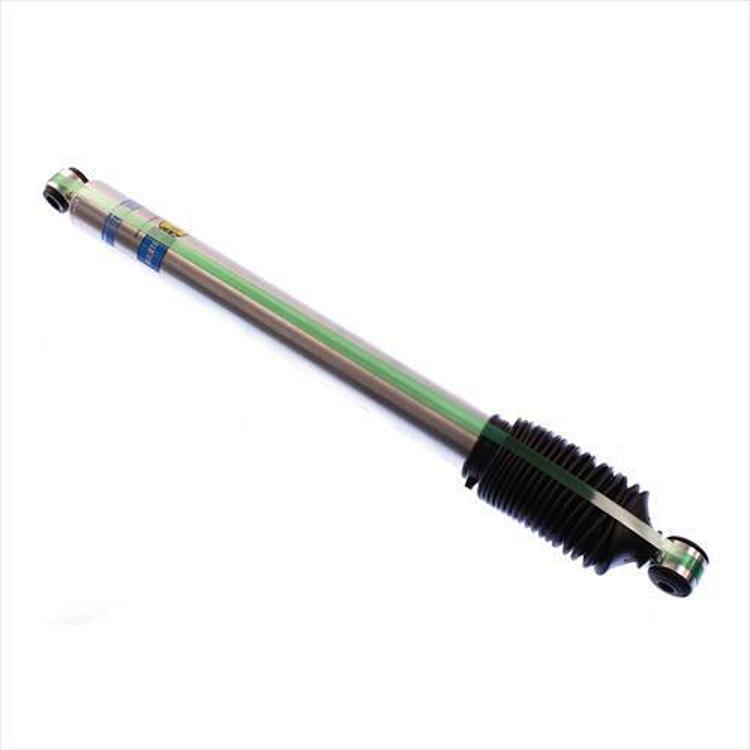

The Bilstein 5100 Series rear shock absorber, part number 24-062466, is a gas-charged monotube shock made for lifted trucks, Jeeps and prerunners, with a stated lift range of 2 to 3.5 in. Its collapsed length is 20.28 in., its extended length is 32.01 in., and its travel length is 11.73 in. Shock absorbers manage how quickly the suspension compresses and rebounds, so this unit’s damping affects control both on the highway and on rough ground.
It is designed for specific lift kits and uses the stock O.E.M. mounting configuration. The single tube high gas pressure design is intended to give consistent, fade-free performance and long service life. The body is a 46mm ID smooth body with a non-coilover layout, and it has no reservoir.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for precise damping
- Suited to large diameter tires.
- Zinc plated finish with boot included
Ride quality and maintenance
A rear shock on a lifted truck or Jeep controls axle motion over washboard and rocks, and it helps keep the tires planted on loose surfaces. Shocks in this class need to handle a lot of travel, so the body and piston should be kept clean to avoid grit wearing the seals. Gas-charged bodies are pressurized, so they should be kept away from heat and not punctured.
Inspect the eye mounts and bushings regularly, since trail use can loosen hardware and wear the rubber. A smooth shock that feels harsh or a body that shows oil residue are signs it is time to inspect the unit more closely.
- Keep the shaft clean after trail use
- Inspect eye mounts and bushings
- Watch for oil residue on the body
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-062466 |
| UPC | 651860591667 |
| Series | 5100 Series |
| Position | Rear |
| Collapsed length | 20.28 in. |
| Extended length | 32.01 in. |
| Travel length | 11.73 in. |
| Lower mount | Eye, 12mm |
| Upper mount | Eye, 16mm |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Reservoir | No |
| Finish | Zinc plated |
| Lift height | 2 to 3.5 in. lift |
| Charge | Gas charged |
| Boot included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
No vehicle list is attached to this part, so no year, model or trim is named. It is intended for lifted trucks, Jeeps and prerunners, and for lift kits that keep the stock O.E.M. mounting points. Fitment cannot be confirmed for a specific year, model or trim, so verify before ordering.
Confirm your vehicle’s year, model and trim before ordering. Check the lift kit you run against the 2 to 3.5 in. range before fitting.
Installation notes
The stated range is 2 to 3.5 in. of lift, so match the shock to your kit’s lift height before fitting it, and support the vehicle safely on stands while working on the suspension.
What’s included
A single Bilstein 5100 Series rear shock absorber, boot included.
