Overview

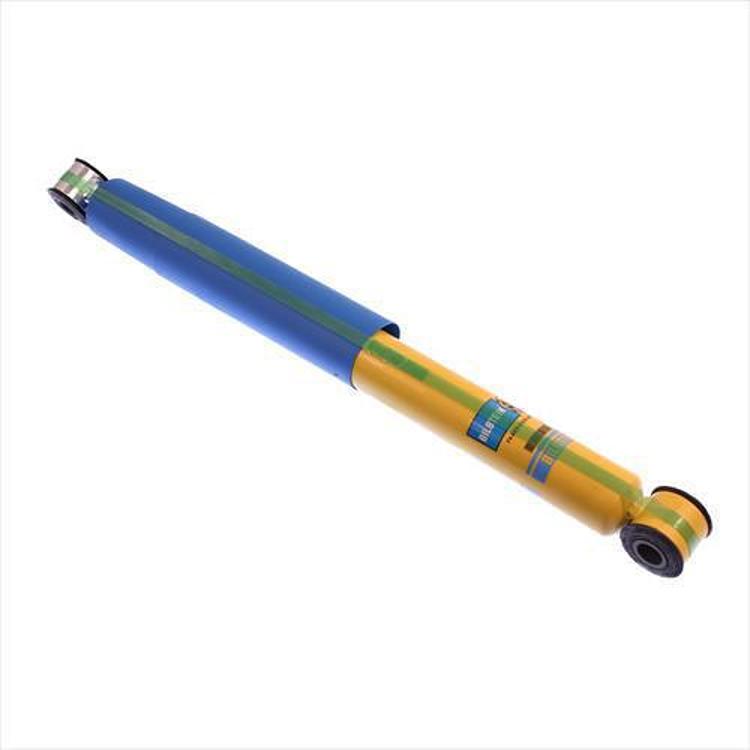

The Bilstein 46mm Monotube Shock Absorber, part number 24-187015, is a heavy duty, yellow, gas charged monotube shock absorber from Bilstein. A monotube shock uses one pressure tube with a dividing piston instead of the two tubes found in a conventional twin tube design, and Bilstein builds this model around that single tube layout.
The gas-charged monotube design moves heat from the oil out through the outer surface of the shock body. A dividing piston lets the oil expand as it heats, which helps prevent aeration and loss of viscosity so the shock keeps full damping as temperatures rise. Confirm fit for the year, make, model and trim of your vehicle before ordering.
Key features
- Heavy duty monotube body in a 46mm diameter
- Gas charged monotube design that moves heat from the oil through the shock body
- Dividing piston lets the oil expand as heat builds, helping prevent foaming and viscosity loss
- Tube made by a special extrusion method, which Bilstein describes as giving a tight peak-to-valley tolerance and consistent wall thickness
- Piston head allows compression and rebound damping to be tuned independently
- Seamless monotube construction, which Bilstein says adds tube strength and aids heat dissipation
- Digressive piston design with fewer parts than most conventional twin tube and road sensing shock designs
- Yellow finish
Gas-charged shock handling
Gas-charged shocks hold nitrogen under pressure in addition to damping oil, so the body should be treated as a sealed pressure part. Mount and remove the shock with the correct tools and keep it upright during storage. Protect the body from knocks, since dents can damage the seals and the tube inside.
Most owners replace a worn gas-charged shock rather than servicing it, because opening the body releases the gas and the internal pressure. Before choosing a replacement, measure the eye-to-eye length and stroke of the old unit. Keep the yellow finish in good shape by avoiding scraping against rocks and curbs, which can expose bare metal.
- Store the shock upright
- Protect the body from dents
- Measure eye-to-eye length before buying
- Avoid heating or cutting the body
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187015 |
| UPC | 651860597072 |
| Previous part number | BILF4-BE5-E629-H0 |
| Shock type | Monotube, gas charged |
| Body diameter | 46mm |
| Design | Heavy duty |
| Finish | Yellow |
Vehicle fitment
No vehicle is identified for part number 24-187015.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Gas charged shocks are pressurized, so do not cut, puncture or heat the shock body during removal or disposal.
What’s included
The shock absorber itself is the item covered here.
Not included: Mounting hardware and bushings: check the package contents against your installation before starting.
