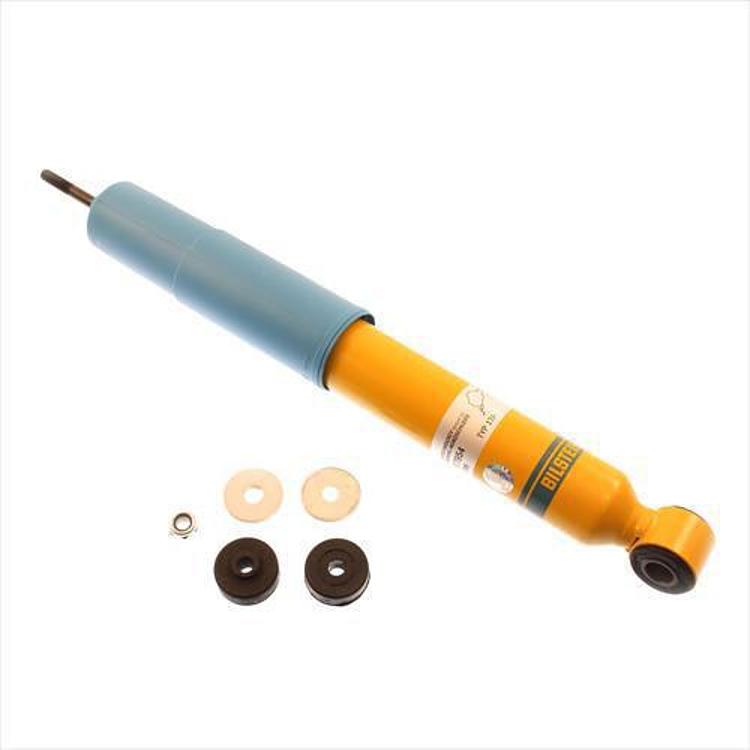

Bilstein 4600 Series Shock Absorber – 24-017954

Bilstein

$101.26In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 4600 Series rear shock absorber, part number 24-017954
  • Fits the 1992–1999 Mitsubishi Montero in Base, LS, RS and SR trims
  • Gas-charged monotube with a 2 in body diameter and yellow finish
  • No reservoir; boots included

Description

Overview

The Bilstein 24-017954 is a rear shock in the 4600 Series, made for the 1992–1999 Mitsubishi Montero in Base, LS, RS and SR trims. It is a gas-charged monotube with a 2 in body diameter and a yellow finish, and it is a direct fit.

Bilstein explains that heat from the damping oil passes through the outer wall of the shock body and dissipates there. The dividing piston lets the oil expand as it warms, which the company says avoids aeration, meaning foaming, and the loss of viscosity that would weaken damping.

The seamless monotube tube is extruded to a tight tolerance, and the piston head tunes compression and rebound damping separately. The piston arrangement uses fewer parts than many conventional twin tube and road sensing shocks, which supports long shock life. Boots are included.

Key features

  • Rear position shock in the Bilstein 4600 Series
  • Gas-charged monotube with a 2 in body diameter
  • Dividing piston that lets oil expand as temperatures rise
  • Heat moves from the oil to the outer shock body
  • Extruded tube said to hold consistent wall thickness
  • Separately tuned compression and rebound damping
  • Boots included

Choosing a rear shock

A rear shock controls how the axle moves over bumps and during braking, so it affects ride and stability more than many owners expect. Worn units often feel bouncy over swells or make a knock over small bumps. On a Mitsubishi Montero, the rear shocks also carry load, which makes the gas charge and internal design important over long periods of use. A monotube body keeps the damping fluid and gas in separate chambers, which helps the unit hold steady as it warms on long grades.

Replacing rear shocks in pairs keeps ride height and damping even from side to side. Before you remove the old unit, check the mounting eyes, bushings and boots for cracks, leaks or looseness. Clean the mounting surfaces so the bolts seat properly, and recheck fasteners after the first few drives.

  • Replace both rear shocks on the same axle
  • Inspect bushings for hardening or splits
  • Look for an oil film on the shock body

Specifications

Brand Bilstein
Part number 24-017954
UPC 651860612362
Shock series 4600 Series
Position Rear
Body diameter 2 in
Type Monotube
Gas charge Gas charged
Finish Yellow
Reservoir No
Boots included Yes
Fitment type Direct fit
Lift height 0 in. (no lift or drop)

Vehicle fitment

The manufacturer fitment list for this rear shock covers the 1992–1999 Mitsubishi Montero in Base, LS, RS and SR trims. Model years outside 1992 to 1999 and other Mitsubishi models are not on that list.

Other years and other Mitsubishi models are not covered by this list, so do not assume a fit from the model name alone. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Boots are included.

Not included: Check the package contents against your installation before starting, including any mounting hardware you need.

SKU: BIL24-017954 Category:

Specification

Shipping weight 3.95 lbs
Package dimensions 22.50 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Mitsubishi Montero1992–1999Base, LS, RS, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-017954 fit a Mitsubishi Montero from a model year after 1999?

No. It fits the 1992 to 1999 Mitsubishi Montero in Base, LS, RS and SR trims, so later model years are outside that range. Confirm fit for your vehicle's year, model and trim before ordering.

Is the Bilstein 24-017954 a front or rear shock?

It is a rear shock. Part number 24-017954 is a rear position unit in the Bilstein 4600 Series, with a gas-charged monotube design and a 2 in body diameter.

Does the Bilstein 24-017954 include boots?

Yes, boots are included. Mounting hardware is not confirmed for this shock, so check the package contents against your installation before planning the work.

What finish and body diameter does this Bilstein shock have?

The Bilstein 24-017954 has a yellow finish and a 2 in body diameter. It is a monotube design with no reservoir, and it is gas charged. Boots are included with the shock.

Should rear shocks be replaced in pairs?

Replacing both rear shocks at the same time is usually the better choice. Matched units keep ride height and damping even from side to side, which helps the vehicle track straight over bumps and under braking.

How can I tell a rear shock is worn?

Look for oil on the shock body, a knocking sound over small bumps, or a rear end that keeps bouncing after a dip. Check the boots and bushings too, since damaged rubber can let dirt reach the shaft and speed up wear.
