Overview

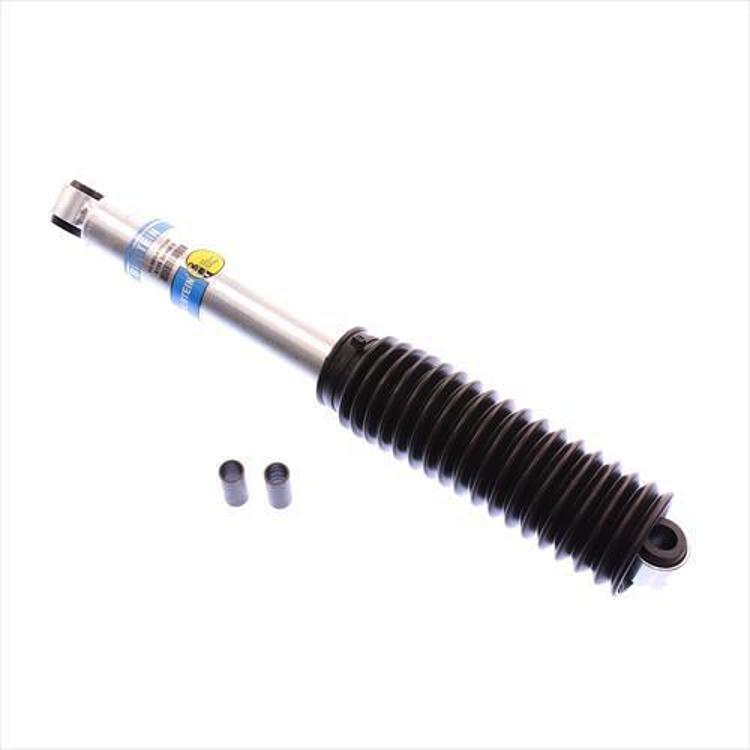

The Bilstein 5125 Series Shock Absorber, part number 33-062518, is a front gas charged shock for custom lifted applications with a w/0 – 2 in. Lift range. Bilstein offers the 5125 Series by travel length for custom applications.
The shock uses a single tube high gas pressure design for consistent, fade free performance and long life. Its compression setting is 700 and its rebound setting is 2550.
Key features
- Mono tube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Independent rebound and compression tuning
- Larger working piston area for exact damping
- Designed for control with large diameter tires.
Choosing the right setup
Front shocks control steering feel, braking dive and body motion over uneven ground, so their damping matters as much as their length. A front unit used with a lift must reach its full range without bottoming out on the bump stop. Measure how far your suspension travels now and compare it with the travel length before deciding.
Sleeves and bushings are often replaced alongside the shock. Worn rubber mounts allow play that shortens a shock’s service life, and a sleeve that does not seat fully can loosen under load. Inspect each mount for cracks or flattening during installation, and use the correct sleeve for each eye.
- Replace front bump stops that are cracked or compressed
- Check steering components for play while the shock is off
- Tighten all fasteners after a short test drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-062518 |
| UPC | 651860644110 |
| Shock series | 5125 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | w/0 – 2 in. Lift |
| Collapsed length | 12.07 in |
| Extended length | 18.5 in |
| Travel length | 6.43 in |
| Compression | 700 |
| Rebound | 2550 |
| Lower mount | 5/8 inch eye |
| Upper mount | 5/8 inch eye |
| Shaft diameter | 14mm |
| Reservoir | No |
| Finish | Zinc plated |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Hydraulic / gas charged | Gas charged |
| Boot included | Yes |
| Mounting parts included | 1/2 inch sleeves |
Vehicle fitment
This front shock is a direct fit for custom applications in the w/0 – 2 in. lift range. Make sure your year, model and trim match before ordering.
The lift range alone does not establish a fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The package includes 1/2 inch sleeves, and the mounts are 5/8 inch eyes. Check the sleeve fit against your mounts before installing.
What’s included
One front 5125 Series shock absorber, with 1/2 inch sleeves and a boot.
