Overview

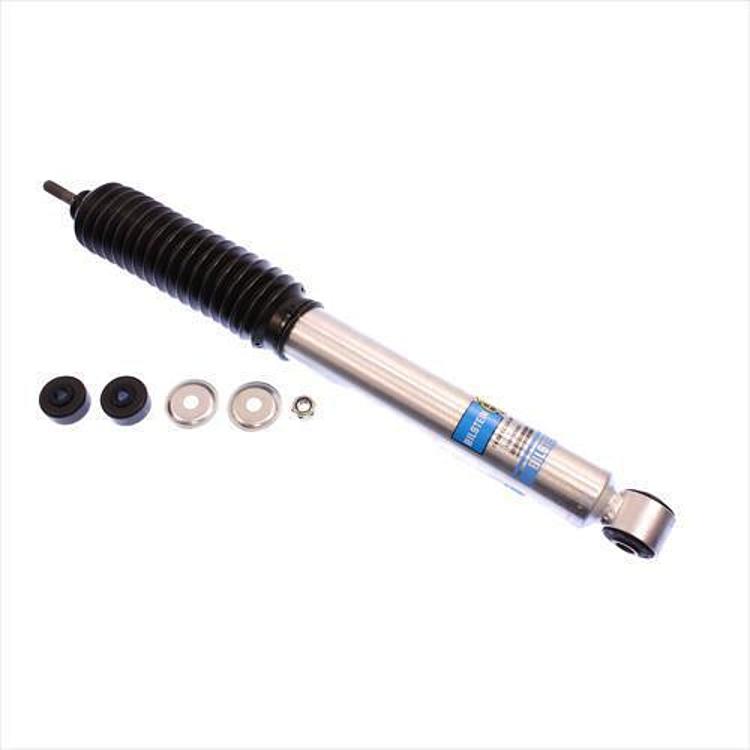

The Bilstein 5100 Series shock absorber, part number 24-186018, is a front-position, gas-charged monotube damper with a 14.4mm eye lower mount and a stem upper mount. It is Direct Fit for lifts from 0 to 2 in., and the body is a 46mm inside-diameter smooth design without a coilover spring.
The 5100 Series suits lifted trucks, Jeeps and prerunners. This unit measures 13.59 in collapsed and 21.42 in extended, giving 7.83 in of travel. It uses a 14mm shaft and an internal monotube design with no reservoir, finished in zinc plate. The high-flow piston reduces harshness on the road.
Key features
- Monotube gas pressure construction.
- Self-adjusting deflecting disc valving.
- High-flow piston that reduces harshness on the road.
- Independent rebound and compression tuning.
- Larger working piston area.
- Boot included.
Lift and mount matching
Lift height changes the geometry a shock works within, so a unit rated for a range of lifts needs its length and mount type checked against the truck. Eye lower mounts and stem upper mounts are common in lifted applications, and each needs a matching bracket. A shock that is too short or too long can bind at full travel.
Monotube shocks with independent rebound and compression tuning let you adjust damping feel through the same stroke. Look at the collapsed and extended lengths together, not just one. Replacing shocks in pairs keeps the truck balanced side to side.
- Measure bracket pin size before ordering
- Check stem clearance at full compression
- Inspect upper stem threads for wear
- Keep the boot in place during install
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186018 |
| UPC | 651860493190 |
| Shock series | 5100 Series |
| Position | Front |
| Fitment | Direct Fit |
| Lift height | w/0 – 2 in. Lift |
| Collapsed length | 13.59 in |
| Extended length | 21.42 in |
| Travel length | 7.83 in |
| Lower mount | Eye 14.4mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc Plated |
| Boot included | Yes |
| Hydraulic / gas charged | Gas charged |
Vehicle fitment
The listed details name no year, make, model or chassis for 24-186018. Front position, Direct Fit and a 0 – 2 in. lift are the only fitment notes given.
Check the 14.4mm eye lower mount and stem upper mount against your current shock. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 14.4mm eye lower mount has to match the pin or bolt size on your lower bracket. Gas-charged units hold pressure, so have service handled by a qualified shop.
What’s included
One front shock absorber with boot included. Check whether your installation needs mounting hardware before starting.
