ARB Shackle And Pin Kit – OMEGS10

ARB 4x4 Accessories

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Greasable rear shackle and pin kit, part number OMEGS10
  • Bolt-together assembly prevents out-of-angle pin problems
  • Each shackle pin has two grease outlet holes
  • Fits 1960–2011 and 2013–2014 Toyota Land Cruiser

Description

Overview

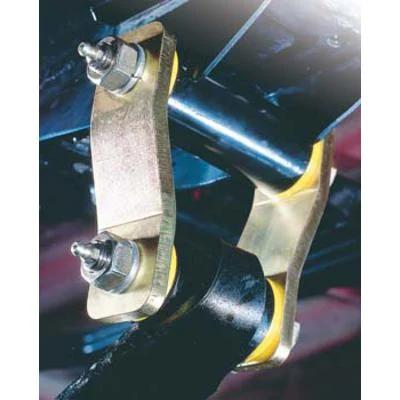

The ARB Shackle And Pin Kit, part number OMEGS10, is a greasable rear shackle and pin kit. It fits the 1960–2011 and 2013–2014 Toyota Land Cruiser in the Base trim.

The kit uses a bolt-together assembly that keeps each shackle pin square against the side plates. Each shackle pin has two grease outlet holes, so grease reaches the full pin.

Key features

  • Greasable rear shackle and pin kit
  • Bolt-together assembly
  • Two grease outlet holes in each shackle pin
  • Designed to avoid out-of-angle pin to side plate problems

Shackle geometry and grease

A shackle with a pin that sits off-angle wears unevenly, because the load goes onto one edge of the plate rather than across the whole pin. A bolt-together assembly helps the parts seat square, which spreads the load and keeps the movement smooth. Square seating also makes it easier to tell whether a shackle has been assembled correctly before it goes on the vehicle.

Grease reaches the pin through the outlet holes, so keep them clear of mud and paint when assembling. Regular greasing keeps the pin from seizing, especially in sand, mud and water crossings. During service, check the plates for elongated bolt holes and the pin for bright wear marks, both of which mean the shackle needs attention.

  • Assemble the kit so the pin sits square to the plate
  • Keep grease outlet holes clear during assembly
  • Grease the pin after water or mud exposure
  • Look for elongated bolt holes in the side plates

Specifications

Brand ARB 4×4 Accessories
Part number OMEGS10
Kit type Shackle and pin kit
Location Rear
Grease outlets Two per pin

Vehicle fitment

It fits the 1960–2011 and 2013–2014 Toyota Land Cruiser in the Base trim.

The 2012 model year and other Toyota models are not in the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Assemble the bolt-together kit so the shackle pin lines up square with the side plate, then grease through both outlet holes.

Fitment

VehicleYearsTrims
Toyota Land Cruiser1960–2011, 2013–2014Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ARB OMEGS10 fit a Toyota Land Cruiser?

Yes, it fits the 1960–2011 and 2013–2014 Toyota Land Cruiser in the Base trim. Confirm your year before ordering, since the 2012 model year is not covered.

How is the grease delivered to the pin?

Each shackle pin has two grease outlet holes, so grease can be delivered to both ends of the pin for full coverage.

What does the bolt-together design prevent?

The bolt-together design keeps the pin square against the side plate, which prevents out-of-angle pin problems. This applies to the 1960–2011 and 2013–2014 Toyota Land Cruiser in the Base trim.

Can a shackle kit be installed without checking the rest of the suspension?

It is best installed with the spring and shackle hardware checked at the same time. Confirm the spring eye, bushings and bolts are in good condition, so the new shackle is not loaded against worn parts.

What is the main benefit of a greasable shackle?

A greasable pin lets lubricant reach the moving surfaces, which slows wear and reduces binding. Regular greasing keeps the shackle moving freely and helps it last longer in rough or wet conditions.
