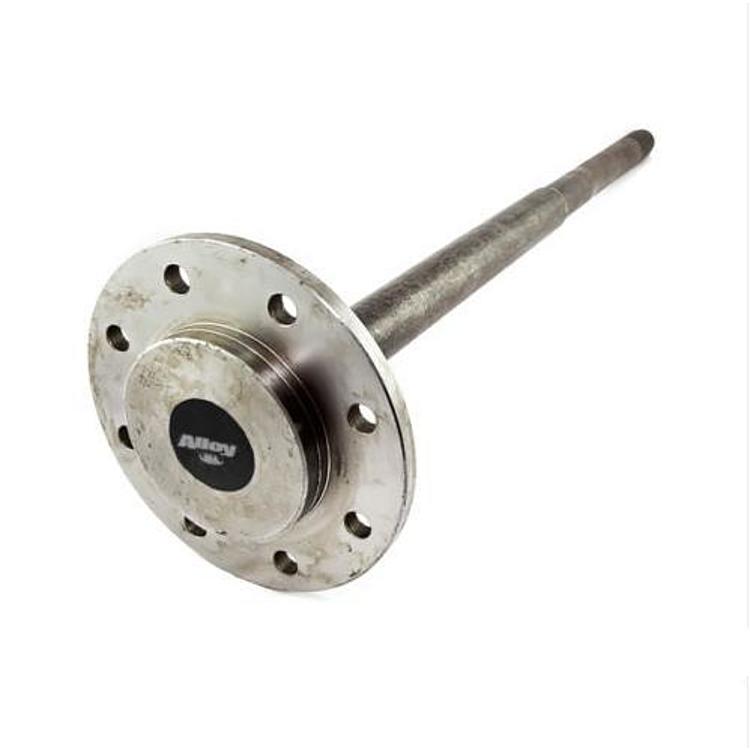

Alloy USA GM 8.5 Inch 10 Bolt Rear Axle Shaft – 17118

Alloy USA

Shop Alloy USA Replacement Axle Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • GM 8.5 inch 10 bolt rear axle shaft, 33 spline, driver or passenger side
  • Fits 88-98 GM 2500LD trucks
  • Does not include bearings, seals or studs

Description

Overview

The Alloy USA 17118 is a GM 10 bolt 8.5 inch rear axle shaft with 33 splines, for the driver or passenger side. It is for 88-98 GM 2500LD trucks.

Shafts are heat treated and induction hardened and made from 1541H or 4140 steel. The 33 splines must match the gear set in the axle, so check the differential before choosing this shaft. Compare the spline count and side with the axle being repaired.

Key features

  • Replacement shaft for the GM 10 bolt 8.5 inch rear axle
  • 33 spline
  • Fits the driver or passenger side
  • Covers 88-98 GM 2500LD trucks.
  • Alloy USA says its shafts are heat treated and induction hardened
  • Bearings, seals and studs are not included
  • Manufacturer part number: ALY17118

Confirming the axle before buying

The 33 spline count on this shaft makes the match with the carrier the first thing to check. Splines that do not agree will not engage, so a mismatch will not work. Because the shaft fits either side, count the splines on the axle being replaced and confirm the side before ordering. Measuring the old shaft’s length also helps confirm the fit.

The 2500LD trucks in this range were often used for towing and work, which places steady torque on the rear axle. Shafts that are heat treated and induction hardened are chosen for that work, but a worn carrier or bad bearings can still break a shaft. Inspect the carrier gears and bearings along with the shaft before reassembly. Keep the bearing and seal set on hand so the job is not delayed.

  • Count the splines on the old shaft
  • Confirm driver or passenger side before ordering
  • Inspect carrier gears when the axle is open
  • Keep bearings and seals on hand

Specifications

The 17118 is a replacement axle shaft for the GM 10 bolt 8.5 inch rear axle, with 33 splines. Every figure in the table below is the manufacturer value for the 17118.

Brand Alloy USA
Part number 17118
Part type Replacement axle shaft
Axle GM 10 bolt 8.5 inch rear
Axle shaft location Driver or passenger side
Spline 33 spline
Manufacturer part number ALY17118
Application stated 88-98 GM 2500LD

Vehicle fitment

No vehicle year or model list is published for the 17118; check the manufacturer specifications for the exact application.

It is for 88-98 GM 2500LD applications.

Match the 17118 against your old shaft for spline count, length and driver or passenger side before installing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 17118 arrives without bearings, seals or studs, so plan to reuse the originals or have new ones on hand.

What’s included

One axle shaft.

Not included: Bearings, Seals, Studs.

SKU: ALY17118 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 37.50 × 7.00 × 7.00 in
brands

Questions & Answers

Which trucks does the Alloy USA 17118 fit?

It is for 88-98 GM 2500LD trucks with the GM 10 bolt 8.5 inch rear axle. No specific vehicle models are named, so confirm your truck has this axle before ordering.

How many splines is the Alloy USA 17118?

The 17118 has 33 splines. It is a replacement shaft for the GM 10 bolt 8.5 inch rear axle and fits either the driver or passenger side.

Does the Alloy USA 17118 include bearings and studs?

No. Bearings, seals and studs are not included with the 17118 shaft, so plan to reuse the originals or have new ones on hand.

Can I use this shaft if my truck has a different axle size?

No. The shaft is made for the GM 10 bolt 8.5 inch rear axle, so a different axle will not fit. Confirm the axle type before ordering, since fitment depends on the housing as well as the spline count.

How often should the bearing and seal set be replaced?

Replace them when they show play, roughness or grease leaks, and whenever the shaft is replaced. A worn seal can let water and dirt reach the bearing. Check them during each axle service.
