2″ Johnny Joint

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9112NC-12 2 inch narrow Johnny Joint with right-hand 1 inch-14 threads
  • 2 inch mounting width and 1/2 inch thru-bolt hole
  • 5 inch of threads on the shank, gold zinc plated finish
  • Jam nut CE-9113JN is a separate part; no vehicle fitment is listed

Description

Overview

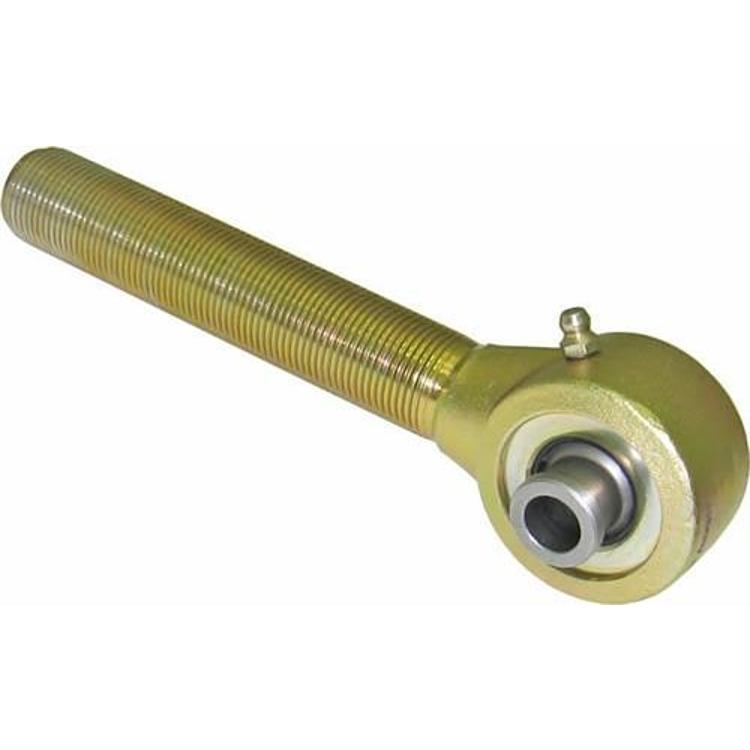

The Currie CE-9112NC-12 is a narrow 2 inch forged Johnny Joint rod end with a 1 inch right-hand threaded shank, meant for universal custom builds rather than one model. Currie first developed the narrow body for JK track bars, and this joint is now offered on its own for replacements and custom work.

The joint has a 1/2 inch thru-bolt hole in a 2 inch mounting width, and its shank carries 5 inch of 1 inch-14 right-hand threads. The forged rod end takes internals made for the narrow design, and the finish is gold zinc plating. The outer shell is greaseable. It is non-serviceable, so plan on replacing the joint rather than rebuilding it.

Key features

  • Narrow forged rod end with a 2 inch mounting width
  • 1/2 inch thru-bolt hole
  • 5 inch of 1 inch-14 right-hand threads on the shank
  • Greaseable through the outer shell
  • Gold zinc plated finish
  • Finished joint with forged construction

Maintenance planning for a non-serviceable joint

A non-serviceable joint cannot be rebuilt in the usual way, so its service life depends on how it is greased and how the suspension is set up. Keep the outer shell greased where a fitting is present, and avoid running the joint dry after washing or water crossings. Look for play, cracks in the shell and torn seals at every service, and replace the joint instead of trying to rebuild it.

Joint wear often shows up first as clunks over bumps or loose-feeling steering. Check the stud threads and jam nut for looseness, and confirm the arm is not bent around the joint. When swapping any part of the front or rear linkage, measure alignment afterward and re-check the joint after the first few trips.

Specifications

Brand Currie
Part number CE-9112NC-12
UPC 700007998111
Joint type Finished joint, forged
Mounting width 2 inch
Thru-bolt hole 1/2 inch
Threads 5 inch of 1 inch-14, right hand
Finish Gold zinc plating
Maintenance (joint details) Non-serviceable
Lubrication (description) Greaseable through outer shell

Vehicle fitment

The CE-9112NC-12 has no specific vehicle fitment. It is a universal part, and the narrow design was first developed for JK track bars, so compare your application before ordering.

Do not treat the track bar history as a fitment statement for this joint. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use internals made for the narrow design, and confirm the maintenance details before you plan how the joint will be greased.

What’s included

A narrow forged Johnny Joint rod end with right-hand 1 inch-14 threads.

Not included: Jam nut CE-9113JN is a separate part and is not included.

SKU: CURCE-9112NC-12 Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 5.00 × 5.00 × 5.00 in
brands

Questions & Answers

How much thread does this joint have?

The shank carries 5 inch of 1 inch-14 right-hand threads. The joint has a 2 inch mounting width and a 1/2 inch thru-bolt hole, which differs from the 14mm hole on the CE-9112N-13.

Is the CE-9112NC-12 greasable or serviceable?

It is greaseable through the outer shell. It is non-serviceable, so plan on replacing the joint rather than rebuilding it. If rebuilding matters to your build, plan around a replacement joint instead.

Does it fit a specific vehicle?

No vehicle is named for it. It is a universal narrow joint, first developed for JK track bars, so compare your application before ordering.

What is the difference between serviceable and non-serviceable joints?

A serviceable joint can be disassembled, regreased and rebuilt with replacement bushings or internals. A non-serviceable joint is replaced as a unit when worn. Regreasing through a fitting still helps, but worn parts are replaced rather than repaired.
