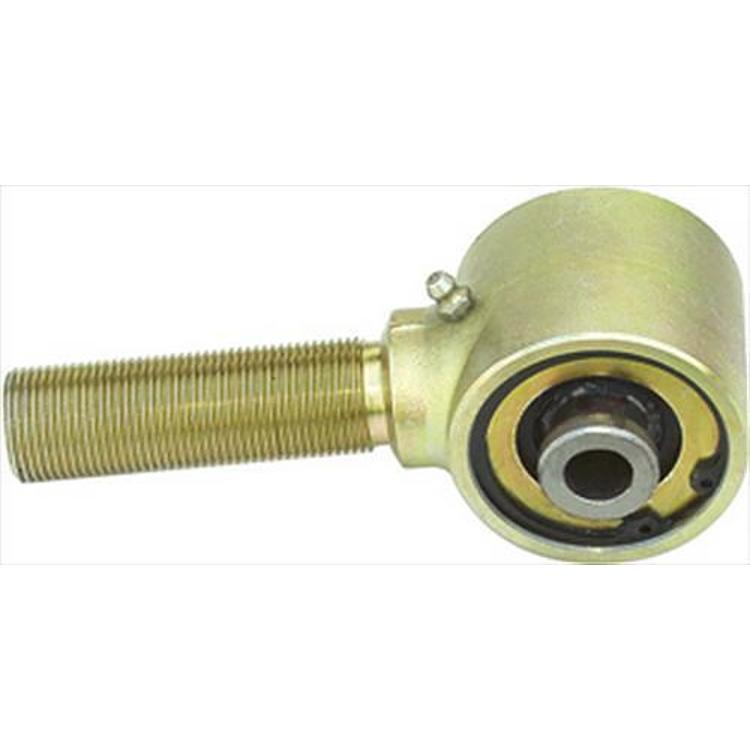

Currie 2.5 Inch Forged Johnny Joint with 1 Inch LH Threaded Stud – CE-9113L

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9113L forged Johnny Joint with a 1 inch left-hand threaded stud
  • 2 1/2 inch outside diameter with 2.625 inch mounting width
  • 9/16 inch thru-bolt hole and 3 1/4 inches of 1-14 left-hand threads
  • Urethane bushings, forged steel construction, externally greased
  • Universal fit for adjustable upper control arms and custom builds

Description

Overview

The Currie CE-9113L is a left-hand version of the 2 1/2-inch forged Johnny Joint, with a 1-inch left-hand threaded stud. It is meant for Currie adjustable upper control arms and for custom arms built from universal parts. It is universal fit, so the stud size, thread direction and mounting width determine suitability rather than a vehicle.

The joint body is forged steel with urethane bushings and a serviceable finish. Grease enters through the outer shell, and the stud carries 3 1/4 inches of 1-14 left-hand threads. The mounting width is 2.625 inches, and the thru-bolt hole is 9/16 inch. The joint is supplied as one unit with its bushings, and the gold zinc finish is applied to the body.

Key features

  • Left-hand threaded stud, 1 inch diameter
  • Forged steel body with urethane bushings
  • Greasable through the outer shell
  • 2.625 inch mounting width
  • 9/16 inch thru-bolt hole
  • Serviceable, finished joint for universal applications

Left-hand builds and matching parts

A left-hand joint is usually used on the side of the arm where the stud must turn the other way, so the pair of arms on a build needs to be set up as a matched set. Mixing left and right studs can leave one side unable to thread in fully. Check the part number and thread direction on each joint, and label the arms to keep the sides straight during assembly.

Because the joint is greased through the outer shell, keep the zerk fitting clean and grease the joint after installation and at regular service. Look for play, cracked bushings or a bent shell during inspection, and replace worn parts before the arm bore is damaged. When the arm is installed, support it while threading the stud and re-check the jam nut after the first few drives.

Specifications

Brand Currie
Part number CE-9113L
UPC 70000353426
Joint type Forged Johnny Joint, finished, serviceable
Thread direction Left hand
Threaded stud 1 inch, 3 1/4 inches of 1-14 threads
Outside diameter 2 1/2 inch
Mounting width 2.625 inch
Thru-bolt hole 9/16 inch
Bushings Urethane
Material Forged steel
Finish Gold zinc plating
Lubrication Externally greased through the outer shell
Fitment Universal fit

Vehicle fitment

It is universal fit and is not matched to a particular year, make or model. Use it where a Currie adjustable upper control arm or a custom universal arm needs a left-hand 1 inch stud and a 2.625 inch mounting width.

Because no vehicle is named, verify the stud and bore on your arm before assembly. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the stud is left-hand threaded, it tightens counterclockwise, so confirm the thread on your arm matches before assembly. Grease the joint through the outer shell after installing it, and check full thread engagement before use. Support the arm while threading the joint so it does not cross-thread.

What’s included

One Currie CE-9113L forged Johnny Joint with the 1 inch left-hand stud, urethane bushings and gold zinc finish described above.

Not included: Jam nuts and the arm itself are sold separately.

SKU: CURCE-9113L Category:

Specification

Shipping weight 2.50 lbs
Package dimensions 6.40 × 4.80 × 4.20 in
brands

Questions & Answers

Is the CE-9113L a left-hand thread?

Yes. The CE-9113L has a left-hand threaded stud, 1 inch in diameter with 3 1/4 inches of 1-14 left-hand threads. The right-hand version is the CE-9113, so check the part number before assembly.

What are the mounting width and bolt hole?

The joint has a 2.625 inch mounting width and a 9/16 inch thru-bolt hole, with a 2 1/2 inch outside diameter. Confirm these dimensions match your arm before assembling the joint.

Is this joint made for one vehicle?

No. It is universal fit for adjustable upper control arms and custom arms built for universal applications. No year, make or model applies, so match the joint to your arm.

Is the joint greasable and serviceable?

Yes. It is externally greased through the outer shell and is a serviceable joint with urethane bushings, so regreasing is part of routine upkeep.

What tools help with threading a left-hand stud?

A wrench or socket on the flats of the stud works for threading and locking, and a bench vise can hold the arm steady. Use a clean thread chaser if the threads are dirty. Avoid forcing the joint, since cross-threading can damage the arm.
