Overview

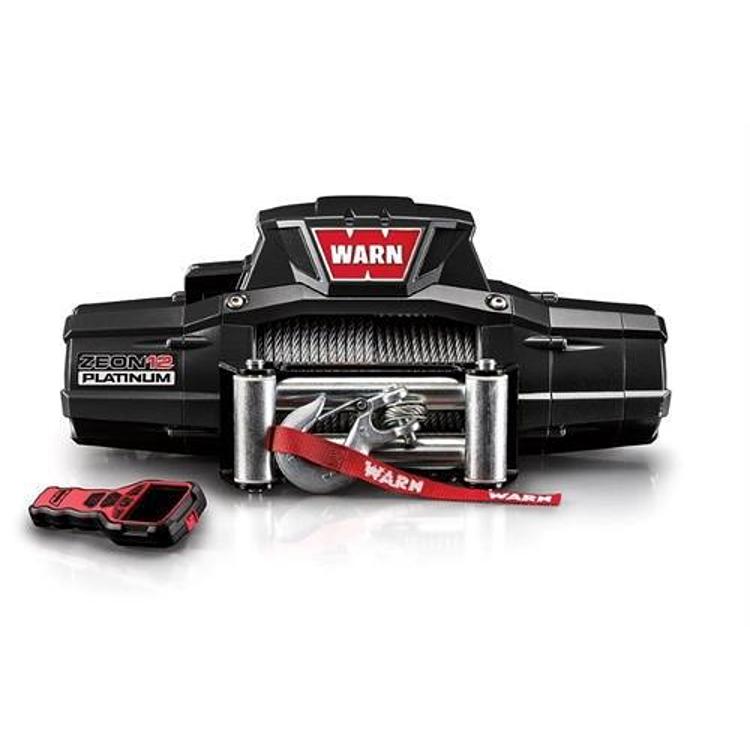

The Warn ZEON Platinum 12 Recovery 12000lb Winch, part number 92820, is an electric winch rated for a 12000 lb line pull. It has a 12V motor, a 162:1 gear ratio and 80 ft. of 3/8 wire rope with a roller fairlead. It is universal fit, so it is not tied to a specific year, make or model.
The ZEON Platinum 12 is designed for trail or jobsite recovery and removes manual clutches. The wireless remote handles the winch, the clutch and up to two accessories, and it shows motor temperature and battery charge. It carries an IP68 waterproof rating with advanced seals.
Key features
- Rated line pull of 12000 lbs.
- 162:1 gear ratio
- Wireless remote for the winch, the clutch and up to two accessories
- Motor temperature feedback and battery charge monitoring
- IP68 waterproof rating with advanced seals
- New high-performance motor, stronger gear train and sleeve-indrum brake
- Roller fairlead and cable line type
Electrical setup before install
A 12V winch draws from the vehicle’s electrical system, so the battery, alternator and wiring need to be ready for the load. Check that the battery is healthy and the charging system is working before a long pull. Heavy current can warm cables quickly, so keep the wiring short, secured and protected from heat and moving parts. A properly sized fuse or breaker protects the circuit when the motor draws high current.
The wire rope and roller fairlead carry the load into the mount, so the bumper or frame mount matters as much as the winch itself. Inspect the cable, fairlead and hook before each use, and replace any cable with kinks or broken strands. For long pulls, watch the battery charge and motor temperature readings on the remote, and let the winch cool when it runs warm.
- Check battery health before installing
- Keep high-current wiring short and secured
- Inspect the fairlead and hook after each use
Specifications
| Brand | Warn |
|---|---|
| Part number | 92820 |
| UPC | 12748048046 |
| Rated line pull | 12000 lbs. |
| Motor | 12V |
| Type of winch | Electric |
| Remote control | Wireless |
| Gear ratio | 162:1 |
| Size | 24.25 in. x 7.15 in. x 10.52 in. |
| Weight | 98 lbs. |
| Wire rope | 80 ft. of 3/8 |
| Fairlead | Roller |
| Line type | Cable |
| Waterproof rating | IP68 |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit, so it is not tied to a particular year, make or model. Review the mounting arrangement and electrical setup for your own vehicle before installation.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The motor is 12V, so confirm it suits your vehicle’s electrical system before installing the winch. Low-profile mounting requires the relocation kit, which is sold separately. Keep people clear of the cable while the winch is under load.
What’s included
The package includes a USB charging cable and car charger adapter for the wireless remote, along with the winch and its cable.
Not included: the relocation kit needed for low-profile mounting, which is sold separately.
