Trail Master 1.75 Inch Leveling Lift Kit with CGS Shocks – TM3317-40012

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 1.75-inch lift with front and rear coil spring spacers
  • CGS shocks included
  • Brakeline extension brackets included
  • Max tire size 35 inches
  • Lifetime warranty

Description

Overview

The Trail Master TM3317-40012 is a 1.75-inch leveling lift with CGS shocks. It uses front and rear coil spring spacers in a polyurethane black design, and it adds brakeline extension brackets so the factory lines reach the raised suspension. The maximum tire size is 35 inches.

The CGS shocks are included with the kit. The track bar drop is not included, and the kit has no bump stops. The kit is designed for straightforward installation and carries a lifetime warranty.

Key features

  • 1.75-inch lift
  • Front and rear coil spring spacers
  • CGS shocks included
  • Brakeline extension brackets included
  • Maximum tire size 35 inches
  • Straightforward installation
  • Lifetime warranty

Brakelines and tire clearance

Extending a lift usually means the factory brake hoses and lines are stretched further than they were designed for. Brackets give the lines the length they need, but the routing should still be checked for twisting, rubbing and kinks at full steering and full suspension travel. A brake check after any hose change is a sensible final step.

Tire clearance is the other main concern. A larger tire can contact the fender, inner liner or steering components at full lock, so test the clearance by turning slowly from side to side. Compare the tire diameter with the original to keep the speedometer reading accurate.

  • Brake line routing checked at full steering
  • Brake function tested before highway use
  • Clearance tested at full lock on both sides

Specifications

Brand Trail Master
Part number TM3317-40012
UPC 614901081954
Lift height 1.75 inches
Front lift method Coil spring spacers
Rear lift method Coil spring spacers
Shocks CGS shocks included
Brakeline Extension brackets included
Bump stops None
Track bar drop Not included
Spacer material Polyurethane
Finish Black
Maximum tire size 35 inches

Vehicle fitment

No vehicle is named for this kit. Confirm fit for your vehicle’s year, make, model and trim before choosing a kit that includes CGS shocks.

Installation notes

The brakeline extension brackets are included because the brake lines have to reach the lifted suspension. The 35-inch maximum tire size should be matched to the wheels and clearance on your vehicle, and an alignment is part of finishing the install.

The front and rear coil spring spacers set the height at both ends, and the brakeline extension brackets keep the factory lines long enough for the raised suspension. The CGS shocks come with the kit, so the lift and the shocks are sold together.

The maximum tire size is 35 inches. Check tire clearance against your wheels before installing the kit.

What’s included

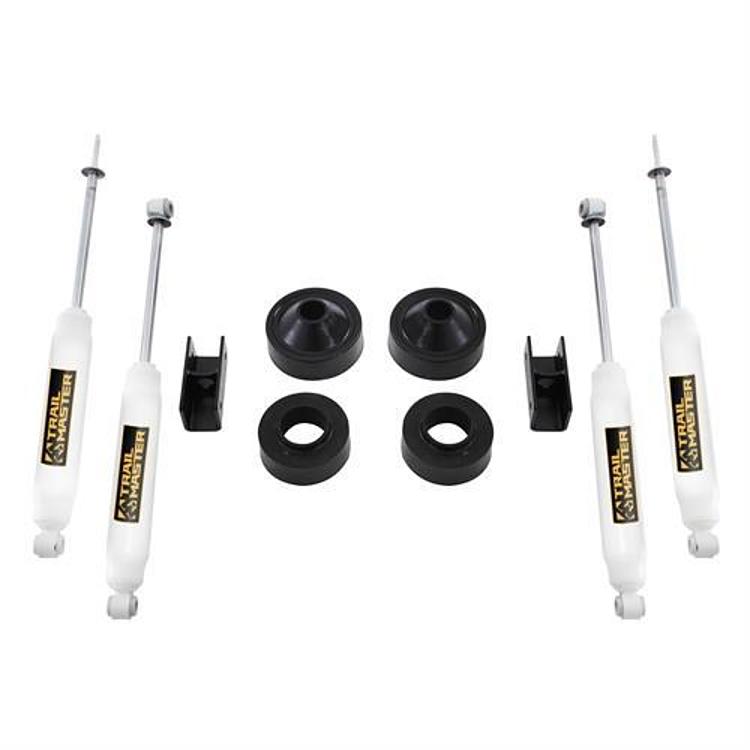

Front and rear coil spring spacers, CGS shocks and brakeline extension brackets.

Not included: a track bar drop.

SKU: T/MTM3317-40012 Category:

Specification

Shipping weight 32.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the TM3317-40012 include shocks?

Yes. CGS shocks are included with the kit, together with front and rear coil spring spacers and brakeline extension brackets. The lift is listed at 1.75 inches.

What is the largest tire this kit allows?

The maximum tire size is 35 inches. Check that the tire and wheel combination you plan to run stays within that size before installing the kit.

Which trucks does it fit?

No vehicle is named for this kit, so confirm fit for your year, make, model and trim before buying. Compare your own vehicle details with the kit, since a shock and lift package only works on the vehicles it suits.

What should I check on brake lines after a lift?

Look at the flexible hoses for twisting, rubbing and stretching at full steering and full suspension travel. Confirm the brackets sit clear of the frame, the lines have no kinks, and the brakes feel firm before driving at speed.
