Trail Master 3.0 Inch Leveling Lift Kit w/Rear Coil Spacers – TM501

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.0-inch front lift and 2-inch rear lift
  • Front strut spacers and rear coil spacers
  • Differential and skid plate spacers included
  • Aluminum spacers in black
  • Max tire size 33×12.50; lifetime warranty

Description

Overview

The Trail Master TM501 is a leveling lift that raises the front 3.0 inches with strut spacers and the rear 2 inch with coil spacers. Differential and skid plate spacers are included. The maximum tire size is 33×12.50, and the kit lifts both ends.

The spacers are aluminum with a black finish, and the kit comes with a lifetime warranty. It is designed for straightforward installation. No bump stops are included, the shock relocation bracket does not apply, and a track bar drop is not included.

Key features

  • 3.0-inch front lift with strut spacers
  • 2-inch rear lift with coil spacers
  • Differential and skid plate spacers
  • Aluminum spacers in black
  • Maximum tire size 33×12.50
  • Designed for straightforward installation.
  • Lifetime warranty

Setting driveline angles after a lift

A front lift changes the angle of the driveshafts and the front axle, so check driveline angles after installation. Angles that run too steep can cause vibration and wear at the U-joints. Differential and skid plate spacers set part of the drivetrain position, so inspect them when the lift is done.

Raising the front and rear by different amounts changes how the axles sit relative to each other. Have the driveshaft angles measured if the truck vibrates, and keep the U-joints in good shape. Brake lines and wiring may need a check after a lift, since they can be stretched or pinched.

Shock length matters too. Extended spacers can change damper travel, so inspect the shocks for bottoming out after a test drive. Check the lift parts for loose bolts after the first few trail runs and retighten as needed.

Specifications

Brand Trail Master
Part number TM501
UPC 614901097139
Front lift height 3.0 inches
Front lift method Strut spacers
Rear lift height 2 inch
Rear lift method Coil spacers
Shock relocation bracket Not applicable
Bump stops None
Track bar drop Not included
Spacer material Aluminum
Finish Black
Maximum tire size 33×12.50

Vehicle fitment

Confirm fit for your vehicle’s year, make, model and trim before ordering, including the 3.0-inch front and 2-inch rear lift.

Installation notes

Strut spacers raise the front at the strut mount, and the rear coil spacers raise the rear at the springs. Differential and skid plate spacers are included to set the drivetrain and skid plate position after the lift, so driveline angles should be checked once the work is done.

The rear coil spacers raise the rear 2 inch, and the front strut spacers raise the front 3 inch, so each end is set by its own part.

What’s included

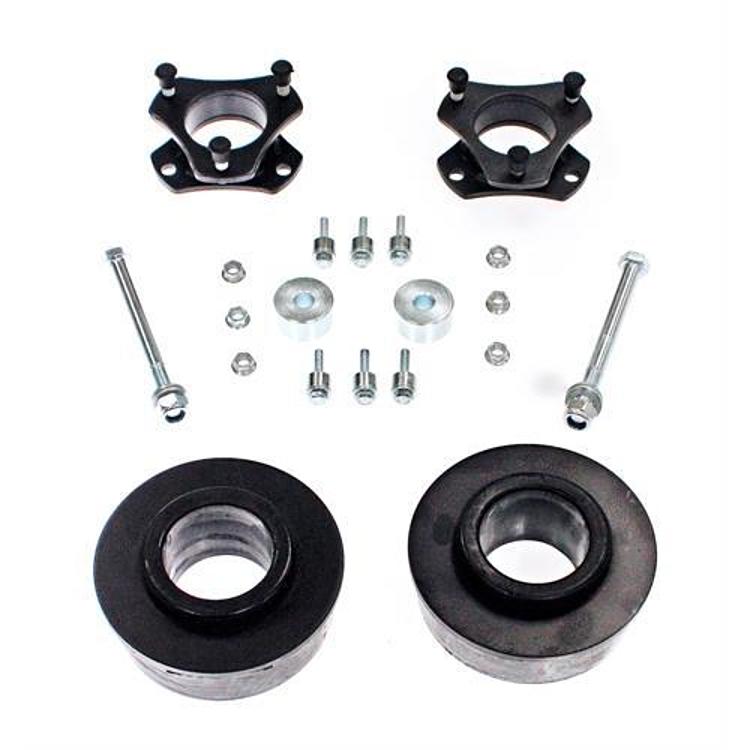

Front strut spacers, rear coil spacers, and differential and skid plate spacers.

Not included: a track bar drop.

SKU: T/MTM501 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 12.00 × 6.00 × 4.00 in
brands

Questions & Answers

Does the TM501 fit a specific truck?

Confirm fit for your truck's year, make, model and trim before choosing a kit with a 3.0-inch front and 2-inch rear lift.

How much rear lift does it add?

The rear lift is 2 inch, made with coil spacers. The front lift is 3.0 inches, made with strut spacers, so the TM501 lifts both ends.

What is the maximum tire size?

The maximum tire size is 33x12.50. Check that your planned tire and wheel stay within that size before installing the kit.

Will a leveling lift change steering?

It can. Raising the front changes steering geometry, so check the tie rod and drag link angles after installation. Get an alignment once the lift is set to keep tire wear even and steering predictable.
