Trail Master 1.5″ Front Spacer Lift Kit – TM195

Trail Master

Shop GMC Sierra 1500 Leveling Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master TM195 1.5 inch front strut spacer lift
  • Strut spacers for the front, 2WD models
  • Fits 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500
  • Trail Master kits include a lifetime warranty

Description

Overview

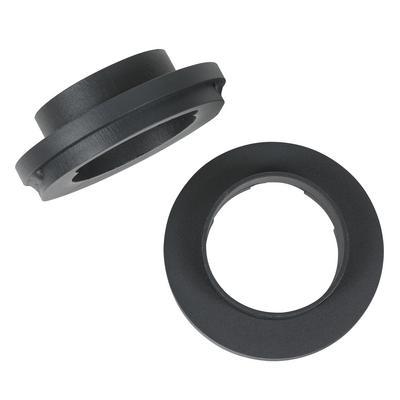

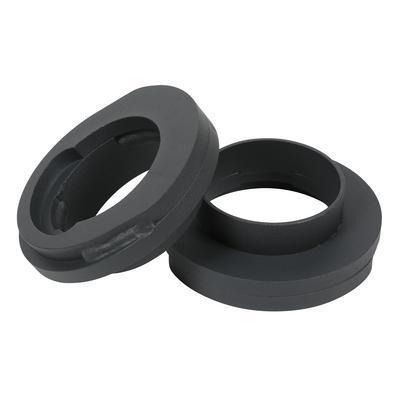

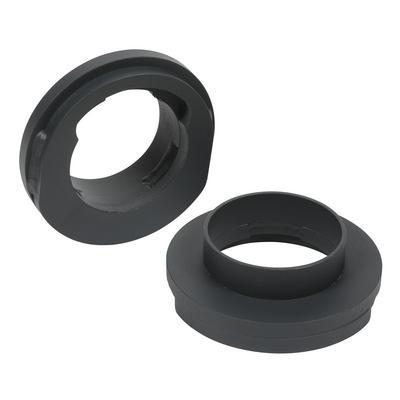

The Trail Master 1.5 Inch Front Spacer Lift Kit, part number TM195, raises the front of 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 2WD models by 1.5 inches using strut spacers.

Trail Master says its systems are designed to limit wear on factory ball joints and steering components while reducing noise and vibration. The kit is a front-only lift, so the rear height is not changed.

A strut spacer lift raises the front by placing a spacer between the strut and its mount, so the factory strut and coil stay in use. Because the kit lifts the front only, the rear height of the Silverado or Sierra stays the same, and a front-only lift can change the truck’s rake. Check the front and rear height after fitting, and confirm the track bar setup if your truck has one.

Key features

  • 1.5 inch front lift
  • Front strut spacers
  • Designed for 2WD models
  • Trail Master lifetime warranty on all its kits

Front lift and steering geometry

A strut spacer lift raises the front without changing the spring rate. The front suspension and steering geometry change slightly with the new height, so caster and toe should be checked after installation. Front-only lifts can also change the front-to-rear balance.

Check the track bar, brake lines and any sway bar links for stretch or binding after installation, and look for rubbing at full steering lock. Inspect ball joints and steering components at regular intervals, since a raised front puts extra angle on them.

Shocks and spacers can settle in the first weeks of use, so recheck the front height and the fasteners after the first few drives. Keep the rear height in mind when choosing tires, because the truck will sit slightly nose-up.

Specifications

Brand Trail Master
Part number TM195
Front lift height 1.5 inch
Front lift method Strut spacers
Drive 2WD models

Vehicle fitment

It fits the 1999–2006 Chevrolet Silverado 1500 in the Base, Hybrid, LS, LT, SS and WT trims, and the 1999–2006 GMC Sierra 1500 in the Base, C3, Denali, HT, Hybrid, SL, SLE, SLT and WT trims.

Silverado and Sierra years outside 1999–2006, 4WD models and other GM trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The strut spacers lift the front only, so check the rear height and any track bar setup before fitting.

Fitment

VehicleYearsTrims
Chevrolet Silverado 15001999–2006Base, Hybrid, LS, LT, SS, WT
GMC Sierra 15001999–2006Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Trail Master TM195 fit a 2WD Silverado 1500?

Yes. It fits the 1999–2006 Chevrolet Silverado 1500 in 2WD models. Confirm your year, model and trim, because 4WD models are not covered.

Is the TM195 a rear lift as well?

No. It is a front lift only, so the rear height stays the same. Check the rake after fitting, since a front-only lift changes it.

Is the kit covered by a warranty?

Yes. Every Trail Master kit comes with a lifetime warranty. Keep your purchase records with the kit in case you need to make a claim.

Will a front lift affect my tires or steering?

It can. Raising the front changes the angle of the front axle and steering, so tire rub and alignment may change. Check tire clearance at full steering lock and have the alignment set after installation.
