Trail Master 2.25 Inch Leveling Lift Kit with Rear NGS Shocks – TM101N

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.25-inch front lift with rear NGS shocks
  • Front coil spacers and hardware kit
  • Front lift only
  • Adjustable range from 1.5 to 2.25 inches
  • Lifetime warranty

Description

Overview

The Trail Master TM101N is a 2.25-inch leveling lift for late model GM trucks that comes with rear NGS shocks. It is the NGS-shock variant of the TM101 line. The front uses coil spacers, the rear is not lifted, and the kit includes a hardware kit for the install.

The TM101 line is designed to level a truck’s front to its rear and comes with a lifetime warranty. The TM101N uses coil spacers at the front instead of strut spacers, and it has no bump stops and no track bar drop.

Key features

  • 2.25-inch front lift
  • Rear NGS shocks included
  • Front coil spacers
  • Hardware kit included
  • Front lift only
  • Lifetime warranty

Coil spacers and rear NGS shocks

Coil spacers raise the front by sitting between the spring and its seat, so the spring itself keeps the same rate. This is a different approach from a strut spacer, which changes height at the strut mount. Because the spring stays in place, the lift is simpler to check, but the front end still needs an alignment after the change.

Rear NGS shocks are installed as a pair on the rear and set the damping the rear end rides on. When the front is lifted and the rear is not, the difference in height changes how the vehicle sits, so the shocks help keep the ride balanced. Look at the rear shock mounts for wear before installing, and replace shocks in pairs.

  • Check coil spacers for cracks or flattening
  • Inspect rear shock mount bushings
  • Recheck alignment after the front height is set

Specifications

Brand Trail Master
Part number TM101N
UPC 614901092912
Front lift height 2.25 inches
Front lift method Coil spacers
Rear lift method Front lift only
Shocks Rear NGS shocks included
Hardware Hardware kit included
Bump stops None
Track bar drop Not included

Vehicle fitment

It is designed for late model GM trucks. Check the year, make, model and trim of your truck before ordering.

Installation notes

The front coil spacers and the rear NGS shocks are installed together, and the hardware kit includes what is needed for the install. A 2.25-inch front lift changes the front alignment, so have it checked afterward.

What’s included

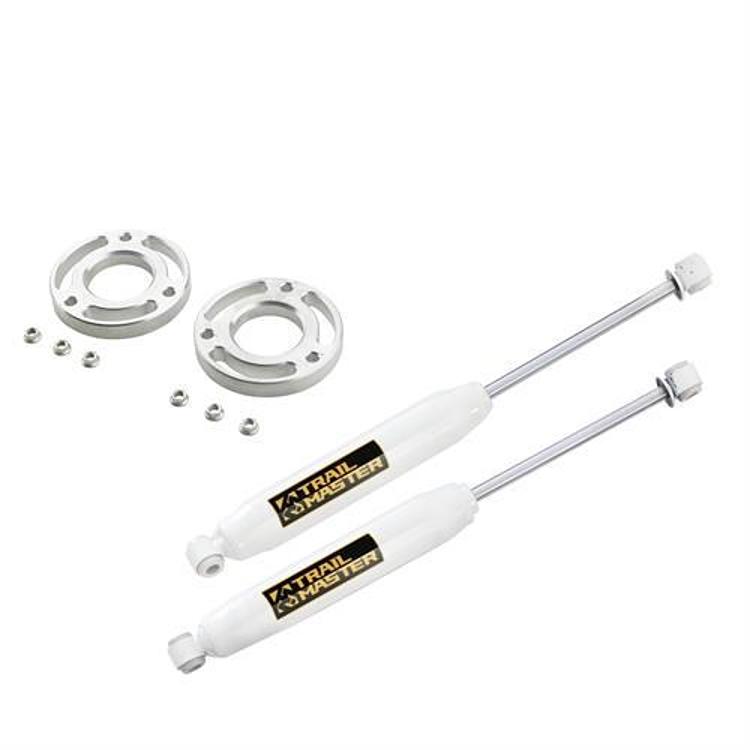

Front coil spacers, rear NGS shocks and a hardware kit.

Not included: a track bar drop.

SKU: T/MTM101N Category:

Specification

Shipping weight 17.80 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the TM101N include shocks?

Yes. Rear NGS shocks are included with the kit, along with front coil spacers and a hardware kit. The front lift is 2.25 inches and the rear is not lifted.

How does the TM101N differ from the TM101?

The TM101N comes with rear NGS shocks and uses front coil spacers, while the TM101 uses two-piece aluminum strut spacers. Both are 2.25-inch front lifts with a lifetime warranty.

Which trucks does the TM101N fit?

It is designed for late model GM trucks. Make sure the year, make, model and trim match your truck before choosing this kit.

What should be checked on coil spacers over time?

Inspect coil spacers at regular service intervals for cracks, flattening and any shifting on the spring seat. Check that the spacer is still centered on the spring after rough trail use, and tighten any hardware that has loosened.
