Trail Master 1.5 Inch Leveling Lift Kit with CGS Shocks – TM3415-20012

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 1.5-inch lift with front and rear coil spring spacers
  • CGS shocks included
  • Max tire size 31×10.50
  • Fits 2004-2006 Jeep Wrangler LJ and 1997-2006 Wrangler TJ
  • Lifetime warranty

Description

Overview

The Trail Master TM3415-20012 is a 1.5-inch leveling lift that comes with CGS shocks. It uses front and rear coil spring spacers in polyurethane with a black finish. It fits 2004 to 2006 Jeep Wrangler LJ models and 1997 to 2006 Jeep Wrangler TJ models, and the maximum tire size is 31×10.50.

The CGS shocks are included, so this version is the shock package in the 1.5-inch range. The track bar drop is not included, and no bump stops are listed. Trail Master backs the kit with a lifetime warranty.

Key features

  • 1.5-inch lift at the front and rear
  • CGS shocks included
  • Front and rear coil spring spacers
  • Maximum tire size 31×10.50
  • Polyurethane spacers in black
  • Designed for straightforward installation
  • Lifetime warranty

Choosing the right setup

Coil spring spacers raise the vehicle without changing the springs themselves, so the factory coils stay in place and the added height comes from the spacer thickness. Because the spacer sits between the spring and its seat, the suspension keeps its original travel geometry. Many owners pair a lift like this with larger tires, so tire clearance and rubbing at full steering lock should be checked after installation.

Shocks and track bar geometry are the parts most often replaced alongside a leveling kit. When the track bar drop is not part of the package, the existing bar may need its own adjustment or a separate drop bracket to keep the axle centered. Inspect bushings, sway bar links and steering components for wear before the install, since a raised body stresses worn joints more than a stock setup does.

  • Inspect control arm bushings after the first few drives
  • Re-torque spacer hardware after the initial trail runs
  • Recheck alignment after any suspension change

Specifications

Brand Trail Master
Part number TM3415-20012
Lift height 1.5 inches
Front lift method Coil spring spacers
Rear lift method Coil spring spacers
Shocks CGS shocks included
Bump stops None
Track bar drop Not included
Spacer material Polyurethane
Finish Black
Maximum tire size 31×10.50

Vehicle fitment

It fits the 2004 to 2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon, and the 1997 to 2006 Jeep Wrangler (TJ) in several trims.

The list does not include the JK or JL generations. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The CGS shocks are supplied with this version, so the factory shocks are not reused. The coil spring spacers raise the front and rear, and the alignment is checked after the new shocks and spacers are fitted.

The CGS shocks are supplied with the kit, so the existing shocks are not reused. Front and rear coil spring spacers set the 1.5-inch height at both ends.

What’s included

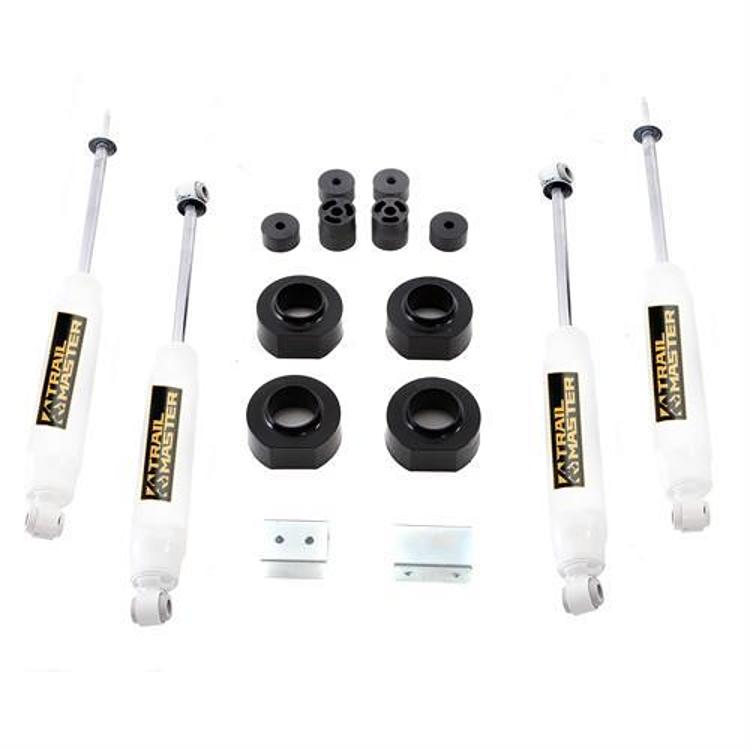

Front and rear coil spring spacers, CGS shocks and polyurethane spacers in black.

Not included: a track bar drop.

SKU: T/MTM3415-20012 Category:

Specification

Shipping weight 23.65 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM3415-20012 include shocks?

Yes. CGS shocks are included, along with front and rear coil spring spacers. The lift height is 1.5 inches, and the maximum tire size is 31x10.50.

Which Wrangler generations are covered?

It fits the 2004 to 2006 Wrangler LJ and the 1997 to 2006 Wrangler TJ. JK and JL generations are not covered, so check fit for your vehicle's year, model and trim before ordering.

Is a track bar drop included?

No. The track bar drop is not included with the TM3415-20012. The kit uses front and rear coil spring spacers and CGS shocks instead.

Do the shocks need to be replaced with the lift?

Replacing the shocks is common with a leveling kit because the higher spring position changes how far each shock extends. This kit comes with CGS shocks, so the factory shocks are not reused. After installation, check the new shocks for leaks and confirm the alignment once the height is set.
