Trail Master 3.0 Inch Leveling Lift Kit with Rear Block – TM504

Trail Master

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.0-inch front lift with strut spacers
  • 1.0-inch rear lift with blocks and U-bolts
  • Differential drop spacers included
  • Aluminum spacers in black finish
  • Maximum tire size 33×12.50; lifetime warranty

Description

Overview

The TM504 raises the front 3.0 inches with strut spacers and the rear 1.0 inch with 1-inch blocks and U-bolts. Differential drop spacers come with the kit, and the maximum tire size is 33×12.50.

The spacers are aluminum in a black finish. The lift blocks and U-bolts are included, and the kit is designed to limit wear on factory ball joints and steering components while keeping the ride quiet. No bump stops are included, and a track bar drop is not included.

Key features

  • 3.0-inch front lift with strut spacers
  • 1.0-inch rear lift with blocks and U-bolts
  • Differential drop spacers included
  • Aluminum spacers in black finish
  • Maximum tire size 33×12.50
  • No bump stops; track bar drop not included
  • Lifetime warranty

Choosing the right setup

A front lift and a rear block lift change the angles between the axles, transfer case and driveshafts, so the two ends should be planned together. When the front rises more than the rear is raised, driveline angles can shift. Measure the ride height at all four corners before and after the install, and note any difference that is larger than expected. Small mismatches are easier to correct early than after a long road trip.

Shock length and brake hose length are often the next parts to review. Longer shocks or extended brake lines may be needed once the truck is raised, and the factory bump stops may no longer engage at the new height. Replacing worn ball joints or tie rod ends at the same time keeps the steering and front end tight under the new geometry, which is a common part of any lift.

  • Measure ride height at all four corners
  • Check shock length at the new height
  • Inspect brake hoses for stretch
  • Consider ball joints and tie rod ends while the front is open

Specifications

Brand Trail Master
Part number TM504
UPC 614901097368
Front lift height 3.0 inches
Front lift method Strut spacers
Rear lift height 1.0 inch
Rear lift method Lift blocks and U-bolts
Shock relocation bracket Not applicable
Bump stops None
Track bar drop Not included
Spacer material Aluminum
Finish Black
Maximum tire size 33×12.50

Vehicle fitment

The TM504 names no vehicle and lists no fitment. Its front and rear lift figures are general amounts, so a truck’s year, make, model and trim determine whether the kit is right for it.

Installation notes

Strut spacers raise the front at the strut mount, while the 1-inch rear blocks sit with U-bolts at the rear axle. Differential drop spacers lower the differential to help driveline angles after a lift, so check those angles along with the alignment once the kit is installed.

Front and rear heights are set by different parts on this kit, so measure both ends after the install to confirm they match the planned setup.

What’s included

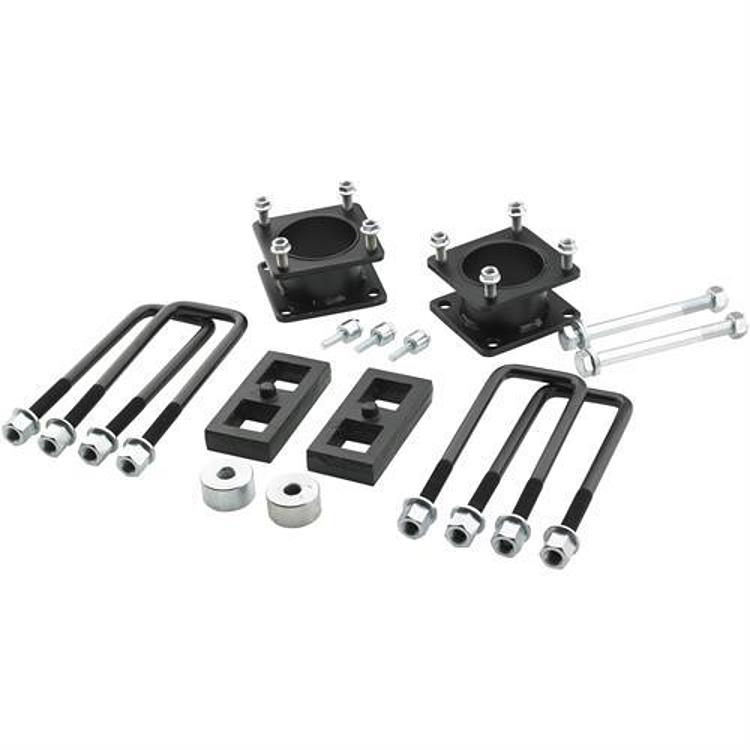

Front strut spacers, 1-inch rear blocks with U-bolts, and differential drop spacers.

Not included: a track bar drop.

SKU: T/MTM504 Category:

Specification

Shipping weight 19.00 lbs
Package dimensions 16.00 × 13.00 × 5.00 in
brands

Questions & Answers

Which vehicles does the TM504 fit?

Confirm fit for your vehicle's year, make, model and trim before ordering the TM504. A 3.0-inch front lift paired with a 1.0-inch rear lift should be checked against your truck's current heights and suspension before installation.

Does the rear lift come with blocks?

Yes. The rear is raised with 1-inch blocks and U-bolts, and differential drop spacers come with the kit. A track bar drop is not included with it.

What is the maximum tire size?

The maximum tire size for the TM504 is 33x12.50. Check that your planned tire and wheel combination stays within that figure before installing the kit, and keep the differential drop spacers in mind when measuring clearance.

Why check brake hoses after a lift?

Brake hoses are checked because a raised suspension can stretch them at full droop. A visual inspection and a test of the pedal feel after the install help confirm the hoses are not under strain. Replace any hose that looks cracked or tight.
