TeraFlex 4 Inch Lift Kit – 1156400

TeraFlex

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex 1156400 4 inch lift for four-door Jeep Wrangler JK
  • Four extended length coils and upper and lower FlexArms, front and rear
  • Front sway bar disconnects, rear track bar bracket and bump stops
  • Driveline modifications required
  • Max tire size 37×12.50; shocks not included; part number 1156400

Description

Overview

The TeraFlex 1156400 is a 4 inch suspension system for four-door Jeep Wrangler JK models. It allows the use of tires up to 37 inches and is built for serious trail use as a complete system.

The system includes four extended length coils, upper and lower FlexArms for both the front and the rear, front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware. TeraFlex recommends aftermarket wheels with 4.5 inch backspacing or less for the 37 inch tire.

Shocks are not included with this kit. Driveline modifications are required with the system, so check the driveshaft and driveline angles before installation.

Key features

  • 4 inch lift with extended length coils
  • Upper and lower FlexArms at the front and rear
  • Front sway bar disconnects
  • Rear track bar bracket
  • Bump stops and all necessary hardware
  • Up to 37 inch tires

Full flex and driveline work

Full flex upper and lower control arms let the axles articulate and change the front and rear geometry, which is why alignment is part of the job rather than an afterthought. Four extended length coils raise the body, and the new ride height affects how steering and brakes feel, so a careful road test after installation is worth the time.

Driveline work is usually the first thing to plan around. A higher ride steepens the driveshaft angles, and the resulting vibration can accelerate wear on the joints and the pinion. Measuring the angles at full droop and planning any shaft modifications before the first trail run keeps the system dependable. Shock length should be checked at the same time as the geometry.

  • Measure driveline angles before the first trail run
  • Check alignment after installation
  • Confirm shock length against the new ride height

Specifications

Brand TeraFlex
Part number 1156400
UPC 843885020189
Lift height range 3 to 4.99 inches
Suspension type Short arm, with full flex upper and lower control arms
Rear lift method Coil springs
Body style Four-door models
Max tire size 37×12.50
Shocks Not included

Vehicle fitment

It fits JK Wrangler, Rubicon and Unlimited models. The JK chassis covers the 2007–2018 Wrangler generation.

The short details specify four-door models, so two-door Wranglers are not covered by this configuration. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Driveline modifications are required with this system, and the full flex control arms change the front and rear geometry. Check the driveshaft, the alignment and the shock length after installation.

What’s included

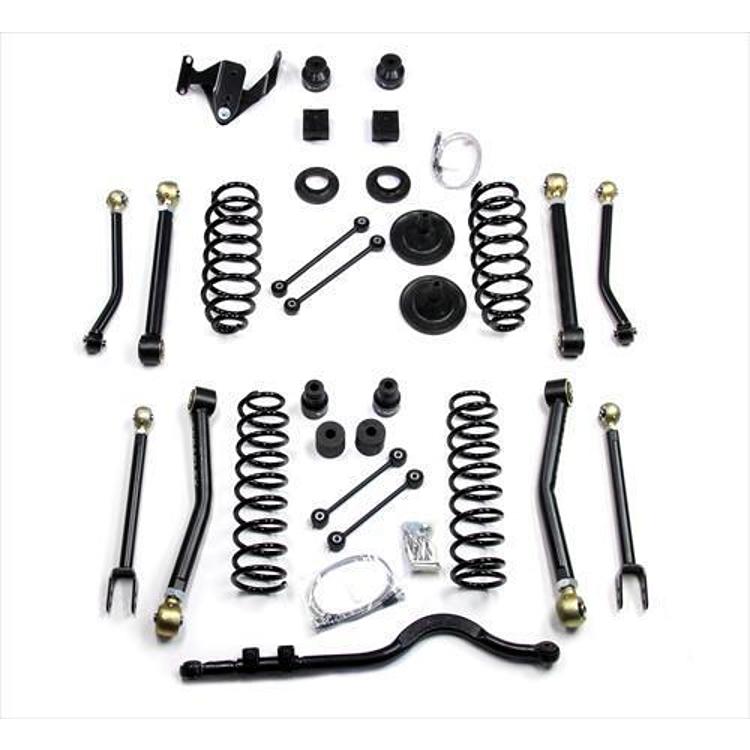

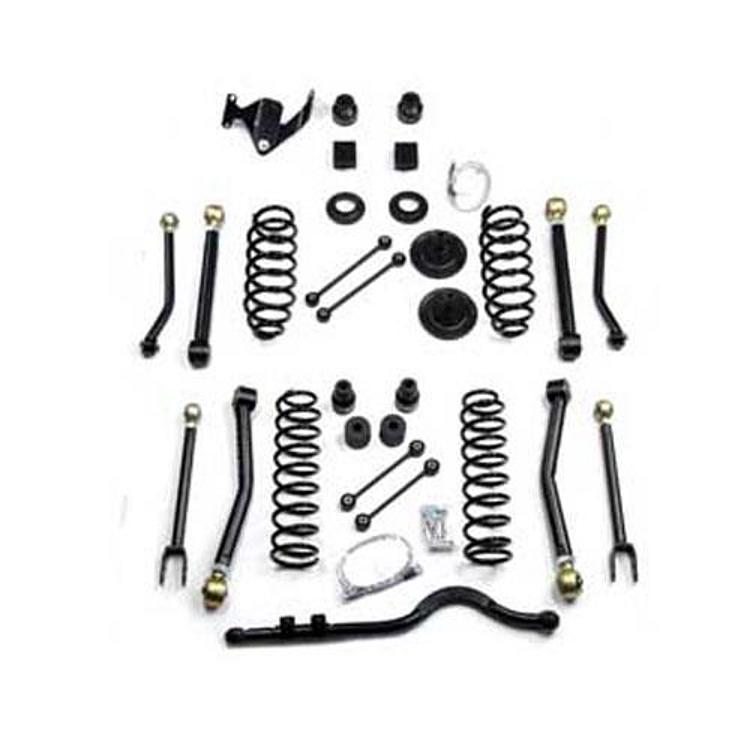

The kit includes four extended length coils, upper and lower FlexArms for the front and rear, front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware.

Not included: Shocks.

SKU: TER1156400 Category:

Specification

Shipping weight 175.00 lbs
Package dimensions 35.50 × 21.50 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TeraFlex 1156400 fit a Jeep Wrangler JK Unlimited?

Yes. It fits JK Wrangler, Rubicon and Unlimited models, and the JK chassis covers 2007–2018 Wranglers. Confirm the body style before ordering.

What tire size does the 1156400 allow?

It allows the use of tires up to 37 inches. Aftermarket wheels with 4.5 inch backspacing or less are needed for that tire size, and shocks are not included.

Does the 1156400 need driveline work?

Yes. Driveline modifications are required with this system, so the driveshaft and driveline angles should be checked before installing it. Shocks are not included, so plan for those separately.

How often should driveline components be inspected on a FlexArm system?

Inspect the U-joints, slip yoke and pinion seals at every oil change and after hard trail use. Look for play, squeaks, vibration at speed and grease leaks. Catching wear early helps prevent driveline failure far from home.
