Overview
The Rubicon Express JKR444 is a 4.5 inch extreme duty radius front and rear 4-link long arm kit for the Jeep Wrangler JK. It is sold without shocks, and the kit is part of the Rubicon Express JK suspension offering.
The system uses adjustable chromoly upper and lower control arms with Super-Flex joints and PT-MEG Super-Ride bushings. Rubicon Express says these parts keep the articulation of the arms open while providing control.
The kit includes a full width heavy-duty transmission crossmember for added durability and frame rigidity. The crossmember is designed for installation without welding. An optional belly pan and a CNC machined steering knuckle are available as upgrades.
Systems can be ordered in 3.5, 4.5 and 5.5 inch lift heights, with optional high performance monotube shocks. The kit is made in the USA and carries the Rubicon Express Advantage Lifetime Warranty.
Key features
- 4.5 inch lift height
- Radius front and rear 4-link long arm system
- Adjustable chromoly upper and lower control arms
- Super-Flex spherical ball joints
- PT-MEG Super-Ride bushings
- Full width heavy-duty transmission crossmember
- No welding required
- Optional belly pan and CNC machined steering knuckle
Driveline and axle angles
Changing to a 4.5 inch lift moves the axle and changes the driveline angles, so the pinion and driveshaft need attention after installation. Radius arms and 4-link geometry are built to keep those angles controlled, but the angles still have to be checked and set with the lift in place. Angles that are too steep can cause vibration, premature joint wear and noise.
Longer long arms and a heavy-duty crossmember change how load moves through the frame and drivetrain, which is why the mounts and fasteners deserve a look after the first drives. Inspect the driveline joints for play and listen for clicks or vibration. Heavier tires or a later change in lift height can shift the angles again, so re-checking is worthwhile.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKR444 |
| Lift height | 4.5 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme duty radius front and rear 4-link long arm |
| Control arm material | Chromoly, adjustable |
| Ball joints | Super-Flex spherical |
| Bushings | PT-MEG Super-Ride |
| Crossmember | Full width heavy-duty transmission |
| Shocks | Not included |
| Warranty | Rubicon Express Advantage Lifetime Warranty |
| Made in | USA |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) as part of the Rubicon Express JK suspension line.
The JL, the Gladiator, and the TJ and LJ are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Changing to a 4.5 inch lift changes axle location and driveline angles, so have the pinion and driveline angles checked after installation. Shocks are not included, so plan the shock selection before the install.
What’s included

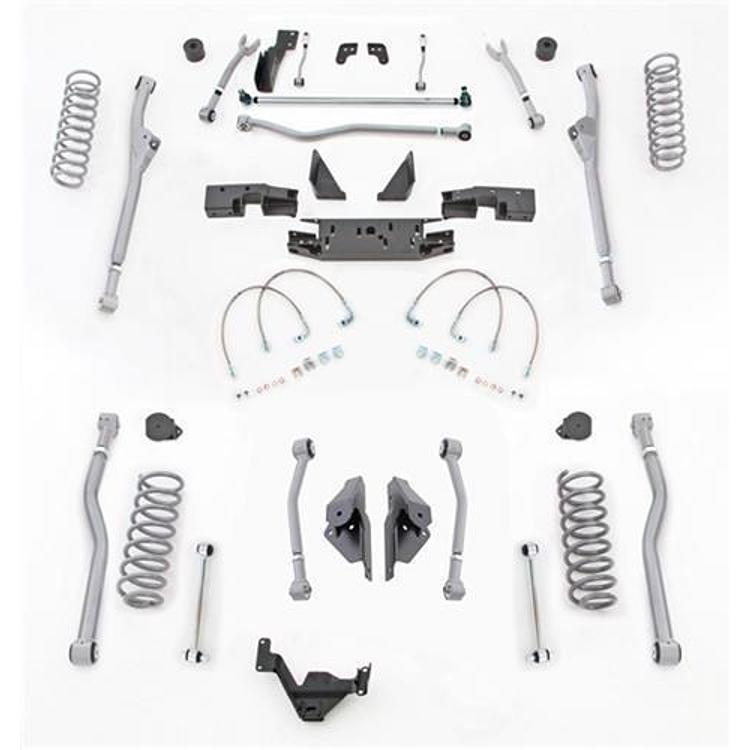

Radius front and rear 4-link long arm components, adjustable chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-MEG Super-Ride bushings and a full width heavy-duty transmission crossmember.
Not included: shocks, which are offered as an optional upgrade.
