Overview
The Rubicon Express JKR423 is a 3.5 inch 4-link front and radius rear extreme duty long arm kit for the Jeep Wrangler JK. It is sold without shocks and belongs to the Rubicon Express JK suspension line.
The kit uses adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints and PT-MEG Super-Ride bushings. The joints are designed to keep the arms articulating freely.
A full width heavy-duty transmission crossmember is included. It is designed to add durability and frame rigidity, and installation requires no welding.
The kit is offered in 3.5, 4.5 and 5.5 inch lift heights, with optional belly pan and CNC machined steering knuckle upgrades. It is made in the USA and carries the Advantage Lifetime Warranty.
Key features
- 3.5 inch lift height
- 4-link front and radius rear long arm system
- Adjustable chromoly upper and lower control arms
- Super-Flex spherical ball joints
- PT-MEG Super-Ride bushings
- Full width heavy-duty transmission crossmember
- No welding for installation
Setup after a lift
A 3.5 inch 4-link front and radius rear arm setup changes how the axles move, so the first step after installation is a geometry check. Inspect the crossmember bolts, the arm bushings and the ball joints, then set alignment and driveline angles before the first long drive.
Four-link front arms and radius rear arms both depend on bushing condition. Super-Ride bushings should be checked for cracking, and joints for play. Chromoly arms are built for hard use, but any bend or impact damage should be assessed right away.
Choosing shocks is part of the setup, since the kit is sold without them. Select a set that suits the 3.5 inch lift and your driving, and check the travel length against the new arm position. Keep the belly pan and steering knuckle upgrades in mind if you plan further work.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKR423 |
| Lift height | 3.5 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme duty 4-link front and radius rear long arm |
| Control arm material | Chromoly, adjustable |
| Ball joints | Super-Flex spherical |
| Bushings | PT-MEG Super-Ride |
| Crossmember | Full width heavy-duty transmission |
| Shocks | Not included |
| Warranty | Rubicon Express Advantage Lifetime Warranty |
| Made in | USA |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) because it belongs to the Rubicon Express JK suspension line.
Other generations are not part of this fitment, including the JL, the Gladiator, and the TJ and LJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 3.5 inch lift with this kit changes axle location and driveline angles, so check them after installation. The kit is sold without shocks, so choose them to match the new geometry.
What’s included

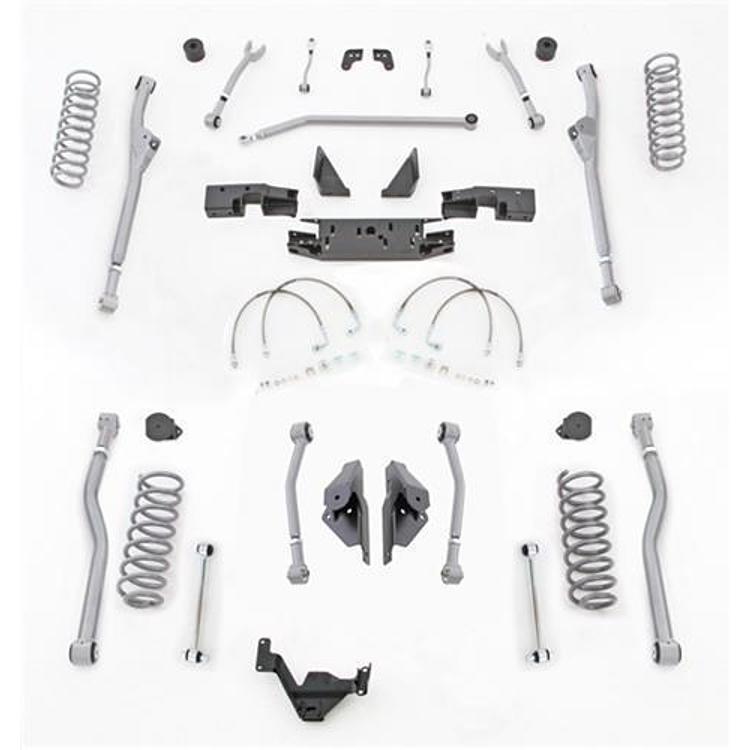

4-link front and radius rear long arm components, adjustable chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-MEG Super-Ride bushings and a full width heavy-duty transmission crossmember.
Not included: shocks.
