Overview
The TeraFlex 1251200 is a 3 inch lift kit with shocks for the four-door 2007–2015 Jeep Wrangler (JK). The kit uses 3 inch extended length coil springs and includes shocks, so the lift is supplied as a complete package in this configuration.
The kit includes front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all the necessary hardware. It allows a tire of up to 35 inches, with aftermarket wheels of 4.5 inch backspacing or less.
The maximum tire size is 35×12.50, and the shocks are 9550 VSS at the front. The lift height range is 3 to 4.99 inches.
Key features
- 3 inch lift with extended length coils
- Shocks included
- Front sway bar disconnects
- Rear sway bar links
- Rear track bar bracket
- Bump stops
- Max tire size 35×12.50
Ride height and sway bar setup
Extended length coils raise the body and change the spring feel compared with stock. Owners often notice a firmer or taller stance, and the front end may sit differently under load. Because shocks come with this kit, the damping is already matched to the lift, which takes some guesswork out of the install.
Front sway bar disconnects reduce roll resistance at the front, which helps the axle articulate on uneven ground but makes the truck lean more on pavement. Bump stops limit suspension travel and should be checked for cracks as the coils settle. The track bar bracket keeps the axle centered, so inspect its bolts and bushings during service.
- Bump stop condition
- Sway bar disconnect use
- Track bar bushing wear
- Tire clearance at full compression
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1251200 |
| UPC | 843885039419 |
| Lift | 3 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front shocks | 9550 VSS |
| Body style | Four-door models |
| Max tire size | 35×12.50 |
Vehicle fitment
It fits the 2007–2015 Jeep Wrangler (JK), including the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.
It fits four-door models, and two-door Wranglers are not covered by this configuration. Years outside 2007–2015 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The front sway bar disconnects and rear sway bar links change the sway bar setup, so check the sway bar operation after installation. The extended length coils change the ride height, so confirm the alignment as well.

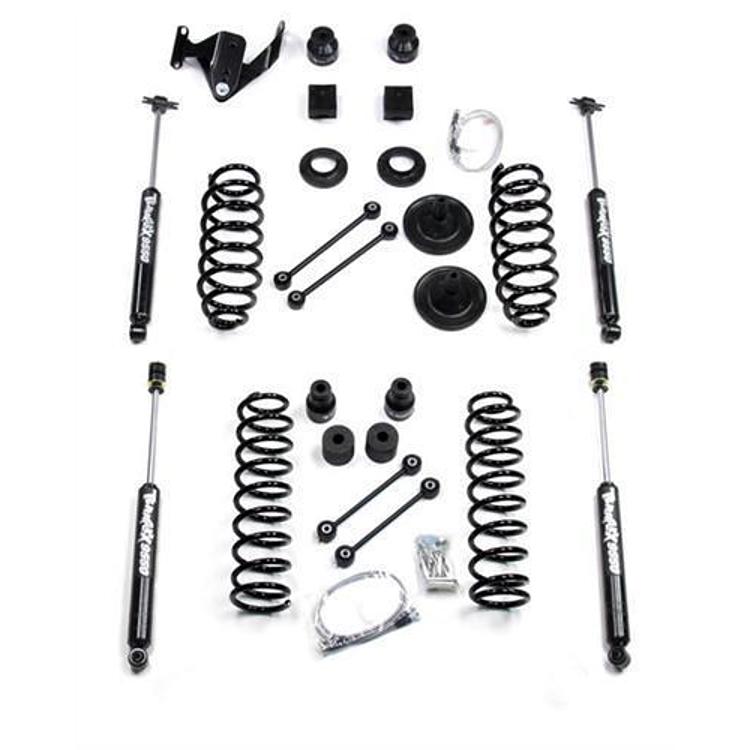

What’s included
The kit includes 3 inch extended length coil springs, shocks, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware.
