TeraFlex 3 Inch Flexarm Lift Kit – 1156302

TeraFlex

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex 1156302 3 inch Flexarm lift for 2007–2015 Jeep Wrangler JK
  • Upper and lower Flex Arms with front and rear coil springs
  • Extended brake lines and rear track bar bracket
  • Sway bar extended links and bump stops
  • Part number 1156302; shocks not included

Description

Overview

The TeraFlex 1156302 is a 3 inch Flexarm lift kit for the 2007–2015 Jeep Wrangler (JK). It uses upper and lower Flex Arms, with front and rear coil springs.

The system includes a 3 inch lift, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware. It also includes extended brake lines and extended sway bar links. It allows a tire of up to 35 inches, with aftermarket wheels of 4.5 inch backspacing or less.

Shocks are not included, so the existing shocks are used or new shocks are fitted separately.

Key features

  • 3 inch lift
  • Upper and lower Flex Arms
  • Front and rear coil springs
  • Extended brake lines
  • Extended sway bar links
  • Rear track bar bracket
  • Bump stops and all necessary hardware

Flex Arms and brake lines

Flex Arms swap the stock control arms for adjustable units that change the way the axle locates under the vehicle. That makes alignment and geometry the main things to get right after installation. Pinion and caster adjustments should be made in small steps, followed by a road test on a smooth surface before heading out on rough trails.

Extended brake lines and sway bar links are part of this setup, so they should be inspected once the lift settles. Look for kinks, stretched lines and rubbing against the frame or tires. Because shocks are not included, shock selection is an open choice, and the ride height set by the arms and springs should guide it.

  • Make pinion and caster adjustments in small steps
  • Inspect extended brake lines for kinks or rubbing
  • Recheck sway bar link bushings after the first drives

Specifications

Brand TeraFlex
Part number 1156302
UPC 843885020141
Lift 3 inch
Lift height range 3 to 4.99 inches
Suspension type Short arm
Rear lift method Coil springs
Tire clearance Up to 35 inches
Shocks Not included

Vehicle fitment

The kit fits the 2007–2015 Jeep Wrangler (JK), covering 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.

Other model years and the JL are outside this fitment. Check year, model and trim against your vehicle before ordering.

Installation notes

The Flex Arms change the control arm geometry, so the alignment should be checked after installation. The extended brake lines are part of the kit and should be checked once the lift is in place.

What’s included

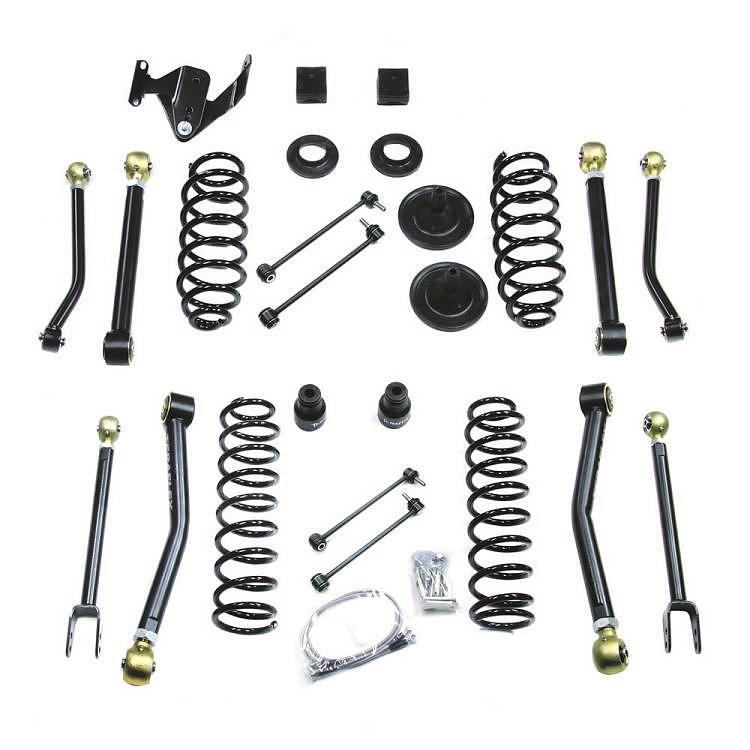

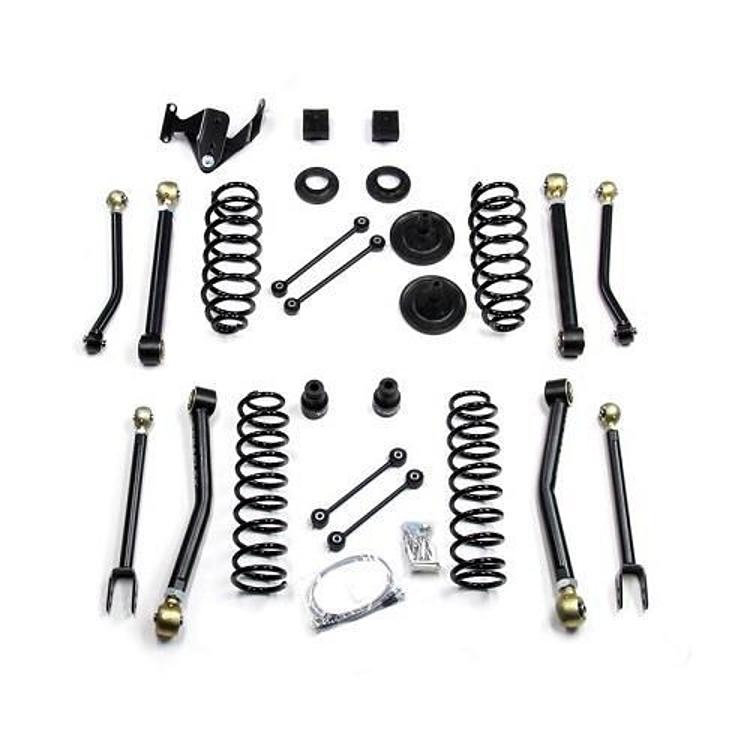

The kit includes upper and lower Flex Arms, front and rear coil springs, extended brake lines, sway bar extended links, a rear track bar bracket, bump stops and all necessary hardware.

Not included: Shocks.

SKU: TER1156302 Category:

Specification

Shipping weight 154.00 lbs
Package dimensions 26.00 × 19.00 × 13.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201570th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TeraFlex 1156302 fit a 2010 Jeep Wrangler JK?

Yes. It fits the 2007–2015 Jeep Wrangler (JK), so a 2010 model falls inside that range. Confirm the trim and body style before ordering.

Are shocks included with the 1156302?

No. Shocks are not included, so use existing shocks or fit new ones that suit the 3 inch lift. The Flex Arms and coil springs set the height, so check the shock length against the new ride height.

What tire size does the 1156302 allow?

The kit allows a tire of up to 35 inches. Aftermarket wheels with 4.5 inch backspacing or less are required, and shock length should be checked with the new ride height.

How often should Flex Arm bushings be checked?

Check the bushings at each oil change and after any hard trail use. Look for cracking, play in the joints and grease leaking from the sleeves. Replace worn bushings promptly, since loose arms affect alignment, steering feel and tire wear.
