Overview
The TeraFlex 1456200 is a 3 inch FlexArm lift kit for the 2007–2015 Jeep Wrangler (JK), and it fits the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models. It uses adjustable front lower and rear upper FlexArms with 3 inch lift coil springs.
The kit also includes front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware. It allows a tire of up to 35 inches, with aftermarket wheels of 4.5 inch backspacing or less.
TeraFlex recommends driveshaft modifications with this suspension system, and 2012 and later JKs need exhaust spacers, part number 2610000, or another exhaust modification for driveshaft clearance. The short details list shocks as not included.
Key features
- 3 inch lift
- Adjustable front lower FlexArms
- Adjustable rear upper FlexArms
- 3 inch lift coil springs
- Front sway bar disconnects
- Rear sway bar links and rear track bar bracket
- Bump stops and all necessary hardware
Shock and FlexArm setup
A 3 inch lift with FlexArms relies on the arm length and mounting points to hold the axle, so the adjustment should be set evenly on both sides. Short arm systems change the way the axle moves through its travel, and the bump stops help limit movement at full compression. A stock style shock is usually too short for a lift of this height, so the shock length should be measured before ordering.
Once the arms are installed, check bushing condition and the fasteners that hold the FlexArm brackets to the frame. Tighten and recheck the bolts after the first few trail runs, since new arms settle into their mounts. Owners who run larger tires often find that the front sway bar disconnect and the rear sway bar links need periodic greasing and inspection to keep the suspension moving freely.
- Measure shock length before ordering
- Set FlexArm adjustment evenly side to side
- Recheck bolts after the first trail runs
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1456200 |
| UPC | 843885030416 |
| Lift | 3 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Short arm |
| Rear lift method | Coil springs |
| Tire clearance | Up to 35 inches |
| Shocks | Not included |
Vehicle fitment
It fits the 2007–2015 Jeep Wrangler (JK), including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.
The fit covers Wrangler model years 2007–2015 only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Driveshaft modifications are recommended with this kit, and 2012 and later JKs require exhaust spacers or another exhaust modification for driveshaft clearance. The FlexArms change the control arm geometry, so check the alignment and the driveline angles after installation. The bump stops and rear track bar bracket are also part of the rear setup and should be checked after installation.

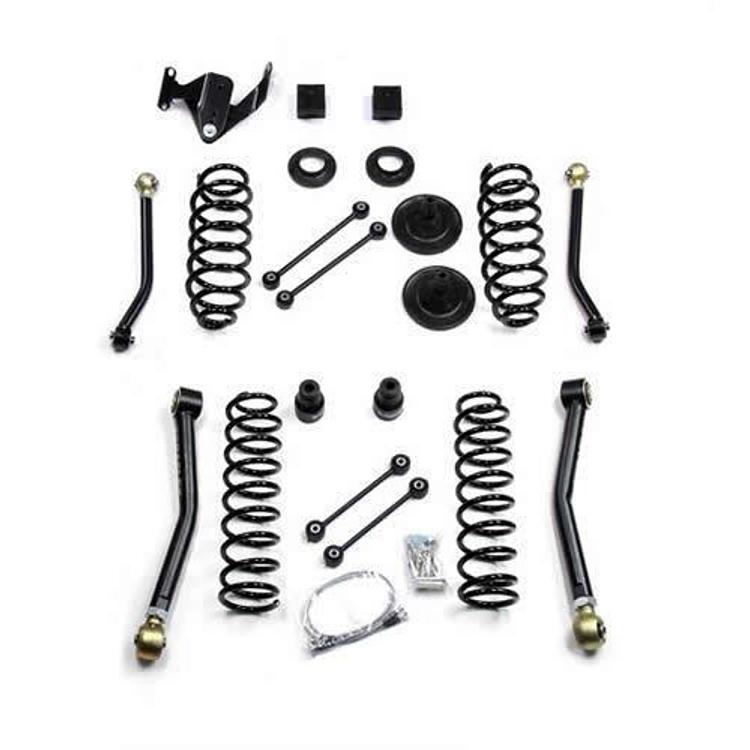

What’s included
The kit includes 3 inch lift coil springs, adjustable front lower and rear upper FlexArms, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all necessary hardware.
Not included: Shocks.
