TeraFlex 3 Inch FlexArm Lift Kit – 1456202

TeraFlex

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex 1456202 3 inch FlexArm lift for 2007–2015 Jeep Wrangler JK
  • Front lower and rear upper FlexArms
  • Front sway bar disconnects and rear sway bar links
  • Rear track bar bracket and bump stops
  • Part number 1456202; up to 35 inch tires

Description

Overview

The TeraFlex 1456202 is a 3 inch FlexArm lift for the 2007–2015 Jeep Wrangler (JK). It fits the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models. The main suspension change uses front lower FlexArms and rear upper FlexArms.

The system includes a 3 inch lift, front sway bar disconnects, rear sway bar links, a rear track bar bracket and bump stops. It allows a tire of up to 35 inches, with aftermarket wheels of 4.5 inch backspacing or less.

Confirm the shock package before ordering.

Key features

  • 3 inch lift
  • Front lower FlexArms
  • Rear upper FlexArms
  • Front sway bar disconnects
  • Rear sway bar links
  • Rear track bar bracket
  • Bump stops

FlexArm geometry and alignment

FlexArms replace part of the stock control arm geometry, so the lift changes how the axle and wheels move. Front lower and rear upper arms carry the load differently from stock links, which is why alignment matters after the install. Pay attention to tire wear patterns during the first few drives.

Sway bar disconnects let the axle articulate further, but they also remove some body roll control on pavement. Rear sway bar links and the track bar bracket must match the arm geometry, so keep them in mind when checking fit. Bushings at each link should be inspected for cracks and play.

Choosing wheels and tires goes hand in hand with the arm angles. Backspacing outside the suited range can shift the tire toward the fender, so check clearance at full steering lock. Re-check the bolts on the arms and brackets after the first trail outings, and keep a record of alignment checks.

Specifications

Brand TeraFlex
Part number 1456202
UPC 843855030279
Lift 3 inch
Lift height range 3 to 4.99 inches
Suspension type Short arm
Rear lift method Coil springs
Tire clearance Up to 35 inches

Vehicle fitment

The 2007–2015 Jeep Wrangler JK is the fit for this kit, across the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.

Wranglers from other model years are not covered by this lift. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The FlexArms change the control arm geometry, so the alignment should be checked after the lift is installed. The rear track bar bracket and the sway bar links also change the stock parts, so check their fit and the driveline angles.

What’s included

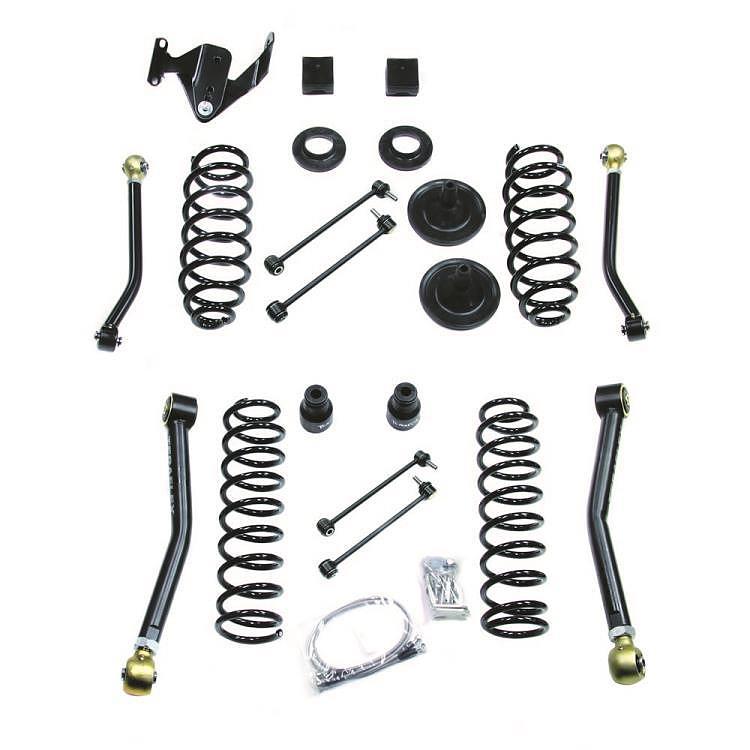

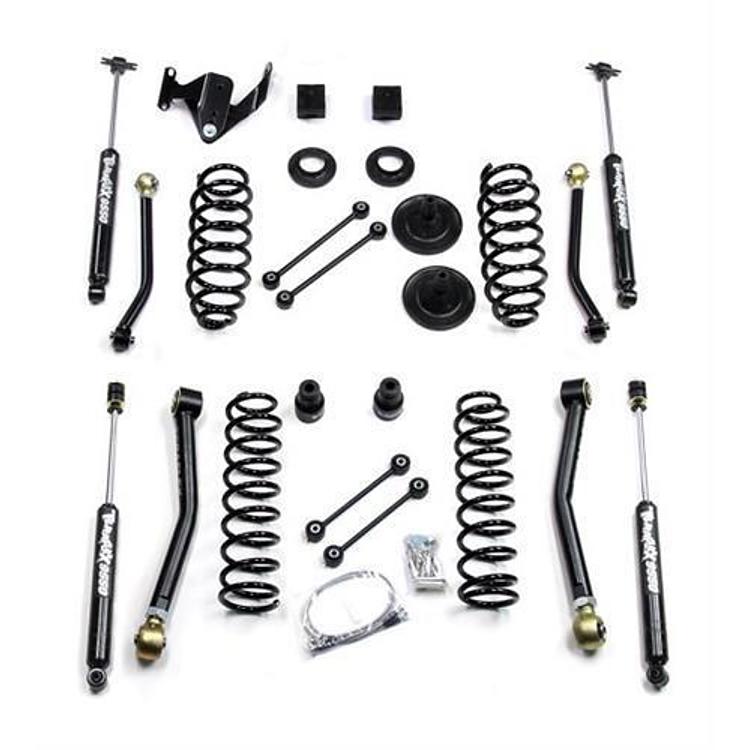

The kit includes a 3 inch lift, front lower and rear upper FlexArms, front sway bar disconnects, rear sway bar links, a rear track bar bracket and bump stops.

SKU: TER1456202 Category:

Specification

Shipping weight 137.00 lbs
Package dimensions 27.00 × 20.00 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201570th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TeraFlex 1456202 fit a 2009 Jeep Wrangler JK?

Yes. The 1456202 is made for 2007–2015 Jeep Wrangler JK models, so a 2009 model falls within that range. Confirm the year and trim against the fitment before ordering.

Are shocks included with the 1456202?

Confirm the shock package before ordering so you know whether new shocks are needed for the 3 inch lift. Check the shock length against the new ride height before installing the kit.

What is the largest tire for the 1456202?

It allows a tire of up to 35 inches. Aftermarket wheels with 4.5 inch backspacing or less suit this lift best, and the alignment should be checked after installation.

How do I tell if a FlexArm bushing needs replacing?

Look for cracked rubber, torn boots, grease leaks or movement that clunks under load. Lift the tire and check for play at the arm ends. Replace a worn bushing or arm end before it affects alignment or tire wear.
