Overview
The TeraFlex 1251000 is a 2.5 inch lift kit for the four-door Jeep Wrangler JK. It fits the 07 to current Wrangler JK, four-door models. The kit includes 2.5 inch lift coil springs and 9550 VSS shock absorbers, so the shock package is part of the lift.
The kit is a simple lift for off-road use, with 2.5 inches of lift to fit a 35 inch tire. Aftermarket wheels with 4.5 inch backspacing or less are required. It also suits daily driven Wranglers.
The kit includes rear sway bar links, a heavy duty rear track bar axle bracket and bump stop extensions. If stock wheels are used, TeraFlex says wheel spacers, part number 1055000, are needed with the kit.
Key features
- 2.5 inch lift coil springs
- 9550 VSS shock absorbers included
- Rear sway bar links
- Heavy duty rear track bar axle bracket
- Bump stop extensions
- All necessary hardware included
- Max tire size 35×12.50
Shock and spring pairing
A coil spring lift changes ride height, so the shock absorbers must be long enough to cover the new travel. Matching shocks to the springs keeps damping consistent from full droop to full compression, which affects both on-road control and off-road articulation. Owners who keep the old shocks should measure their length at the new height first.
Rear track bar axle brackets and bump stop extensions work with the springs to control axle movement. Worn track bar bushings and tired bump stops can allow the axle to shift side to side, so they are worth inspecting when the lift goes in. Check the sway bar links and brake hoses for stretch as well.
- Shock length at the new ride height
- Track bar bushing condition
- Bump stop wear
- Sway bar link play
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1251000 |
| UPC | 843885020493 |
| Lift | 2.5 inch |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Front shocks | 9550 VSS |
| Body style | Four-door |
| Max tire size | 35×12.50 |
Vehicle fitment
It fits the 07 to current Wrangler JK, four-door, which covers the 2007–2018 JK generation. Confirm the model year and body style before ordering.
Two-door Wranglers and the JL generation are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
On 2012 and later JKs, exhaust spacers, part number 2610000, or another exhaust modification may be needed for driveshaft clearance. The rear track bar axle bracket and bump stop extensions change the rear geometry, so check the alignment after installation.

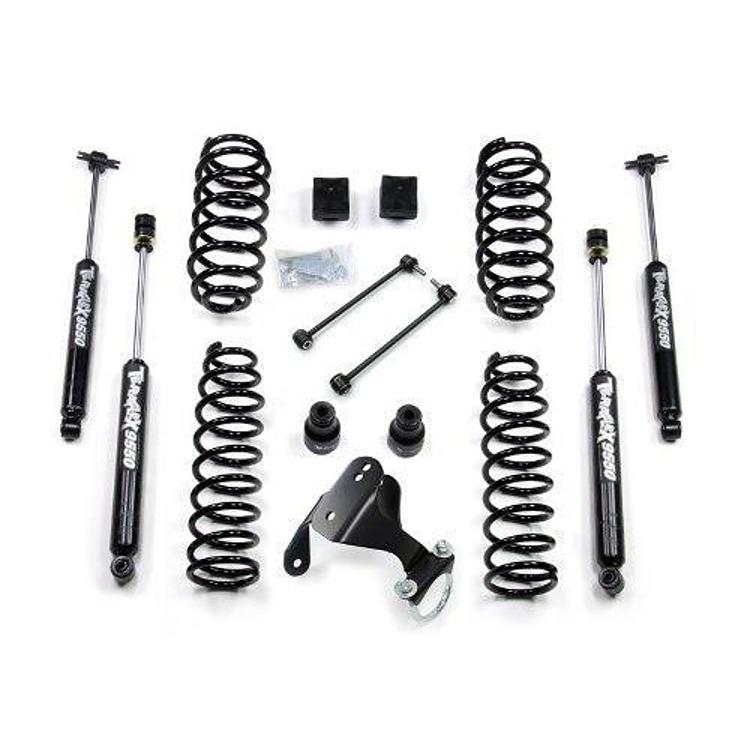

What’s included
The kit includes 2.5 inch lift coil springs, 9550 VSS shock absorbers, rear sway bar links, a heavy duty rear track bar axle bracket, bump stop extensions and all necessary hardware. It is a coil spring kit with rear coil springs.
