Rubicon Express 3.5 Inch Standard Coil Lift Kit with Mono Tube Shocks – RE7142M

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7142M 3.5 inch standard coil lift kit with monotube shocks
  • Fits the Wrangler JK, 2007–2018
  • Front and rear coil springs with monotube shocks included
  • Cam bolts for caster and pinion adjustment, adjustable front track bar and extended sway bar end links

Description

Overview

The Rubicon Express RE7142M is a 3.5 inch standard coil lift kit with monotube shocks for the Jeep Wrangler JK. It includes the front and rear coil springs and monotube shocks, and it keeps the existing control arms in place.

The system is a low-cost suspension package built for both on and off-road use. It is designed for 33 or 35 inch tires and can be upgraded later to a 3.5 to 4.5 inch Super-Flex or Extreme-Duty long arm system by adding components.

The kit fits 2007–2018 Wrangler JK models. On 2012 and newer models, an exhaust modification or a front driveshaft may be needed.

Key features

  • Front and rear replacement coil springs

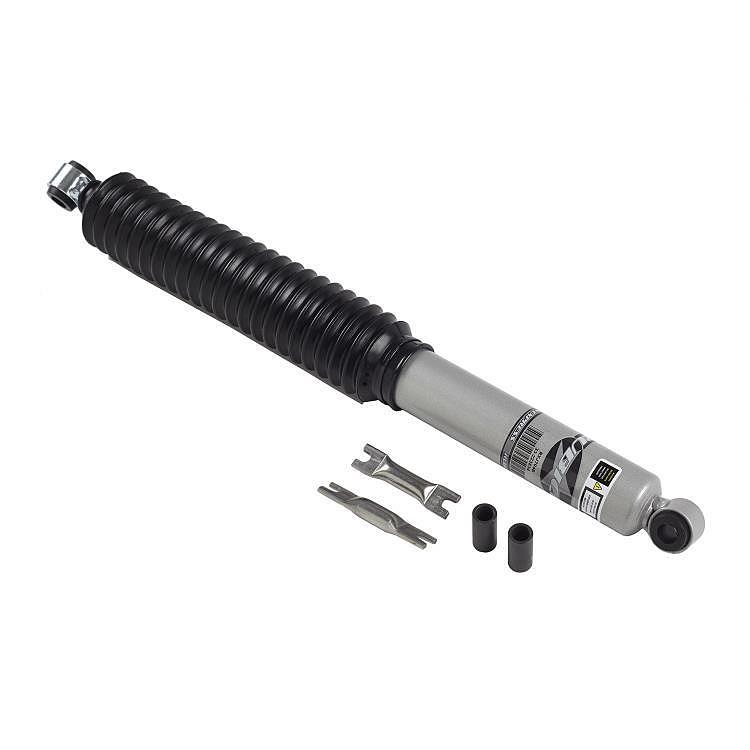

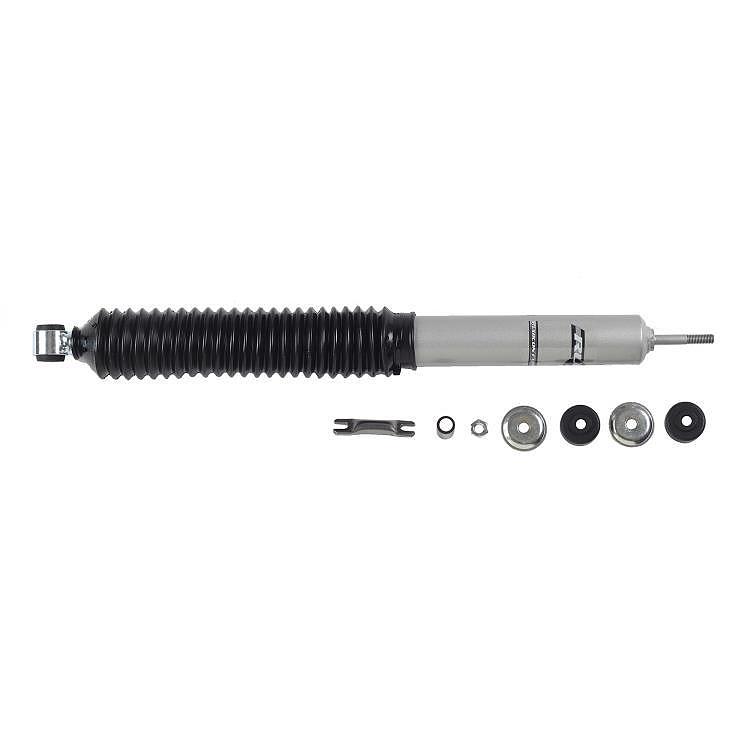

  • Monotube shocks included
  • Front and rear cam bolts for caster and pinion adjustment

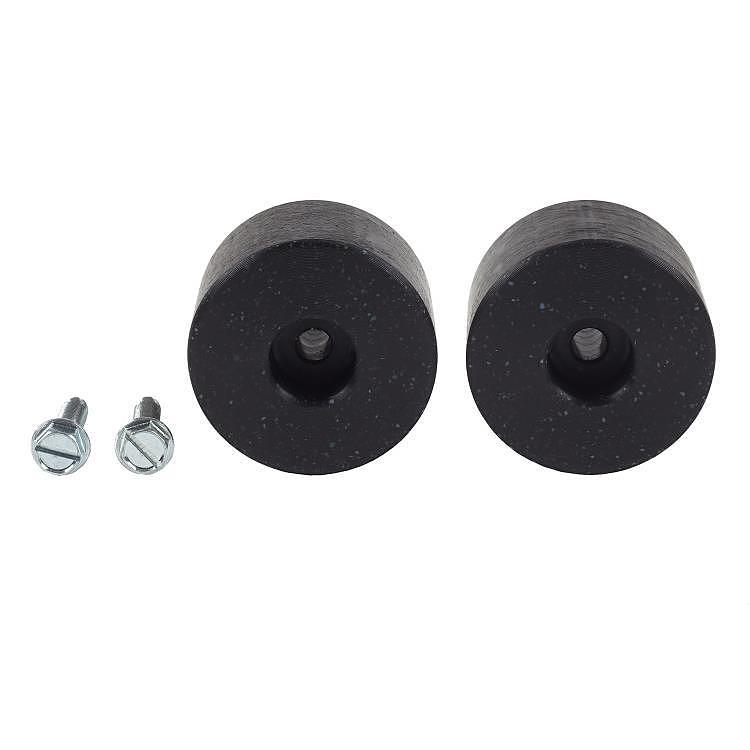

  • Front and rear bump stops
  • Adjustable front track bar and rear track bar bracket

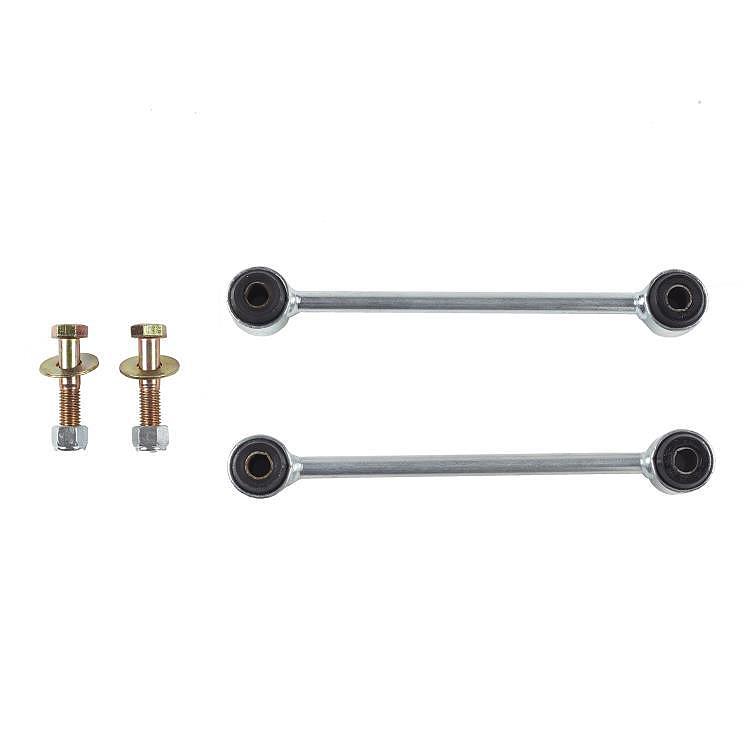

  • Extended sway bar end links
  • Designed to upgrade later to a 3.5 to 4.5 inch long arm system

Monotube shocks and clearance

Monotube shocks separate the gas from the oil in a single cylinder, which helps them keep damping consistent during long off-road runs. Shock length and mounting points matter more after a 3.5 inch coil lift, because the suspension travels through a different range. Check clearance at full compression, especially with 35 inch tires, since a shock that bottoms against a mount can wear quickly.

Driveline clearance is the other concern on newer Wrangler JK models. Exhaust and front driveshaft routing should be inspected before the lift goes on, and any rubbing marks should be dealt with early. Long arm upgrades later change the geometry further, so a fresh alignment check is part of that job.

  • Check shock mounts for cracks at each service
  • Inspect exhaust hangers after installation
  • Check the front driveshaft for vibration after the first drive

Specifications

Brand Rubicon Express
Part number RE7142M
UPC 614901452778
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Kit type Standard kit
Rear lift method Coil springs
Shocks included Yes, monotube
Tire size 33 or 35 inch

Vehicle fitment

It fits 2007–2018 Jeep Wrangler JK models.

For the TJ, LJ, JL or other generations, confirm fit against your vehicle’s year, model and trim before ordering.

Installation notes

On 2012 and newer models, check clearance for an exhaust modification or a front driveshaft before installing. Plan an alignment after installation, since the cam bolts and track bar set caster and pinion angle.

What’s included

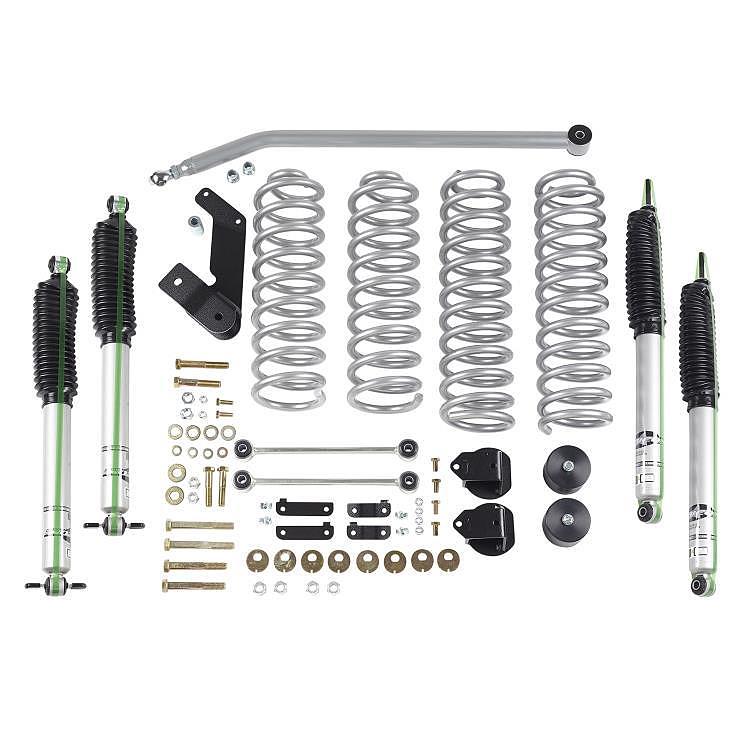

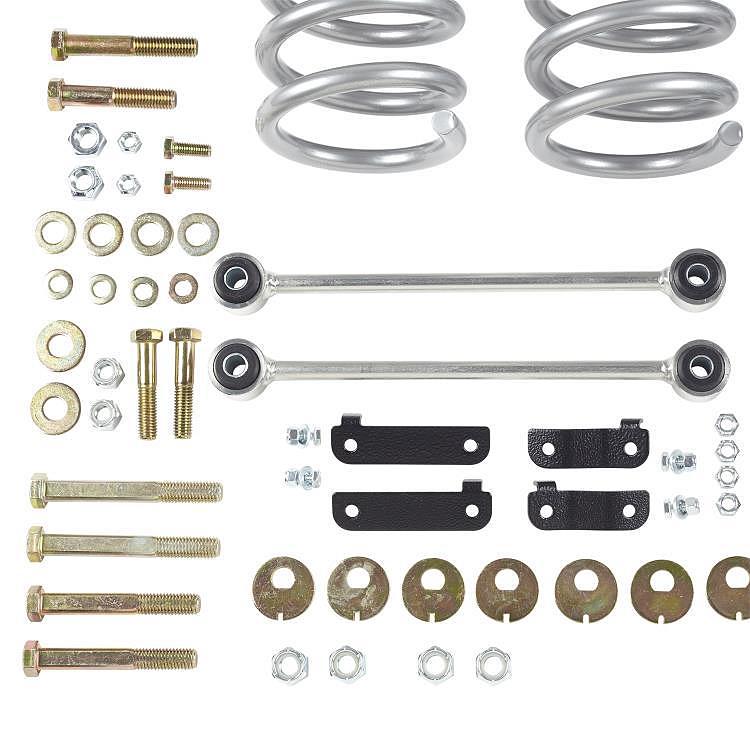

The kit includes front and rear replacement coil springs, monotube shocks, front and rear cam bolts, front and rear bump stops, an adjustable front track bar, a rear track bar bracket and extended sway bar end links.

SKU: R/ERE7142M Category:

Specification

Shipping weight 101.20 lbs
Package dimensions 48.30 × 13.00 × 13.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7142M include shocks?

Yes. Monotube shocks are included with the coil springs, so the kit covers both the lift and the shock replacement.

Will the RE7142M fit a 2012 or newer Wrangler JK?

It fits Wrangler JK models through 2018. On 2012 and newer vehicles, an exhaust modification or a front driveshaft may be needed, so check clearance before installing.

Can this kit be upgraded?

Yes. It can be upgraded to a 3.5 to 4.5 inch Super-Flex or Extreme-Duty long arm system by adding components.

What should I check on the exhaust after a coil lift?

Look for contact with the frame, the driveshaft or the body at full suspension travel. Check exhaust hangers and clamps for stretch or cracking. Rub marks or new vibration after installing should be addressed before driving far.
