Overview
The TeraFlex 1351002 is a 2.5 inch coil spring lift kit with front and rear coil springs, bump stops, rear sway bar links, a rear track bar bracket and rear brake line brackets. It suits budget-minded owners who want a no-frills setup.
The kit is offered in three configurations to match different performance levels. This is the basic lift, which includes the essential items needed for the lift. Some form of shock modification is required, either adapters or new longer shocks.
Tires up to 35 inches fit when aftermarket wheels of 4.5 inch backspacing or less are used.
Key features
- 2.5 inch lift
- Front coil springs
- Rear coil springs
- Bump stops
- Rear sway bar links
- Rear track bar bracket
- Rear brake line brackets
Rear geometry after a coil lift
Coil spring lifts raise the front and rear, but a basic kit still changes how the axles locate. When the rear sway bar links and track bar bracket are in place, the axle sits in a new position, which shifts handling and steering feel. Measure the rear brake lines after installation to confirm they are not stretched or pinched.
Bump stops control how the suspension behaves at the top of its travel, so they matter more once the ride is higher. Replacing worn bump stops at the same time keeps the lift predictable. Inspect the front and rear springs for sag, cracks or rust, especially on a vehicle that has been driven hard before the lift.
Good maintenance is simple. Check bolts and bracket fasteners after the first few drives, then at regular service intervals. A basic lift is easier to live with when the owner keeps a record of torque checks, shock changes and alignment visits.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1351002 |
| UPC | 843885021087 |
| Lift | 2.5 inch |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Front shocks | None |
| Shocks | Not included |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The basic lift needs a shock modification, so check the shock length or fit adapters before installation. The rear sway bar links and track bar bracket change the rear geometry, so check the alignment and the brake lines after the lift is installed.
What’s included

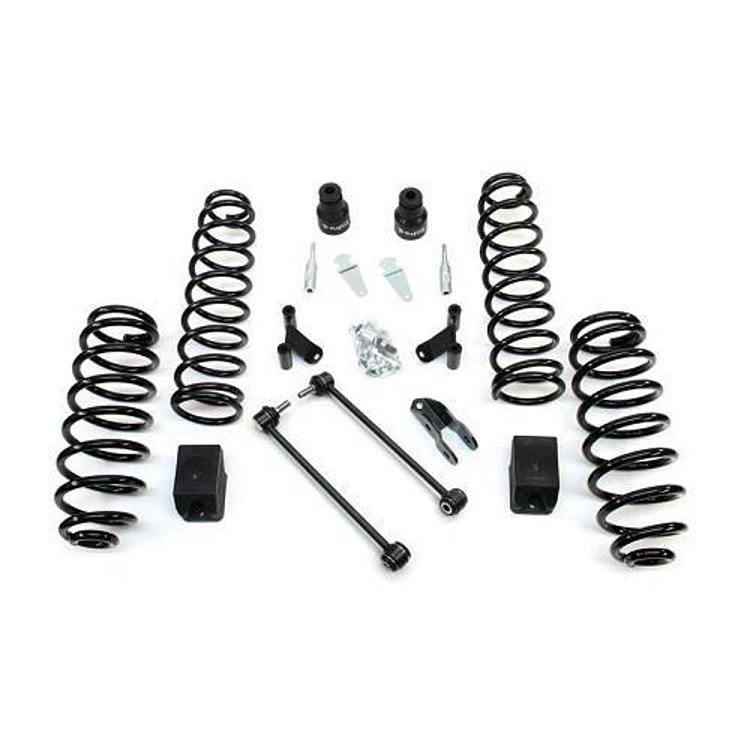

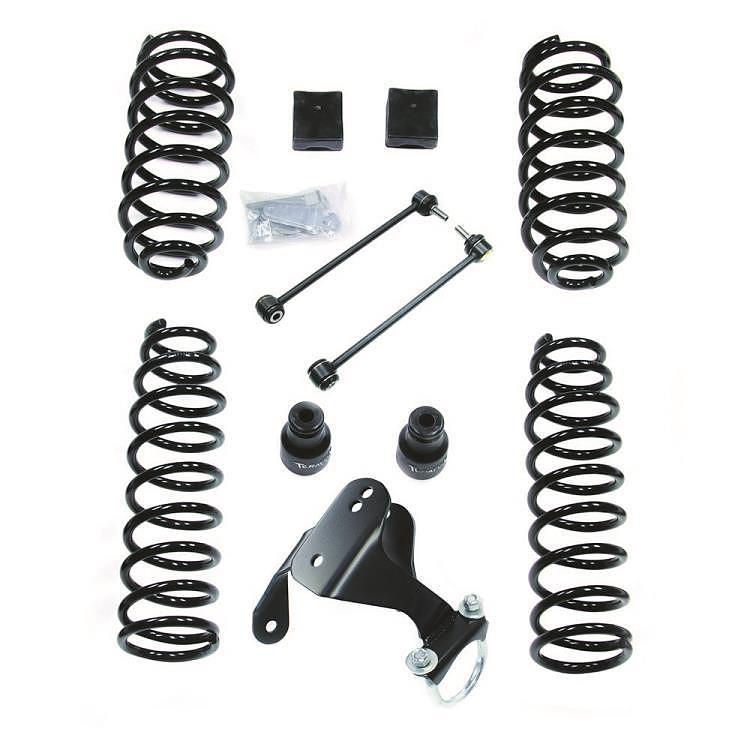

The kit includes front and rear coil springs, bump stops, rear sway bar links, a rear track bar bracket and rear brake line brackets.
Not included: Shocks, and the shock adapters or longer shocks that TeraFlex says are required.
