Overview
The TeraFlex 1257600 is a 6 inch Elite LCG long arm lift kit with shocks, for two-door and four-door 2007–2015 Jeep Wrangler (JK) models. It is designed to fit tires up to 38 inches and requires aftermarket wheels with 4.5 inch backspacing or less.
The kit uses fully adjustable upper and lower long FlexArms, which allow the pinion, caster and tire position to be modified. The adjustment range allows the suspension to be tuned to specific driving styles and handling preferences. Lower FlexArms are 2 inch OD by .281 wall DOM tube, with welded heavy duty bushing eyelets.
The design addresses anti-dive for braking, anti-squat for power transfer, and improvements to the front and rear roll centers. The kit also includes front sway bar disconnects. Drive shaft modifications are required with this suspension system.
Key features
- 6 inch lift height
- Shocks included
- Fully adjustable upper and lower long FlexArms
- Lower FlexArms of 2 inch OD by .281 wall DOM tube
- Heavy duty CNC bracketry cut from steel plate
- Front sway bar disconnects
- Max tire size 38×13.50
Long arm geometry and tuning
Long arm systems change the way the axle travels, which is why they are often chosen for high ride heights and articulation. Adjustable FlexArms let the installer set pinion angle, caster and tire position, so the setup can be tuned to match how the vehicle is driven. Small changes to these settings can affect steering feel, braking and tire wear, so each adjustment should be checked on a test drive.
Bracketry is a big part of the job. Heavy duty brackets need solid welds, and the fit against the frame locating holes should be confirmed before the final welds are made. Recheck the shock mounts and bushings after the first few trips, and inspect the tubes and welds periodically. Drive shaft modifications are required with this system, so plan for them before the first trail run.
- Set pinion and caster in small steps
- Confirm bracket fit before final welds
- Inspect welds and bushings after the first trips
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1257600 |
| UPC | 843885020981 |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Long arm |
| Front shocks | 9550 VSS |
| Lower FlexArm tube | 2 inch OD, .281 wall DOM |
| Max tire size | 38×13.50 |
| Shocks | Included |
Vehicle fitment
The fitment covers the 2007–2015 Jeep Wrangler (JK), including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models. It fits both two-door and four-door JK Wranglers.
Years outside 2007–2015 fall outside this fitment. Verify the trim and body style on your vehicle before purchase.
Installation notes
Drive shaft modifications are required on all JK Wranglers and Unlimited models with this suspension system. The bracketry is set against the frame locating holes before the brackets are stitch-welded in place, so the fit should be confirmed before the final welds.
What’s included

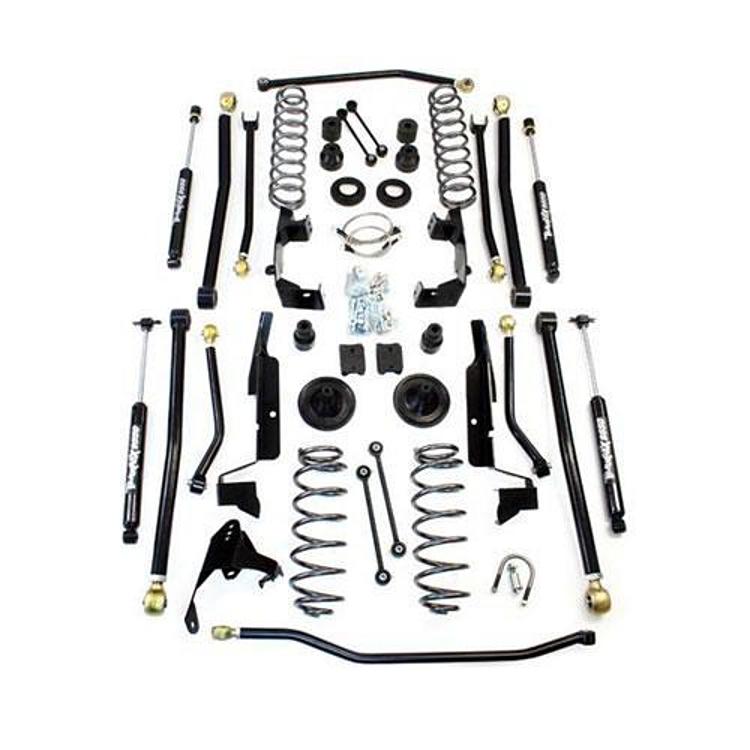

The kit includes upper and lower long FlexArms, front sway bar disconnects, heavy duty bracketry and shocks.
