Overview
The Rubicon Express RE7142FP is a standard coil lift kit for the Jeep Wrangler JK, supplied with front and rear Fox Performance shocks. Rubicon Express built its FOX-shock kit numbers for buyers who want that shock brand on a complete Rubicon Express system, and this one uses the standard coil spring setup rather than the super-flex arms.
The kit has a lift height range of 3 to 4.99 inches, with replacement coil springs at both ends. Cam bolts let you set caster and pinion angle after installation, and the front track bar, rear track bar bracket and sway bar end links are upgraded in the same kit.
The FOX Performance Series shocks are covered by the FOX warranty and are not eligible for the Rubicon Express Advantage Warranty. Keep that difference in mind when you register the kit.
Key features
- Front and rear Fox Performance shocks
- Front and rear replacement coil springs
- Cam bolts for caster and pinion adjustment
- Front adjustable track bar and rear track bar bracket
- Extended sway bar end links
- Front and rear bump stops
- Listed lift height range of 3 to 4.99 inches
Choosing a lift height
A coil spring lift raises the body by changing the spring and shock setup at each corner, so the rest of the drivetrain and steering see new angles. Replacing the shocks at the same time keeps damping matched to the new ride height. When choosing how far to lift, consider the tires you plan to run, the bumpers and winch you carry, and how much daily road use the vehicle gets, since larger tires and heavy gear change the load on the springs.
After installation, the track bar, sway bar end links and bump stops take up the loads the lift changes. Recheck the bolts on these parts after the first few trail runs, and look for worn bushings or cracked bump stops at each service. Caster and pinion angles should be checked with an alignment once the cam bolts are set.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7142FP |
| Kit type | Standard kit |
| Lift height range | 3 to 4.99 inches |

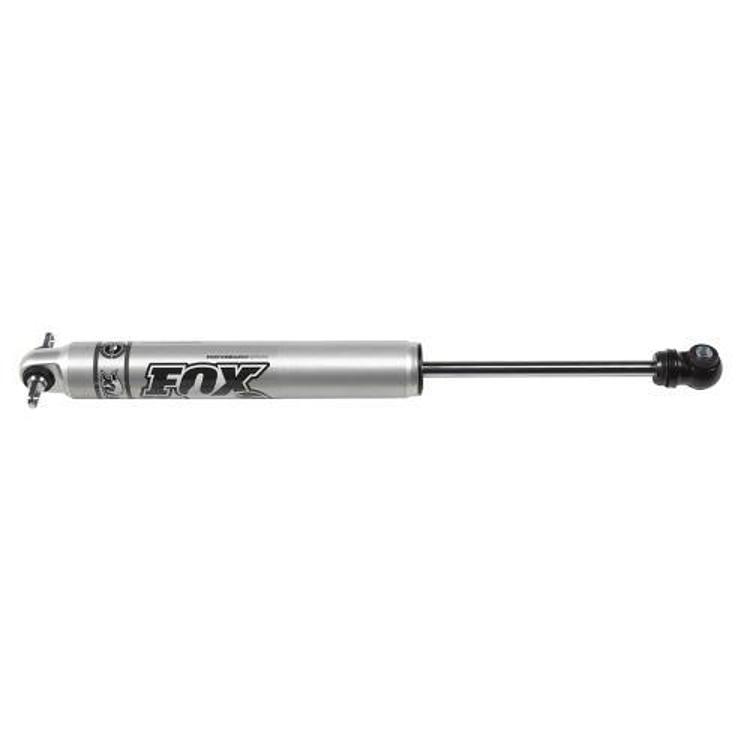

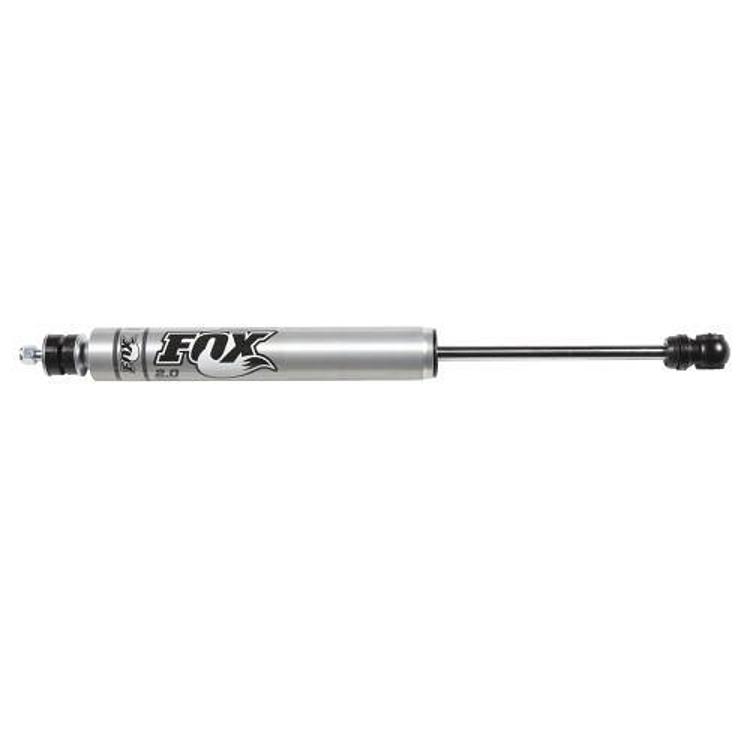

| Front shocks | Fox Performance |
| Rear shocks | Fox Performance |
| Front and rear springs | Replacement coil springs |
| Caster and pinion | Cam bolts for adjustment |
| Track bar | Front adjustable, with rear track bar bracket |
| Sway bar | Extended end links |
| Bump stops | Front and rear |
| Warranty | FOX warranty on Fox Performance Series shocks |
Vehicle fitment
It is a direct fit for the 2007–2018 Jeep Wrangler (JK).
It is not intended for the JL, the Gladiator, or the TJ and LJ Wrangler. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Models from 2012 and newer may require an exhaust modification or a front drive shaft. Check that before ordering, then have the alignment set after the cam bolts are adjusted.

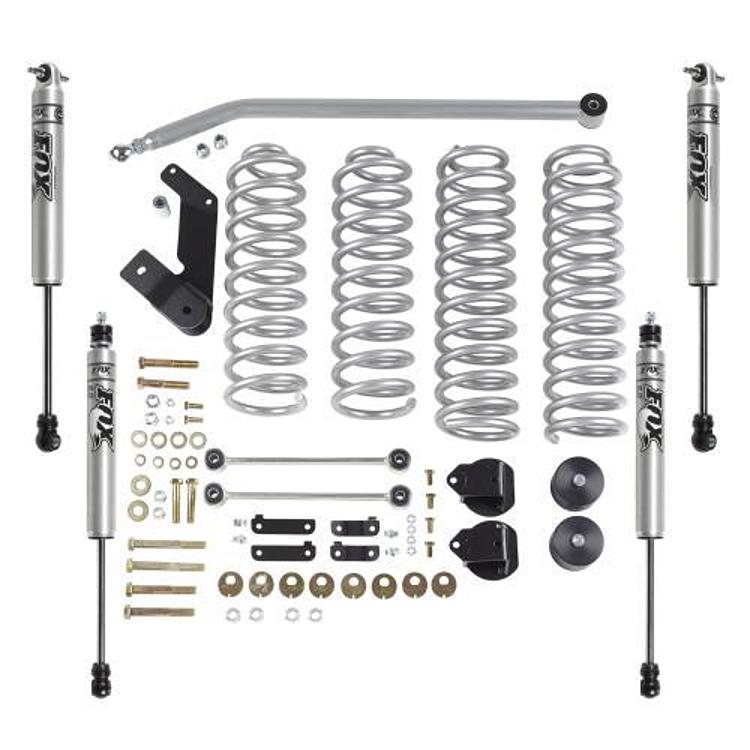

What’s included
Front and rear replacement coil springs, cam bolts, bump stops, a front adjustable track bar, a rear track bar bracket, extended sway bar end links and front and rear Fox Performance shocks.
