SuperSprings SumoSpring Air Helper Spring Set – SSR-406-47

Supersprings

$164.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 1997–2006 Jeep Wrangler TJ and 2004–2006 Jeep Wrangler LJ per the manufacturer fitment list
  • Sold as a left and right pair of rear SumoSprings
  • Patented micro-cellular urethane, maintenance-free, with no air lines or compressors required
  • 2500 lb capacity at 50% compression
  • Compresses up to 80% of original height with full memory rebound

Description

Overview

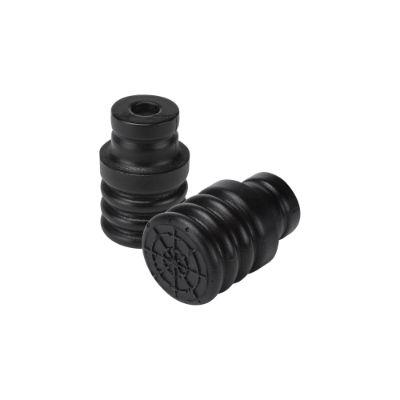

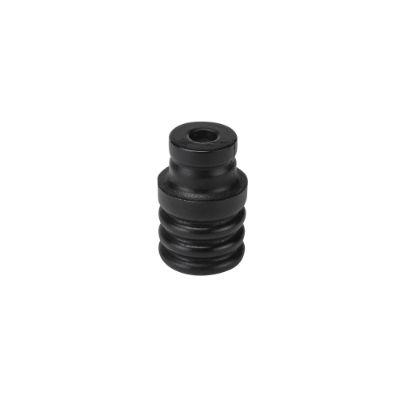

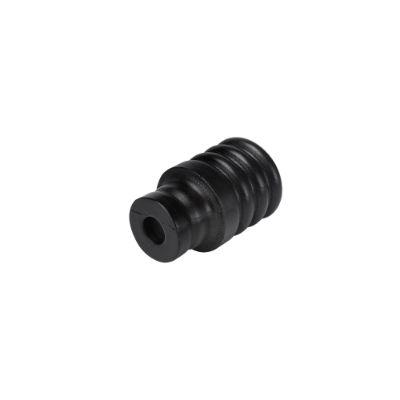

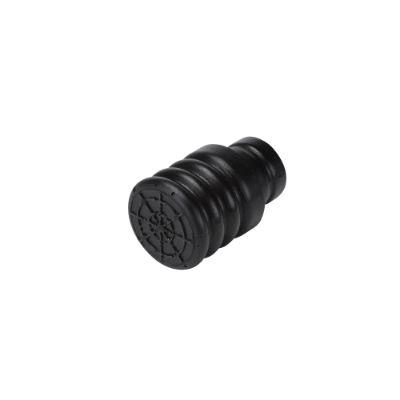

The SuperSprings SumoSpring Air Helper Spring Set, part SSR-406-47, is a rear load-carrying spring set sold as a left and right pair for the Jeep Wrangler TJ and LJ. Each SumoSpring is a one-piece unit made from patented micro-cellular urethane, so it adds load-carrying support without air lines, compressors or an air reservoir.

Supersprings says SumoSprings enhance load carrying ability, reduce and stabilize sway, and improve overall driver control and ride comfort. Each unit is listed at a 2500 lb capacity at 50% compression, and it compresses up to 80% of its original height with full memory rebound. The springs are aimed at owners who want more rear support when carrying a load.

Key features

  • One-piece unit attached at the top and bottom, made from patented micro-cellular urethane
  • Progressive spring rate with damping properties
  • Compresses up to 80% of original height with full memory rebound
  • Allows up to 50% expansion of original body height
  • Maintenance-free, with no air lines or compressors required
  • Designed so it does not leak or rupture under normal use.
  • Designed to reduce and stabilize sway and improve control and ride comfort

Load support for Wrangler owners

Rear urethane helpers add support when a Wrangler carries gear, camping loads or a trailer hitch load, and they help the rear end hold its height instead of sagging. Each unit is a single piece attached at the top and bottom, so the mounting points carry the load every time the suspension moves. The springs work with the existing shocks and bump stops rather than replacing them.

Owners who add rear helpers often find that the shocks and bushings also need attention, because the suspension now works through a different range. Look over the bump stops for cracks, the mounts for play and the shock bodies for leaks. Recheck the tire pressure and the load distribution after a few trips with a full load.

  • Inspect rear bump stops for cracks or flattening
  • Check mounting points for play or bent brackets
  • Recheck tire pressure after loading the vehicle

Specifications

Brand Supersprings
Part number SSR-406-47
Position Rear
Sold as Pair (left and right)
Material Patented micro-cellular urethane
Spring rate Progressive
Load capacity 2500 lb at 50% compression
Compression Up to 80% of original height, with full memory rebound
Expansion Up to 50% of original body height
Maintenance Maintenance-free

Vehicle fitment

Supersprings lists these SumoSprings for the 2004–2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ), including 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

Vehicles outside the TJ and LJ years are not covered, including the 2007–2018 Jeep Wrangler JK and the 2018–2022 Jeep Wrangler JL. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Never load any vehicle beyond its GVWR (gross vehicle weight rating). The urethane helpers add support but do not raise that rating.

What’s included

One pair of SumoSprings Rear, one left and one right.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the SuperSprings SSR-406-47 fit a Jeep Wrangler TJ?

Yes, the manufacturer fitment list includes the 1997–2006 Jeep Wrangler TJ, including Rubicon, SE, Sahara, Sport, X and 65th Anniversary Edition trims. Confirm your vehicle's year, model and trim before ordering.

How much load capacity do these springs list?

Each SumoSpring is rated at 2500 lb capacity at 50% compression. Each one compresses up to 80% of its original height and expands up to 50% of original body height, with full memory rebound.

Are the SumoSprings sold individually or as a pair?

They are sold as a pair, one left and one right, under part number SSR-406-47 from Supersprings. Maintenance-free urethane construction means no air lines or compressors are needed.

Does the SSR-406-47 fit the JK or JL Wrangler?

No. It fits the 1997–2006 Jeep Wrangler TJ and 2004–2006 Jeep Wrangler LJ only. The 2007–2018 JK and 2018–2022 JL are not covered, so verify your year, model and trim against the coverage before buying.

Should a Wrangler with rear helpers also get new shocks?

Often, yes. Helper springs change how the rear suspension loads, so worn shocks may bottom out or feel less controlled. Inspect shocks, bushings and bump stops when installing rear helpers, and replace any part that shows leaks or wear.
