Overview

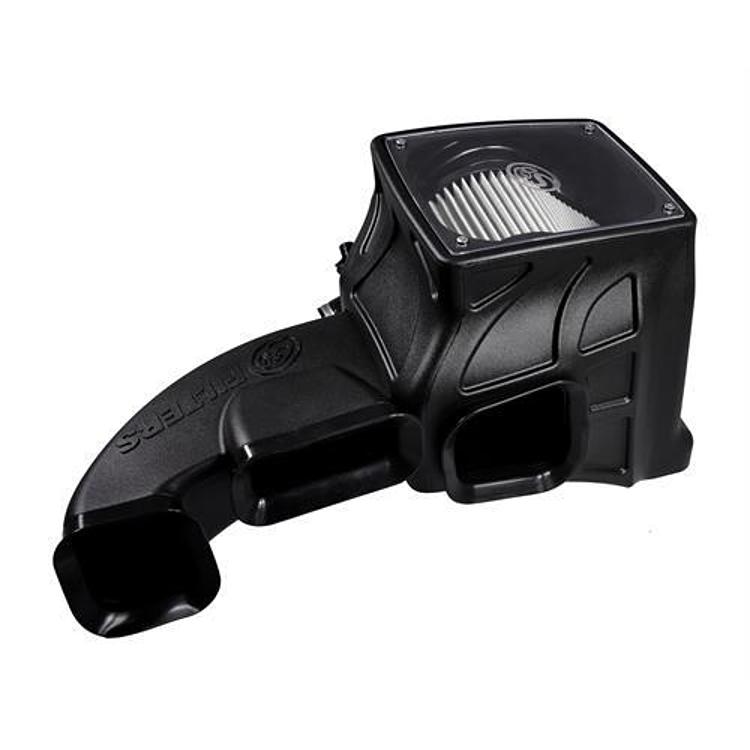

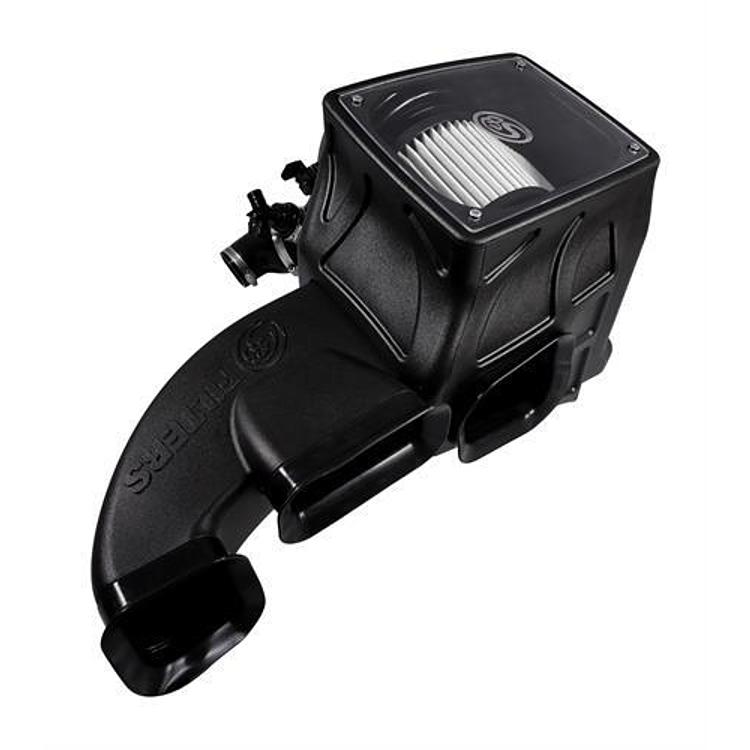

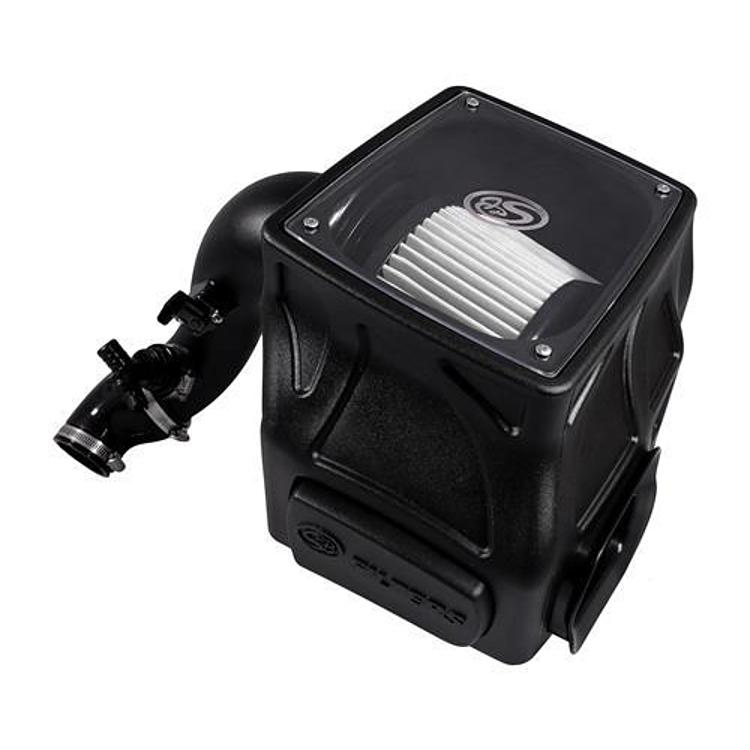

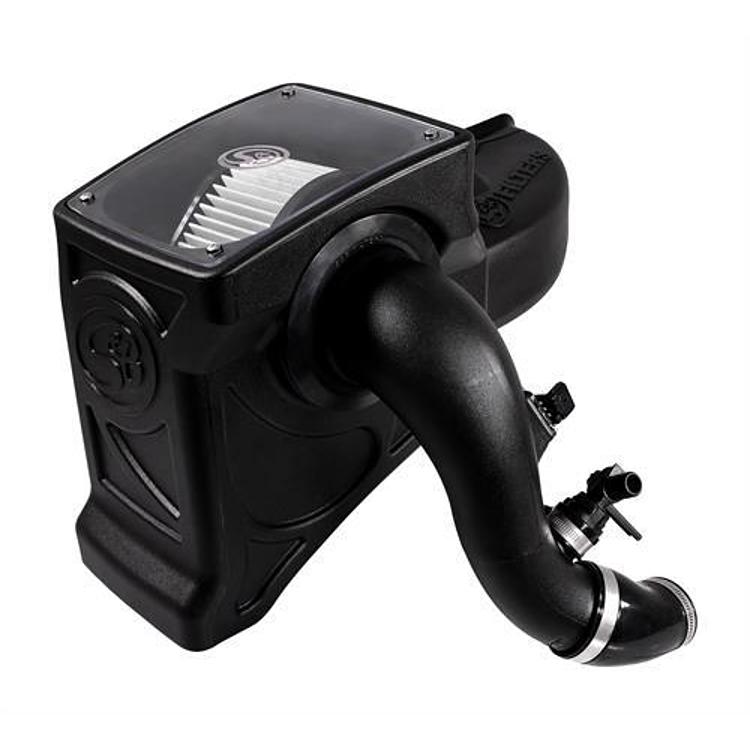

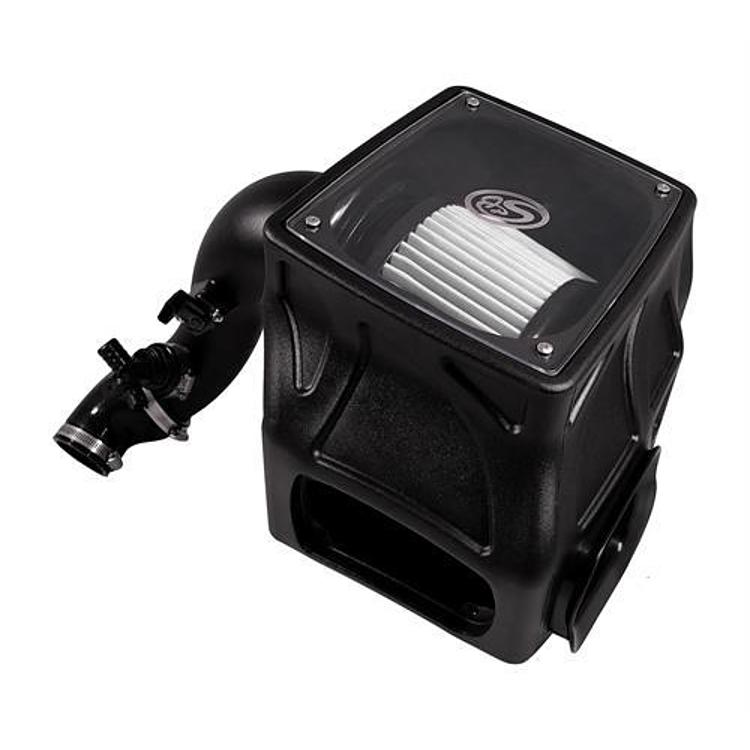

The S&B Filters 75-5086D is a cold air intake kit with a dry extendable filter for the 2016–2017 Chevrolet Colorado and GMC Canyon with the Duramax engine. It mounts to the stock mounting positions and replaces the factory intake with a larger airbox and filter assembly in the same location.
The airbox fills as much of the available space as possible while keeping restriction low. The intake tube runs in one clean line from the turbo inlet to the airbox with few obstructions. The kit provides 15.21% more airflow than the stock intake, and its filter is 99.66% efficient @ 294 CFM (ISO Coarse Dust).
Because the kit offers three airflow setups, the intake can be arranged to suit how the vehicle is driven. The setup is chosen during installation and is covered in the installation notes below.
Key features

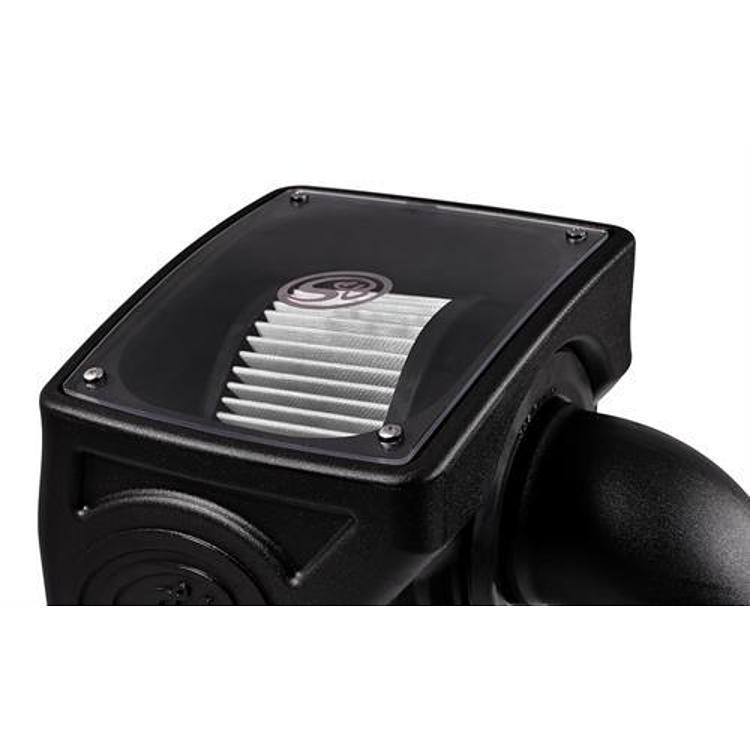

- Dry, extendable filter housed in a full enclosure airbox
- Three airflow configurations: box plug, optional auxiliary scoop, or an open back side on the airbox

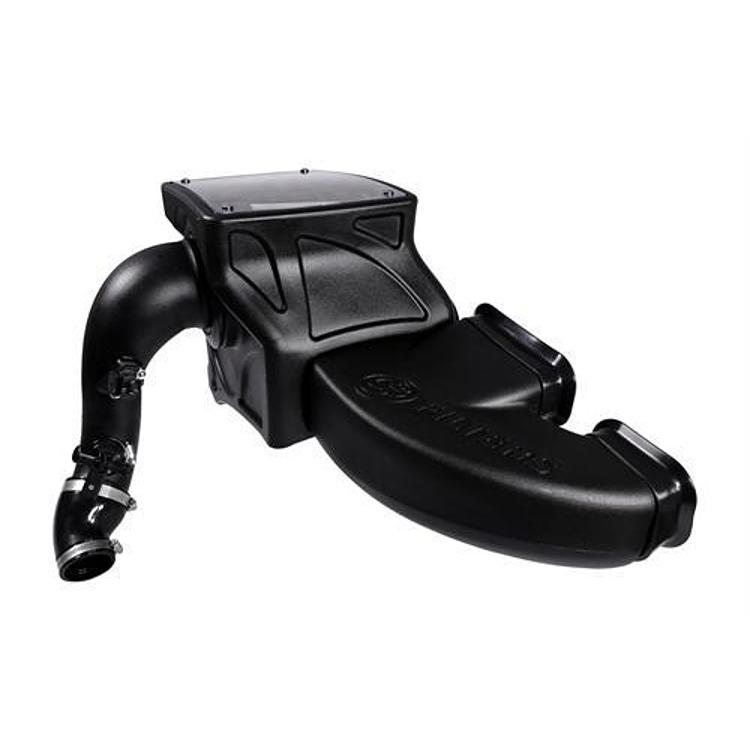

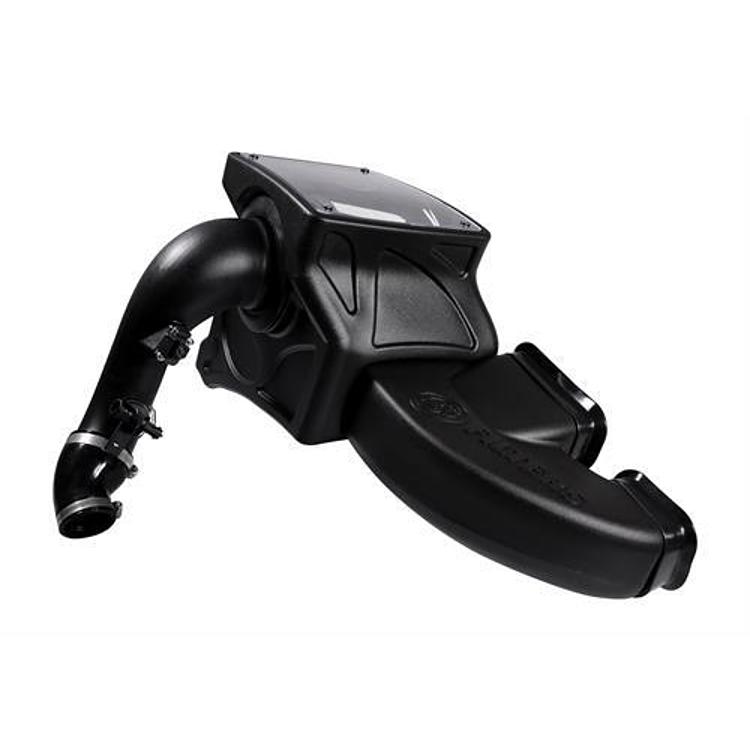

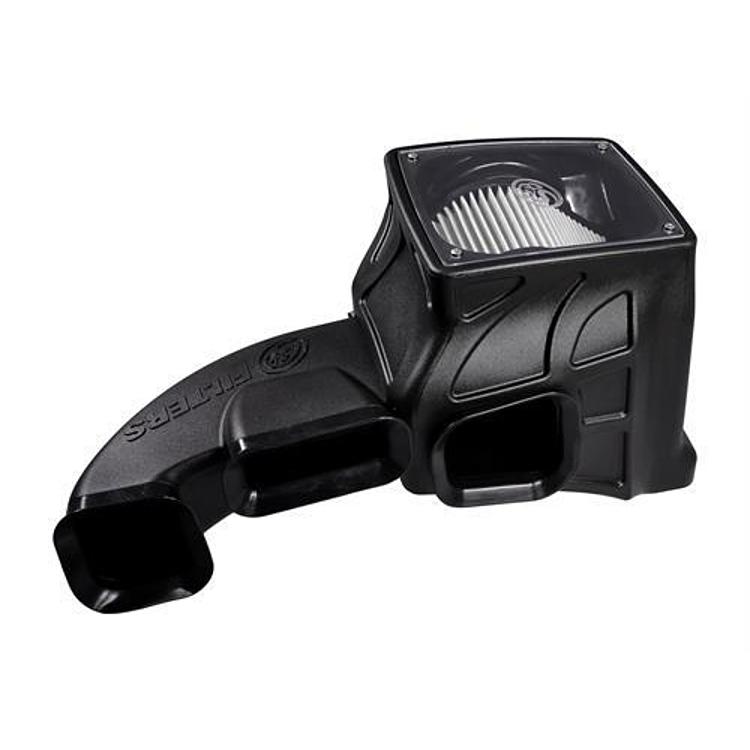

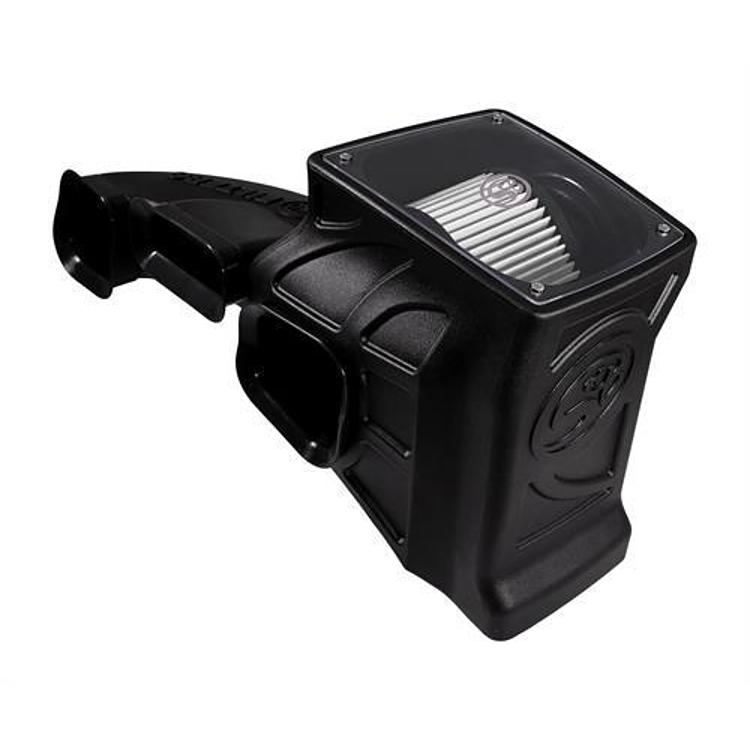

- Optional auxiliary scoop attaches to the airbox and draws air from the wheel well through two additional inlets
- Airbox sized to use as much of the available space as possible while mounting to stock positions

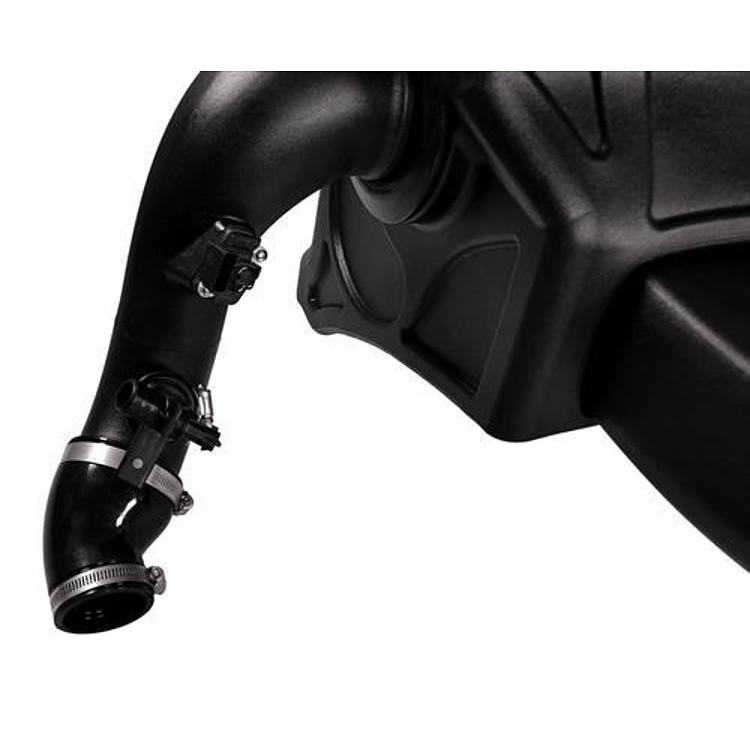

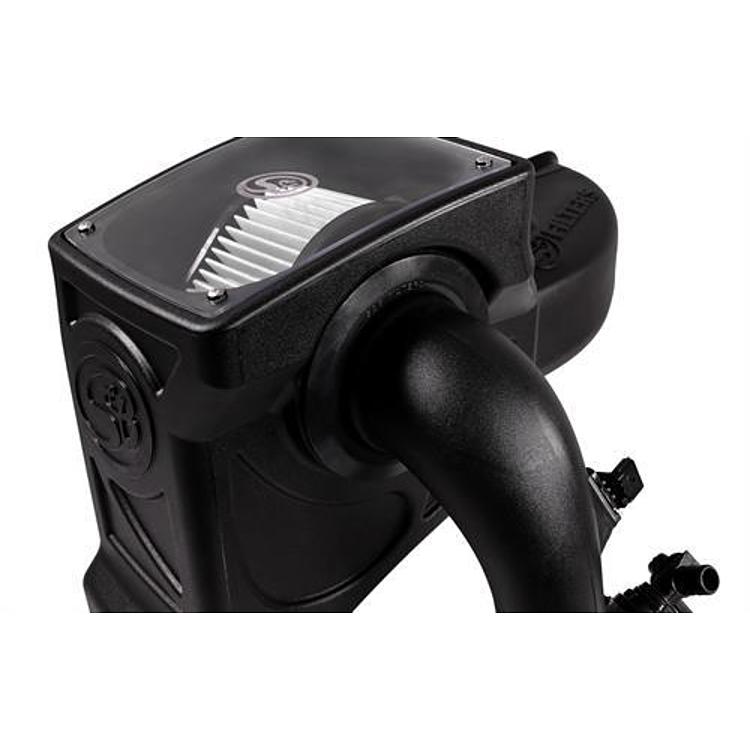

- Intake tube routed in one clean line with little obstruction from the turbo inlet to the airbox
- Cold air intake, direct fit
- Installation listed at less than 60 minutes
Choosing an airflow setup
The three airflow setups change where the engine draws air from. The box plug keeps the front inlet as the main source, which suits most daily driving. Adding the auxiliary scoop brings in cooler air from the wheel well, which may help on hot days or when the truck works in warm conditions.
Leaving the back side open creates a large secondary opening to the filter, which can increase airflow but also draws in more dust. Choose the setup before closing the airbox, since changing it later means reopening the housing. Consider how often the truck runs on dirt roads when picking the setup.
- Box plug for everyday driving with the front inlet as the main source
- Auxiliary scoop for added cooler air from the wheel well
- Open back side for a large secondary opening to the filter
- Check the setup after any airbox service
Specifications
| Brand | S&B Filters |
|---|---|
| Part number | 75-5086D |
| UPC | 841372037009 |
| Airflow gain | 15.21% more than the stock intake |
| Filtration efficiency | 99.66% @ 294 CFM (ISO Coarse Dust) |
| Filter type | Dry, extendable |
| Filter housing | Full enclosure |
| Intake type | Cold air |
| Airflow configurations | 3 |
| Fitment type | Direct fit |
| Inlet tube | Included |
| Install time | Less than 60 minutes |
Vehicle fitment
The manufacturer fitment list covers the following vehicles for this kit:
- 2016–2017 Chevrolet Colorado (LT, WT, Z71)
- 2016–2017 GMC Canyon (Denali, SL, SLE, SLT)
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Choose the airflow setup before the airbox is closed up. Using the box plug makes the front inlet the primary source of air. Fitting the optional auxiliary scoop adds two inlets that pull cooler air from the wheel well. Leaving both out and opening the back side of the airbox gives a large secondary opening straight to the filter. Disconnect the battery before working in the engine bay.
What’s included
The inlet tube is included. Check your package contents for the auxiliary scoop before installing, since it is an optional part.
