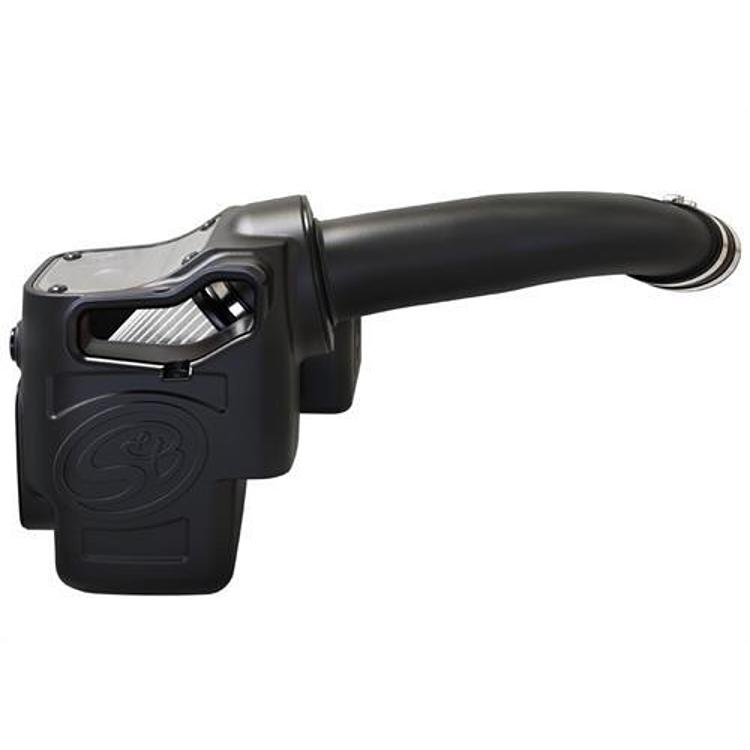

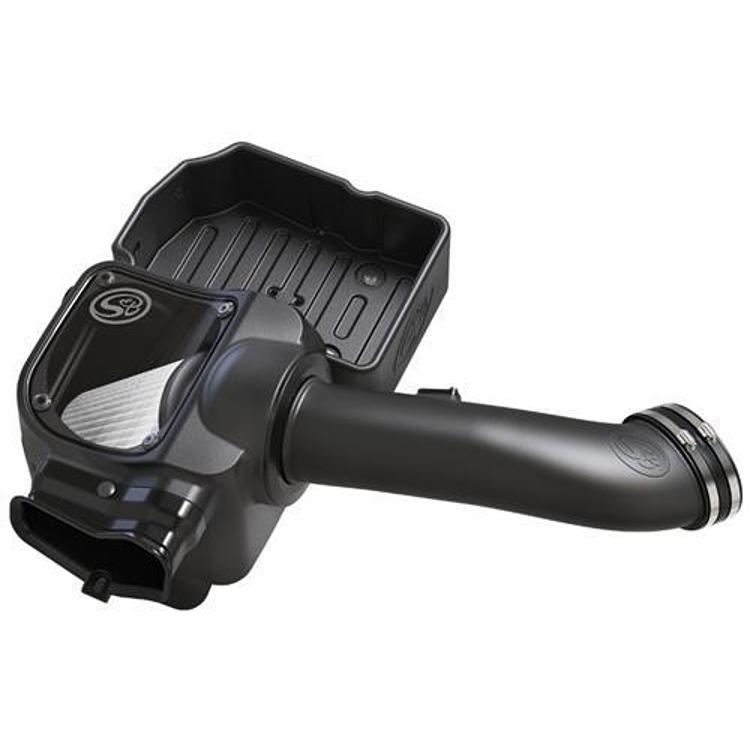

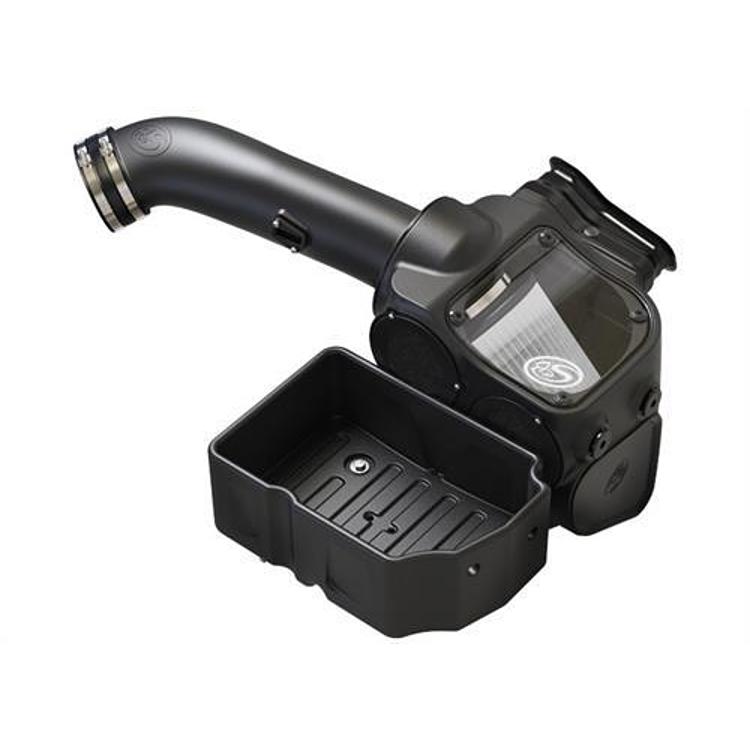

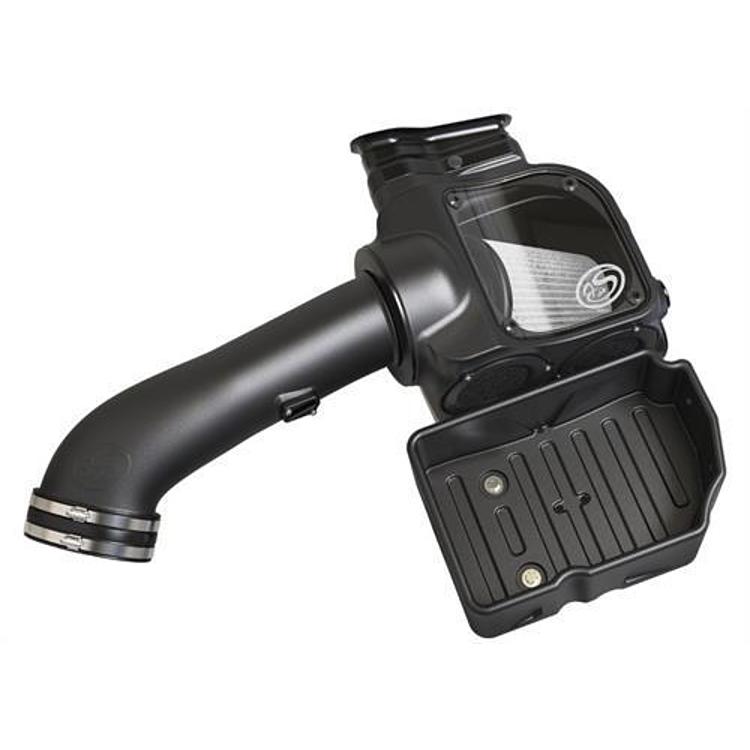

S&B Filters Cold Air Intake (Dry Filter) – 75-5085D

S&B Filters

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2017 Ford F-250 and F-350 Super Duty with the 6.7L Powerstroke
  • Dry extendable filter in a fully enclosed airbox
  • 54.86% more airflow than the stock intake
  • 99.73% efficient at 580 CFM (ISO Coarse Dust)
  • Inlet tube and silicone box plug included
  • Part number 75-5085D, CARB EO# D-590-17

Description

Overview

The S&B Filters 75-5085D is a dry-filter cold air intake kit for the 2017 Ford F-250 and F-350 Super Duty with the 6.7L Powerstroke diesel. It uses a fully enclosed airbox with a dry extendable filter, and the intake box and battery are relocated so the intake sits closer to, and directly in line with, the front air inlet.

The kit has two airflow setups. Installing the included silicone box plug seals the airbox so the front-facing primary inlet scoop is the main air source. The intake tube has minimal bends between the airbox and the turbo inlet, which the manufacturer links to a significant decrease in restriction compared with the stock intake.

Key features

  • Dry extendable filter housed in a full enclosure airbox
  • Front-facing primary inlet scoop becomes the main air source when the box plug is used
  • Intake tube with minimal bends from the air inlet to the turbo inlet
  • Injection-molded MAF sensor plate with a foam MAF sensor gasket for a sealed connection
  • 54.86% more airflow than the stock intake
  • 99.73% efficiency at 580 CFM (ISO Coarse Dust)

Sealing the MAF connection

The mass airflow sensor reads incoming air, so a leak at its connection can throw off the engine’s air reading. The injection-molded MAF sensor plate and the foam gasket are there to seal the connection. Clean the mounting surface before fitting the plate, and make sure the gasket sits flat without twisting.

A dry extendable filter is not oiled, so keep oil and cleaners away from the sensor area. Once the plate is in place, check it by hand for movement. Recheck the seal after the first service, since heat cycles can change how gaskets sit. A small leak is easier to fix during installation than after the first long drive.

  • Clean the mounting surface
  • Keep oil away from the sensor
  • Recheck the seal after the first service

Specifications

Brand S&B Filters
Part number 75-5085D
UPC 841372037139
Engine 6.7L Powerstroke (Ford)
Filter type Dry, extendable
Filter housing type Full enclosure
Intake type Cold air
Fitment Direct fit
Inlet tube Included
Silicone box plug Included
Airflow gain 54.86% more than the stock intake
Filter efficiency 99.73% at 580 CFM (ISO Coarse Dust)
CARB EO# D-590-17

Vehicle fitment

The manufacturer fitment list covers the 2017 Ford F-250 Super Duty and 2017 Ford F-350 Super Duty, including King Ranch, Lariat, Platinum, XL and XLT trims.

Other model years and Super Duty models fall outside the coverage shown here. Confirm fit for your year, model and trim before ordering.

Installation notes

The kit relocates the battery as part of the intake change. The manufacturer puts the job at 90 minutes or less with standard tools, following its installation instructions. Disconnect the battery before starting the relocation.

What’s included

The inlet tube and silicone box plug are included. Check the packing list for the foam MAF sensor gasket and injection-molded MAF sensor plate before starting.

SKU: SNB75-5085D Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 24.40 × 15.40 × 14.40 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2017King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the S&B Filters 75-5085D fit the 2017 Ford Super Duty?

Yes. It fits the 2017 Ford F-250 and F-350 Super Duty, including King Ranch, Lariat, Platinum, XL and XLT trims, as a direct fit for the 6.7L Powerstroke. Confirm your year and trim before ordering.

How much airflow does the 75-5085D add over the stock intake?

The specifications state 54.86% more airflow than the stock intake and 99.73% efficiency at 580 CFM (ISO Coarse Dust). The filter is a dry extendable type housed in a fully enclosed airbox.

Is the inlet tube included with the 75-5085D?

Yes, the inlet tube is included along with the silicone box plug. Check the packing list for the MAF sensor gasket and plate before installing.

How can I tell if the MAF sensor seal is leaking?

Look for a rough idle, hesitation under light throttle or a check engine light after installation. Inspect the gasket and plate for gaps or misalignment. Reseat the plate and gasket, then clear any codes and retest before assuming the seal is at fault.
