Overview
The Rubicon Express RE7121T is a 2.5 inch standard coil lift kit with twin tube shocks. It replaces the front and rear coil springs and includes bump stops, a rear track bar bracket and extended sway bar end links, and the shocks are included with the kit.
It is written for 2007 to 2017 two-door Jeep Wrangler JK models and for 07-12 Jeep Wrangler JK models. Confirm fit for your vehicle’s year, model and trim before ordering.
The kit is designed for easy installation and for more ground clearance, extended wheel travel and room for 35 inch tall tires. It does not require changes to driveshafts, exhaust or brake lines.
Key features
- 2.5 inch standard coil lift
- Front and rear replacement coil springs

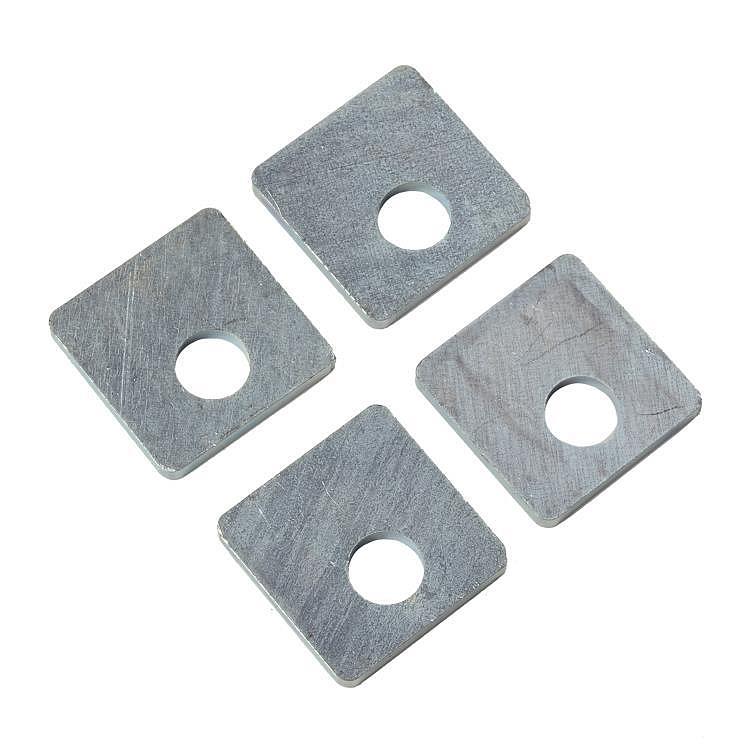

- Front alignment washers for caster adjustment

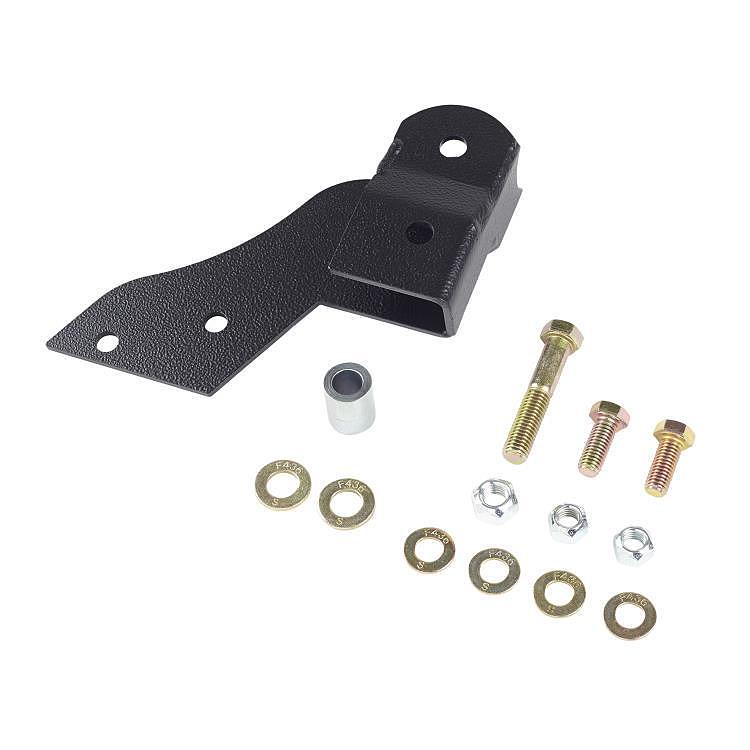

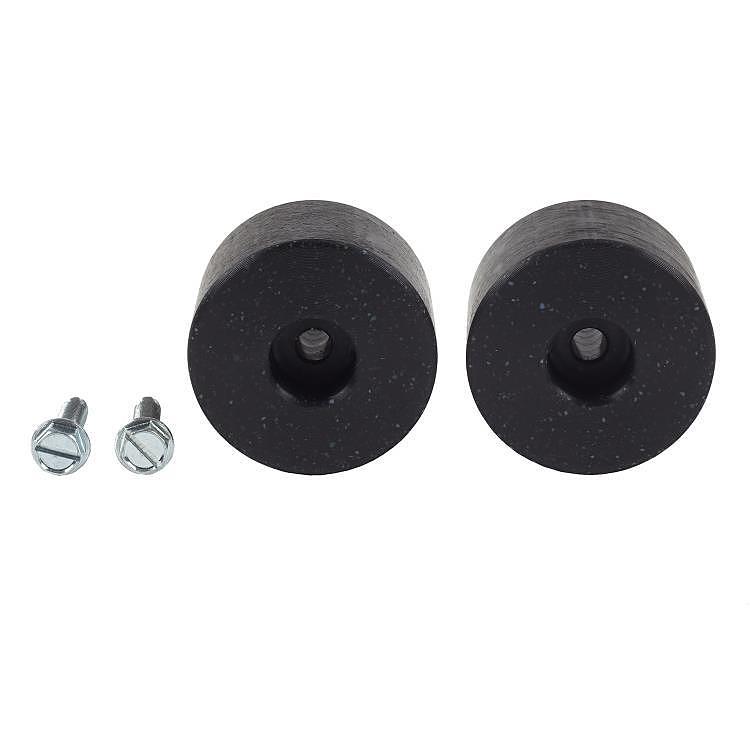

- Bump stops and a rear track bar bracket
- Extended sway bar end links

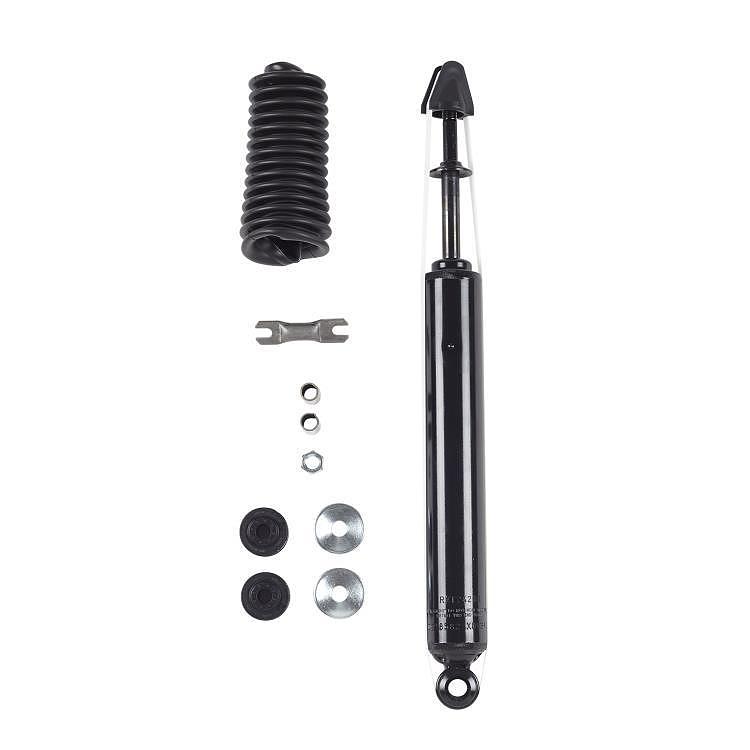

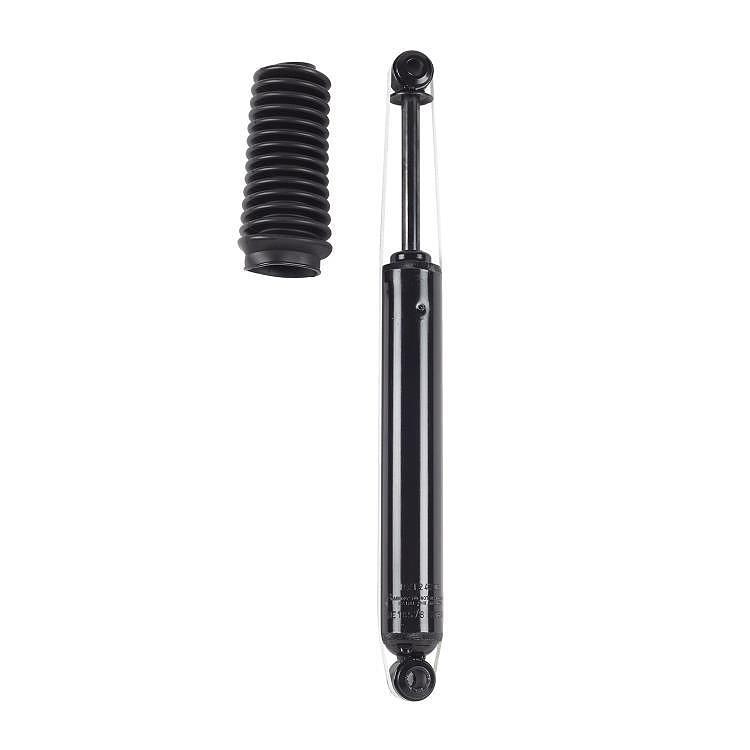

- Twin tube shocks included
- Designed to accept further suspension upgrades.
Choosing the right setup
A coil spring lift replaces the factory springs to raise the body and add ground clearance. Because the springs carry the vehicle weight, spring rate and height both matter when choosing a setup. Coil lifts keep the factory control arms and steering parts in place, so the change in geometry is limited to what the new springs and caster adjustment require.
Shocks are often replaced with the springs, since longer travel puts more load on older units. Before reassembly, check the upper and lower shock mounts, bump stops, control arm bushings and sway bar links for cracks, sag or play. Driveline angles should be measured after the lift, and a driveshaft that binds at full droop usually needs a correction.
Tire size is the other factor to plan around. Larger tires add rolling diameter and may rub at full compression, so the wheel well and steering stops should be checked after the first drive. Keep spare hardware on hand, since lifted components are often torqued again after a few trail runs.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7121T |
| UPC | 70000625582 |
| Lift height | 2.5 inch |
| Suspension type | Coil spring kit |
| Kit type | Standard kit |
| Rear lift method | Coil springs |
| Shocks included | Yes, twin tube |
| Fitment | Direct fit |
Vehicle fitment
Fitment is not confirmed for this kit. The short description names 2007 to 2017 JK Wrangler two-door models, and the longer description names the 07-12 Jeep JK Wrangler.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for other Wrangler generations.
Installation notes
The front alignment washers set caster, so an alignment is needed after the coil springs are replaced. Any lift changes driveline angles, so check them during installation.
What’s included

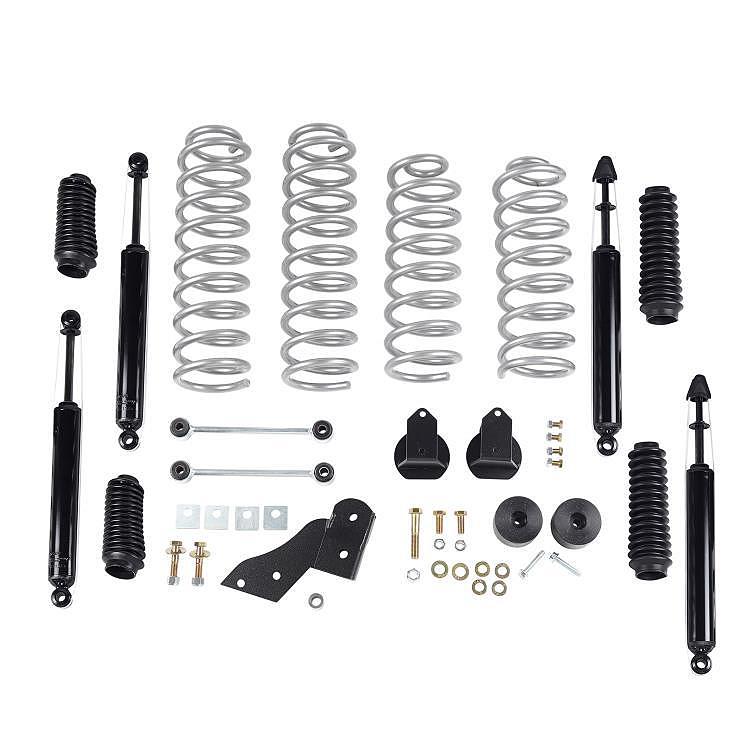

The kit includes front and rear replacement coil springs, front alignment washers, bump stops, a rear track bar bracket, extended sway bar end links and twin tube shocks.
