Rubicon Express 3.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Twin Tube Shocks – RE7223T

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch long arm lift with twin tube shocks
  • Lift height range 3 to 4.99 inches
  • Designed for LJ Unlimited, 2004–2006 models
  • Tuned lift springs and rear track bar

Description

Overview

The Rubicon Express 3.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Twin Tube Shocks (part number RE7223T) is a long arm lift for the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon. The kit includes twin tube shocks, and the stated lift height range is 3 to 4.99 inches.

The long arm design uses longer control arms, which keep the lifted Wrangler’s geometry steadier on the road and the trail. Its roots are on the TJ, and this version is built for the LJ.

Twin tube shocks are included and fit the 3 to 4.99 inch lift range. Tuned lift springs, a rear track bar and a three-piece belly pan are also part of the kit. Check the brake hose length and the shock clearance once the arms are in.

Key features

  • Twin tube shocks included
  • Chromoly long control arms
  • PT-Meg Super-Ride bushings
  • Adjustable control arms with Super-Flex spherical ball joints
  • Tuned lift springs
  • Rear track bar
  • Three-piece belly pan

Keeping shock mounts in check

Twin tube shocks have a long track record on Wranglers because the layout is simple to inspect and service. The inner tube carries the working piston while the outer tube holds fluid, which keeps the design predictable across many driving conditions. After a lift, the shock mounts carry more load through a different angle, so they deserve regular attention.

Look for leaks at the seal, check the eyelet bushings for splits, and confirm the nuts are still tight after the first few trail runs. Bump stops and the track bar should be checked at the same time, since they share the job of controlling travel. A shock that feels loose or bounces after a rough trip is often a sign that the mounts need attention.

  • Seal area dry and free of oil
  • Eyelet bushings intact
  • Mount nuts tight after break-in

Specifications

Brand Rubicon Express
Part number RE7223T
Lift height range 3 to 4.99 inches
Suspension type Extreme-Duty long arm
Shock absorbers Twin tube, included
Fitment type Direct fit

Vehicle fitment

Coverage extends to the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon.

The 2-door LJ, the TJ and the JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The twin tube shocks are supplied with the kit, so the install is focused on the arms, springs and track bar. Check the alignment and the driveline angles after the lift.

What’s included

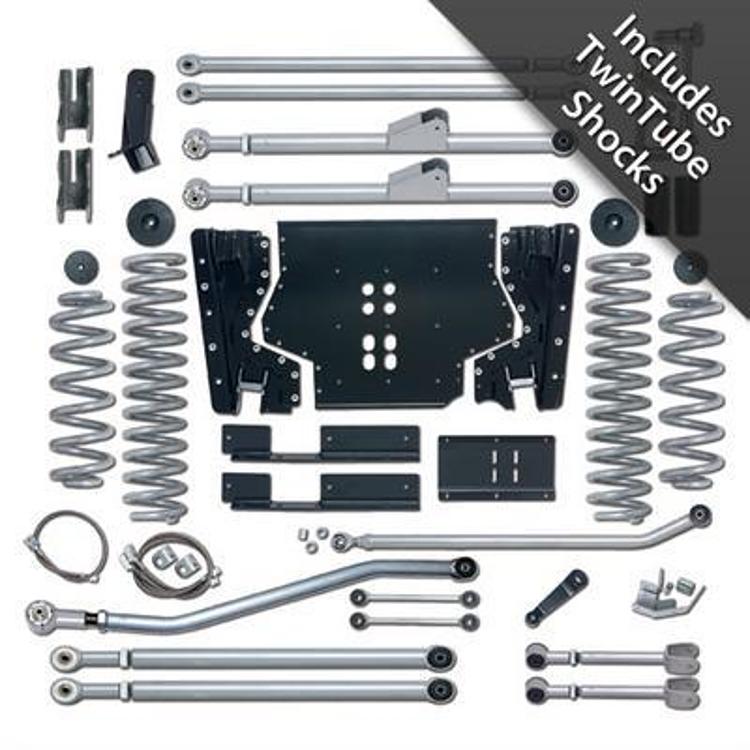

Twin tube shocks, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints, tuned lift springs, a rear track bar and a three-piece belly pan.

SKU: R/ERE7223T Category:

Specification

Shipping weight 378.05 lbs
Package dimensions 48.00 × 24.50 × 24.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express RE7223T include twin tube shocks?

Yes. Twin tube shocks come with the RE7223T, so the kit arrives with its shocks already included for the 3 to 4.99 inch lift range. No separate purchase is required.

Will the RE7223T fit a 2004 Jeep Wrangler Unlimited?

Yes. A 2004 Wrangler Unlimited falls within the model years this kit covers. Before ordering, confirm your vehicle's year, model and trim.

Are stainless brake lines part of this kit?

Check the existing brake hoses for length and wear before the long arms go in, since the new ride height may call for new lines.

How do I know when twin tube shocks should be replaced?

Replace them when they leak, make knocking sounds, or no longer control body motion over bumps. Uneven tire wear and a bouncy ride on smooth roads can also point to worn shocks. Replace them in pairs so both sides of the axle match.
