Rubicon Express 4.5 Inch Extreme-Duty Leaf Spring Lift Kit with Twin Tube Shocks – RE5525T

Rubicon Express

Shop Jeep CJ7 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch Extreme-Duty spring-under lift kit with twin tube shocks for Jeep CJ5 and CJ7
  • Conversion shackle for 2.5-inch wide front leaf springs
  • Sway bar disconnects, drop Pitman arm, stainless steel brake lines
  • Part number RE5525T, 3 to 4.99-inch lift range

Description

Overview

The Rubicon Express RE5525T is a 4.5-inch spring-under lift kit with Extreme-Duty leaf springs and twin tube shocks for the Jeep CJ. It fits the 1976–1983 Jeep CJ5 and the 1976–1986 Jeep CJ7 in Base, Golden Eagle, Laredo, Limited and Renegade trims, plus the Golden Hawk trim on the CJ7. The kit covers a 3 to 4.99-inch lift range.

The kit includes a conversion shackle for moving the front of the CJ to 2.5-inch wide leaf springs, along with greaseable shackles and main eye bushings. It also includes stainless steel brake lines, sway bar disconnects and a drop Pitman arm. The Extreme-Duty springs are built for durability, flexibility and ride quality.

Key features

  • 4.5-inch Extreme-Duty spring-under lift
  • Twin tube shocks included
  • Conversion shackle for 2.5-inch wide front springs
  • Greaseable shackles and main eye bushings
  • Stainless steel brake lines
  • Sway bar disconnects and drop Pitman arm

Before you install

Spring-under lifts change how the axle sits under the body, so the leaf springs carry more of the load on the trail. A kit like this one also changes the geometry of the front and rear axles, which means steering, driveline angles and brake hose length should be checked once the lift is in place. Taking a few minutes to measure these before a long drive saves trouble later.

Shocks and bushings wear faster on a lifted CJ, especially where the springs flex on rough ground. Inspect the eye bushings, shackle pins and shock mounts at each oil change, and look for leaks or cracked rubber. Greaseable parts should be lubricated on a regular schedule so the joints move freely. Worn parts are easiest to catch early when the vehicle is lifted off the ground.

  • Check driveline angles after the first few trail runs
  • Re-torque U-bolts after the first few trail runs
  • Inspect brake lines where they cross the new spring height

Specifications

Brand Rubicon Express
Part number RE5525T
Suspension type Extreme-Duty leaf spring, CJ kit
Lift height range 3 to 4.99 inches
Spring width 2.5 inches wide (front)
Shocks Twin tube, included
UPC 614901453041
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited and Renegade) and the 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade).

CJ models from other years, and Wrangler models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

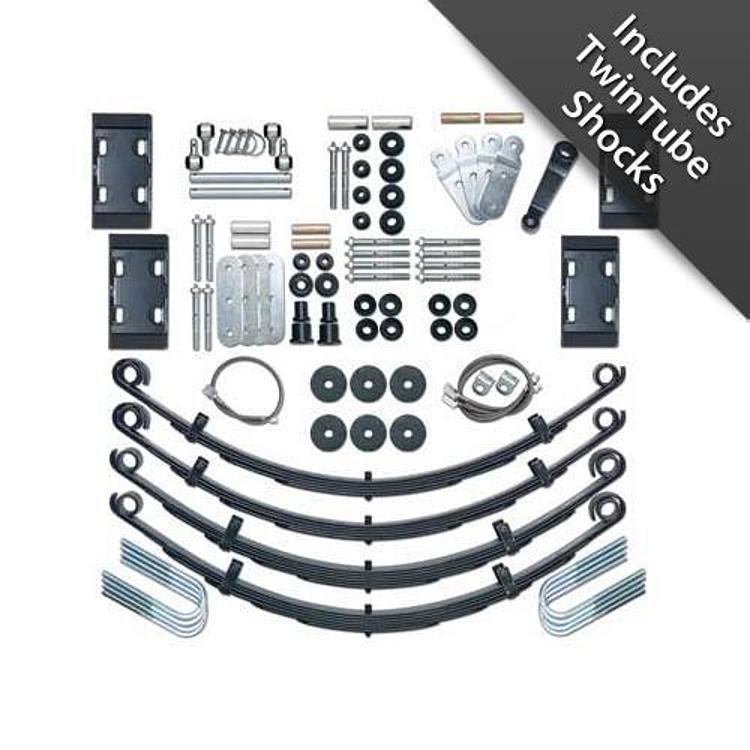

Twin tube shocks, the conversion shackle, and the Extreme-Duty spring-under components. Greaseable shackles and main eye bushings are part of the kit.

SKU: R/ERE5525T Category:

Specification

Shipping weight 244.25 lbs
Package dimensions 48.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RE5525T fit a 1978 Jeep CJ5?

Yes. The RE5525T fits the 1976–1983 Jeep CJ5, so a 1978 CJ5 falls within those years. Confirm the trim before ordering, since the fit covers Base, Golden Eagle, Laredo and Renegade.

Does the RE5525T include shocks?

Yes. It includes twin tube shocks. The kit also includes stainless steel brake lines and sway bar disconnects, so the shocks are part of the complete package.

Is the conversion shackle for the front or the rear?

The conversion shackle is for the front. It upgrades the CJ to 2.5-inch wide leaf springs at the front, and the kit's greaseable shackles and main eye bushings are fitted alongside it.

How often should the shackles and bushings be greased?

Grease the shackles and main eye bushings whenever the vehicle is serviced, and sooner after muddy or wet trail use. Look for dry joints, squeaks or play in the bushings as signs they need attention. Regular greasing keeps the springs moving smoothly and reduces wear on the pins.

Do lift springs affect the brakes?

They can. Higher spring height lengthens the brake lines, so check that the stainless steel lines are not under strain at full suspension travel. Inspect the pads and rotors on a regular schedule, since added height changes how weight shifts under braking.
