Overview
The Rubicon Express JKR424 is a 4.5 inch 4-link front and radius rear extreme duty long arm kit for the Jeep Wrangler JK. It is sold without shocks and forms part of the Rubicon Express JK suspension line.
The adjustable chromoly upper and lower control arms work with Super-Flex joints and PT-MEG Super-Ride bushings. The arms are built for hard use over rough ground, and the joints are designed so they do not limit articulation.
The kit includes a full width heavy-duty transmission crossmember, which is designed to add durability and frame rigidity. Installation does not require welding.
Optional upgrades include a robust belly pan and a CNC machined steering knuckle. The kit can be ordered in 3.5, 4.5 and 5.5 inch lift heights, with optional monotube shocks, and it is made in the USA.
Key features
- 4.5 inch lift height
- 4-link front and radius rear long arm system
- Adjustable chromoly upper and lower control arms
- Super-Flex spherical ball joints
- PT-MEG Super-Ride bushings
- Full width heavy-duty transmission crossmember
- No welding for installation
Driveline angles at 4.5 inches
A 4.5 inch long arm lift moves the axles and changes driveline geometry more than a smaller kit would. Check pinion and driveline angles after installation, and recheck them after the first few drives as bushings settle. Driveshaft angle problems often show up as vibration or U-joint wear.
Long arms rely on the bushings and joints to keep the axle positioned correctly under load. Super-Flex spherical ball joints and PT-MEG Super-Ride bushings should be inspected for play and cracking at regular service intervals. Inspect the arms after hard impacts, since any bend can shift alignment.
Because the crossmember is part of the install, check its mounting bolts after the first trail runs. Keep the transmission mounts snug and inspect the skid area for contact. Shock choice also affects how the axle moves, so match shocks to the long arm geometry before the lift is finished.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKR424 |
| Lift height | 4.5 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme duty 4-link front and radius rear long arm |
| Control arm material | Chromoly, adjustable |
| Ball joints | Super-Flex spherical |
| Bushings | PT-MEG Super-Ride |
| Crossmember | Full width heavy-duty transmission |
| Shocks | Not included |
| Warranty | Rubicon Express Advantage Lifetime Warranty |
| Made in | USA |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), since it belongs to the Rubicon Express JK suspension line.
Other generations are not covered, including the JL, the Gladiator, and the TJ and LJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4.5 inch lift changes the axle location and driveline angles, so check the pinion and driveline angles after installation. Shocks are not included, so choose them with the new ride height in mind.

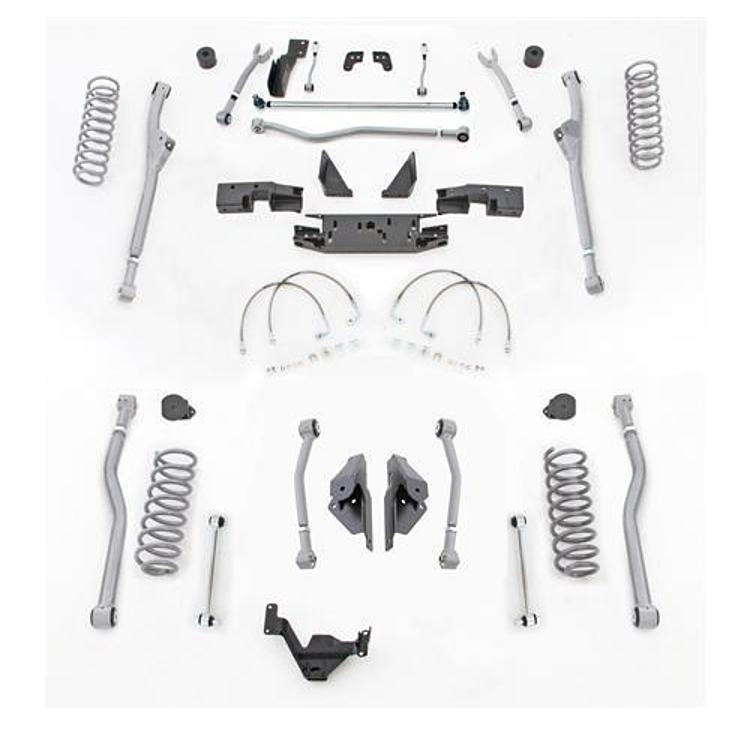

What’s included
4-link front and radius rear long arm components, adjustable chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-MEG Super-Ride bushings and a full width heavy-duty transmission crossmember.
Not included: shocks, which are sold as an optional upgrade.
