Rubicon Express 3.5 Inch Progressive Coil Extreme Duty Long Arm Lift Kit with Monotube Shocks – JK4343PM

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch progressive coil long arm lift with monotube shocks included
  • 4-link front and 3-link rear extreme-duty long arm system
  • Adjustable chromoly control arms with Super-Flex spherical ball joints
  • Progressive coils with a longer extended length and smooth ride over small bumps
  • Fits the 2007-2018 Jeep Wrangler (JK) with progressive coils and monotube shocks

Description

Overview

The Rubicon Express JK4343PM is a 3.5-inch extreme-duty long arm lift kit with progressive coils and monotube shocks. It fits the 2007-2018 Jeep Wrangler (JK) and belongs to Rubicon Express’s JK suspension line. It uses the same chromoly control arm set, Super-Flex joints and PT-Meg Super-Ride bushings as the JK4343P, with monotube shocks added.

Progressive coils have a longer extended length than linear coils, which maximizes droop travel. Their spring rate increases gradually, giving a smoother ride over small bumps and enough rate to limit harsh bottoming at full compression. The full-width transmission crossmember adds rigidity, and the install needs no welding.

Key features

  • 3.5-inch lift height
  • Progressive coil springs
  • Monotube shocks included
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Extreme-duty 4-link front and 3-link rear long arm layout

Progressive springs on a long arm

Progressive springs change rate as they compress, so the ride starts soft and gets firmer deeper into the stroke. On a long arm system that can help the suspension stay composed over small bumps and still resist harsh bottoming at full compression. The spring shape and length also affect how far the axle can droop, which matters on uneven ground.

Spring seats and isolators should be checked when the springs are installed, since a seated spring with the wrong height can change the ride. After the first drives, recheck the lift height and make sure the springs are sitting square in their seats. Over time, inspect the springs for cracked coils and sagging. Pair the spring check with the shocks and bump stops, because they share the load as the suspension moves.

Specifications

Brand Rubicon Express
Part number JK4343PM
UPC 700008140211
System type Extreme-duty 4-link front and 3-link rear long arm with progressive coils
Lift height 3.5 inches (chart range 3 to 4.99 inches)
Spring type Progressive coil
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Monotube, included

Vehicle fitment

Fits the 2007-2018 Jeep Wrangler (JK). The TJ, LJ and JL generations are outside this kit’s coverage. Confirm your vehicle’s year, model and trim before ordering.

The TJ, LJ and JL generations are not in this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 4-link front and 3-link rear arms change control arm angles and pinion geometry, so the alignment and driveline angles should be checked once the lift is installed.

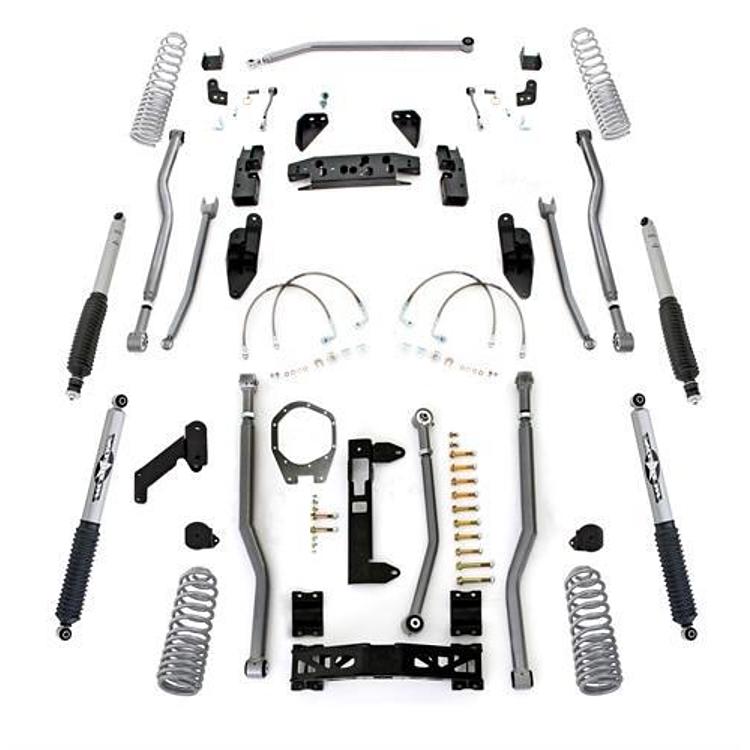

What’s included

The kit includes the adjustable chromoly control arms, progressive coil springs, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and monotube shocks.

The monotube shocks are included, so this version is the complete package with progressive coils and the same arm set as the JK4343P. Optional belly pan and steering knuckle upgrades remain available, and the kit gives a 3.5-inch lift.

The progressive coils are the spring design, and the monotube shocks finish the package with the same arm set.

SKU: R/EJK4343PM Category:

Specification

Shipping weight 303.95 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4343PM include shocks?

Yes. Monotube shocks are included with the progressive coil kit, so the shocks come with the set. The kit is the complete package with the same chromoly arm set as the JK4343P.

Which years does the JK4343PM fit?

It fits the 2007-2018 Jeep Wrangler (JK). Confirm your vehicle's year, model and trim before ordering. Progressive coils have a longer extended length than linear coils, which affects droop travel.

How do progressive coils differ from linear coils?

Progressive coils have a longer extended length than linear coils, which gives more droop travel. Their spring rate builds gradually, so the ride stays smooth over small bumps.

Can this kit be installed without welding?

Yes. Installation is designed without welding, and the full-width transmission crossmember supports that approach. Plan alignment checks after the arms are in place.

Do progressive springs need different maintenance than linear springs?

No special routine is needed. Inspect them the same way as any coil spring by checking for cracks, sagging and worn isolators during regular service, and recheck ride height after the first drives.
