Rubicon Express 3.5 Inch Standard Coil Lift Kit with Fox Performance Resi Shocks – RE7122FPR

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch standard coil lift kit with front and rear Fox Performance Resi shocks, RE7122FPR
  • Front and rear replacement coil springs and bump stops
  • Cam bolts for caster and pinion adjustment
  • Front adjustable track bar and rear track bar bracket
  • Extended sway bar end links
  • 2012 and newer models may require an exhaust modification or a front drive shaft

Description

Overview

The Rubicon Express RE7122FPR is a standard coil lift kit for the Jeep Wrangler JK. It comes with front and rear Fox Performance Resi shocks, which belong to the reservoir option of the FOX Performance Series.

The kit includes replacement coil springs at both ends, bump stops and cam bolts for setting caster and pinion angle. A front adjustable track bar and a rear track bar bracket are included, along with extended sway bar end links.

The lift height range is 2.5 to 3.5 inches. The FOX shocks are covered by the FOX warranty and are not eligible for the Rubicon Express Advantage Warranty.

Key features

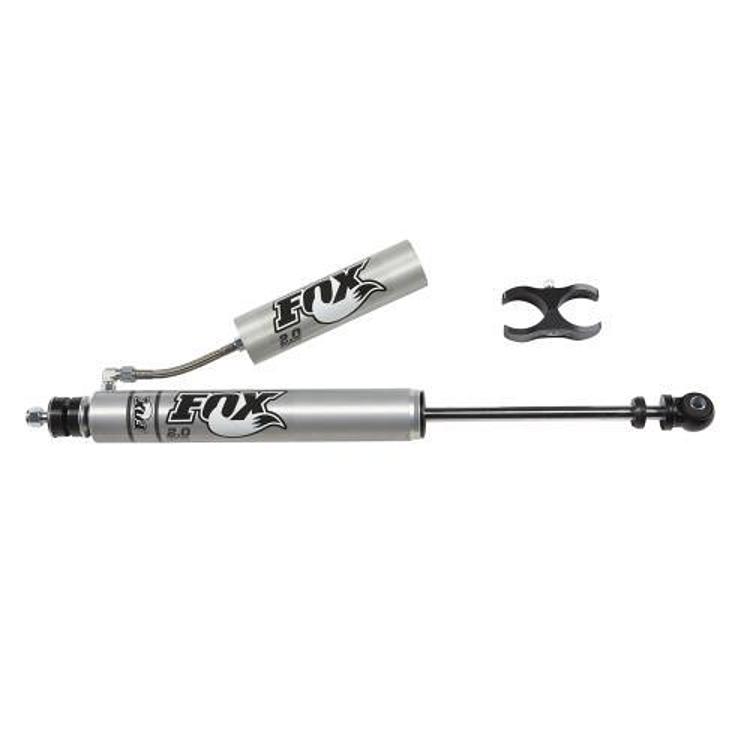

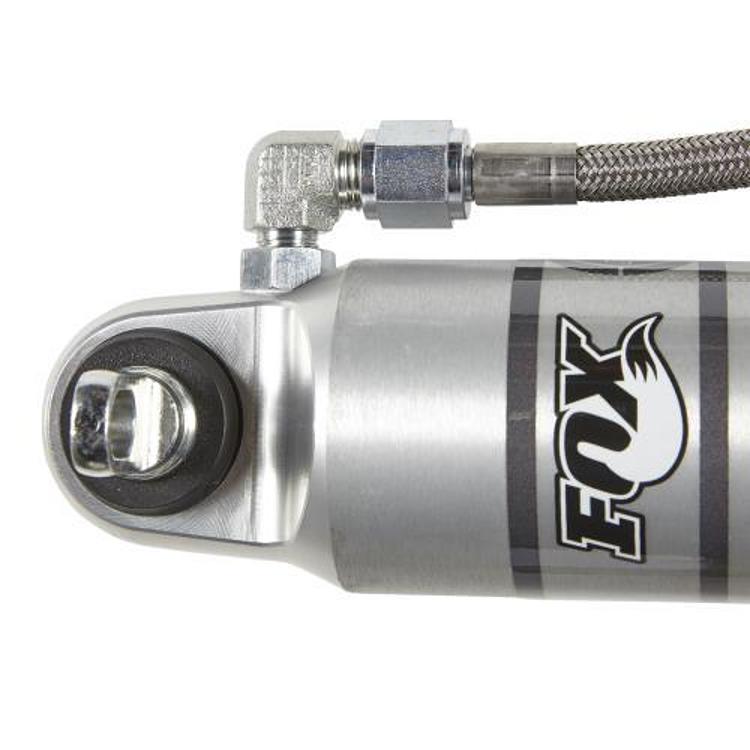

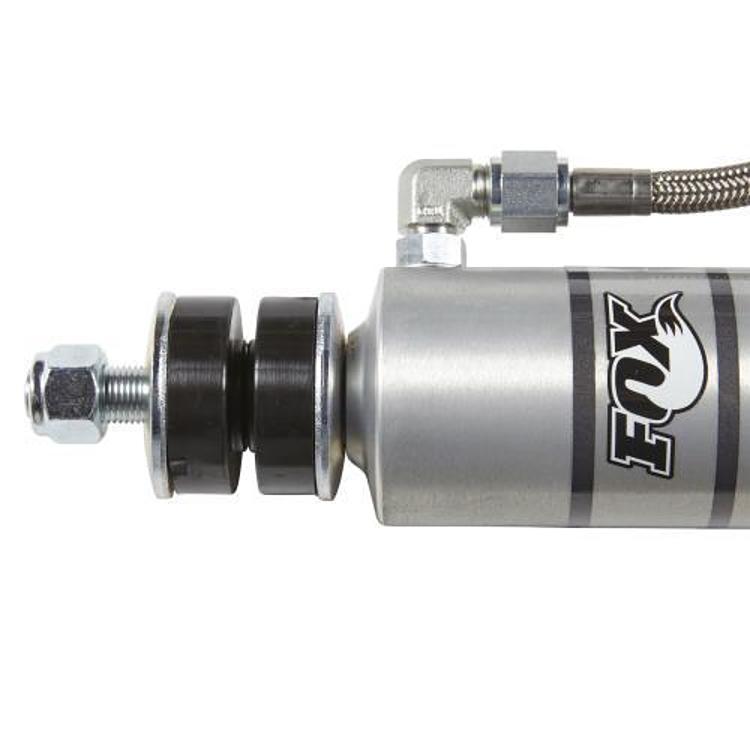

  • Front and rear Fox Performance Resi shocks
  • Front and rear replacement coil springs
  • Front and rear bump stops
  • Cam bolts for caster and pinion adjustment
  • Front adjustable track bar
  • Extended sway bar end links

Setting caster and pinion

Caster and pinion angles decide how the driveline and steering behave after a coil lift. Cam bolts give a way to adjust those angles, which matter most when the lift changes the geometry of the front and rear axles. Setting them with a measuring tool, instead of guessing, gives a more predictable ride.

Wear points should be checked before the bolts are torqued. Bump stops that have crumbled, bushings that have split, and track bar ends with play can all change the way the axle sits. Replacing those parts together keeps the new springs working as the lift intended and makes the alignment easier to hold.

  • Measure caster before final tightening
  • Replace split bushings during install
  • Recheck pinion angle after long trips

Specifications

Brand Rubicon Express
Part number RE7122FPR
Kit type Standard coil lift kit
Lift height range 2.5 to 3.5 inches
Shocks Fox Performance Resi, front and rear
Springs Front and rear replacement coil springs
Bump stops Front and rear
Track bar Front adjustable, with rear track bar bracket
Sway bar Extended end links
Warranty FOX warranty on the shocks

Vehicle fitment

The kit is placed with the 2007–2018 Jeep Wrangler (JK), which covers the most popular Jeep JK suspension systems.

Other generations are not part of this fit, including the JL, the Gladiator, and the older TJ and LJ. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Models from 2012 and newer may require an exhaust modification or a front drive shaft. Set caster and pinion with the cam bolts, then have the alignment checked.

What’s included

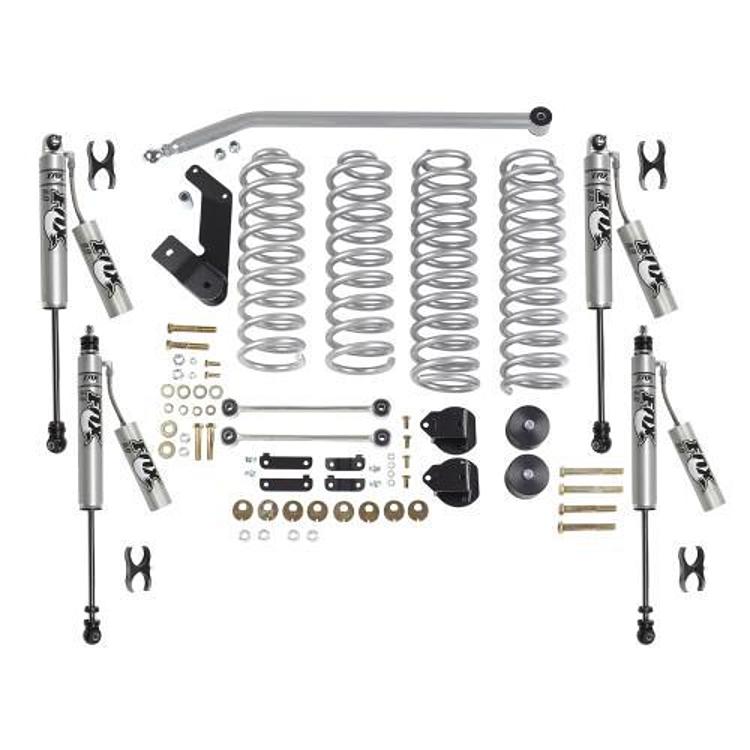

Front and rear replacement coil springs, bump stops, cam bolts, a front adjustable track bar, a rear track bar bracket, extended sway bar end links and front and rear Fox Performance Resi shocks.

SKU: R/ERE7122FPR Category:

Specification

Shipping weight 109.85 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7122FPR fit a Jeep Wrangler JK?

Yes. The kit fits the Jeep Wrangler JK, covering the most popular JK suspension systems from 2007 through 2018. Confirm the year and model, and check the 2012 and newer exhaust or drive shaft note.

What lift height is it?

The listed range is 2.5 to 3.5 inches, and the kit is sold as a 3.5 inch standard coil lift with replacement springs at both ends.

What does the cam bolt set do?

The cam bolts are included for caster and pinion adjustment, so those angles can be set after the kit is installed.

Can I add a larger tire without other changes?

Larger tires add load to the axles, steering and shocks, so review the setup before fitting them. Gearing and rubbing clearance often need checking too. A tire change is easier to manage when the lift parts are already set.
