Overview
The Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Mono Tube Shocks (part number RE7224M) is a long arm lift for the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon. It includes mono tube shocks, and the stated lift height range is 3 to 4.99 inches.
A long arm design replaces the factory suspension geometry with longer control arms. The longer arms add stability and trail traction compared with a short arm system, and the design is built for LJ Unlimited models.
This version includes mono tube shocks for the 3 to 4.99 inch lift range. The kit also has tuned lift springs and a rear track bar. Check brake hose length before installing the long arms, since the lift changes the ride height.
Key features
- Mono tube shocks included
- Chromoly long control arms
- PT-Meg Super-Ride bushings
- Super-Flex spherical ball joints on adjustable control arms
- Tuned lift springs
- Rear track bar
Brake hoses after a lift
Brake hoses are routed to the wheels through the suspension’s travel, so a lift can change how much slack they have at full droop and full compression. Hoses that were comfortable at stock height can become tight, and tight hoses are more likely to chafe on a frame edge or a control arm. Checking them is a small job that prevents a larger problem later.
Look over each hose for cracks, bulges and seeping fittings after installation and after each trail trip. Hose clamps and brackets should be checked at the same time, since loose hardware lets the hose move against nearby parts. When brake lines are replaced, bleed the system and test the pedal before driving on public roads.
- Slack at full droop and compression
- Chafe marks on frame or arm edges
- Fittings dry after a bleed and test
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7224M |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme-Duty long arm |
| Shock absorbers | Mono tube, included |
| Fitment type | Direct fit |
Vehicle fitment
Covered models are the 2004–2006 LJ Unlimited and Unlimited Rubicon. The 2-door LJ and the TJ, JK and JL Wranglers fall outside that coverage.
The 2-door LJ and the TJ, JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The mono tube shocks come with the kit, so the mounts and shock length only need checking. Confirm the alignment and driveline angles after installation. Check the rear track bar bracket fit before final torque. Check the track bar and shock clearances once the lift is in.
Check the track bar bracket fit before final torque.
What’s included

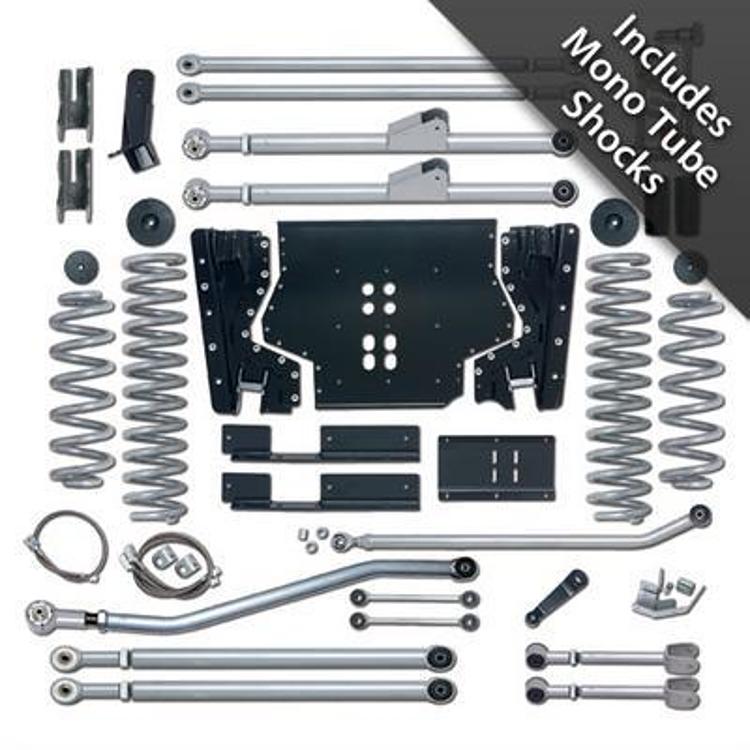

Mono tube shocks, PT-Meg bushings, chromoly long arms, Super-Flex spherical ball joints, tuned lift springs, a rear track bar and a three-piece belly pan.
